Specifications
Drilling Mud Decanter Centrifuge:
1. Drilling Mud
2. Automatic continuous operation
3. PLC control
4. Inverter driving
LW Drilling Mud Continuous Horizontal Decanter Centrifuge: Drilling Mud Decanter Centrifuge, Continuous centrifuge& decanter centrifuge

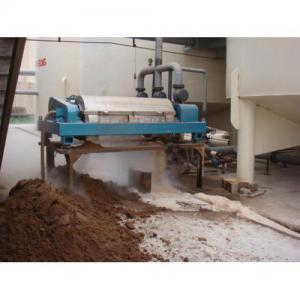

Drilling Mud Solution
LW drilling mud decanter centrifuges are designed specifically to remove unwanted solids and fine particles from virtually all kinds of used frilling mud, including those based on water/synthetics and conventional oil-based drilling fluids.
Drilling muds are based on water, oil pr polymer with a composition of various additives such as flocculents, surfactants, detergents and more. By means of modern drilling mud system includes decanter centrifuge, cutting dryers, shakers, etc, everything brought into the mud by the frilling process will be separated. The clarified mud will be returned to the drilling rig.
Working Principle

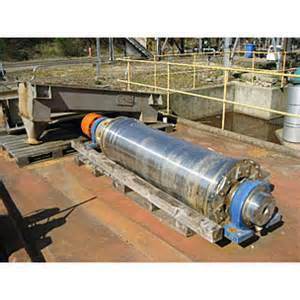

Separation takes place in the horizontal bowl equipped with a scroll conveyor. The drilling mud is feed into the bowl through a stationary inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of bowl. The conveyor rotates in the same direction as the bowl, but a different speed, thus moving the solids towards the conical end of the bowl.
Design Feature

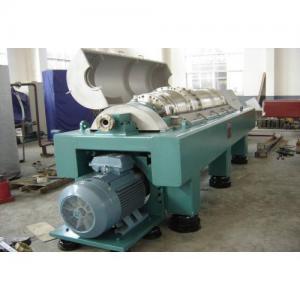

Vertical base design and symmetrical arrangement of motor and bowl assembly, that ensures stable operation and less vibration.
Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Dual motor drive makes bowl speed and conveyor speed adjustable.
Optional planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment.
Multiple safety protection: Bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
| Type | Diameter of the drum (mm) | speed rotation of the drum (r/min) | separation factor | capacity (M3/H) | main motor (KW) | auxiliary motor (KW) | Dimension (L*W*H) | Machine weight (Kg) | Formation of differential mechanism |
| LW250*900 | 250 | 5400 | 4000 | 1-5 | 11 | 4 | 1800*1200*600 | 1050 | Planet gear |
| LW360*1200 | 360 | 4200 | 3550 | 3-12 | 15 | 7.5 | 2600*1580*1040 | 2100 | Planet gear |
| LW360*1500 | 360 | 4200 | 3550 | 3-14 | 22 | 7.5 | 2900*1600*1040 | 2600 | Planet gear |
| LW420*1750 | 420 | 4000 | 3750 | 6-30 | 37/45 | 7.5/11 | 3120*1580*1070 | 3500 | Planet gear |
| LW420*2100 | 420 | 4000 | 3750 | 6-35 | 45 | 11/18.5 | 3450*1580*1070 | 4100 | Planet gear |
| LW500*2000 | 500 | 3800 | 4000 | 10-40 | 45/55 | 11/18.5 | 3600*2300*1400 | 6500 | Planet gear |
| LW500*2500 | 500 | 3800 | 4000 | 12-45 | 55/75 | 15/18.5 | 4100*2300*1400 | 7200 | Planet gear |
| LW550*1900 | 550 | 3200 | 3154 | 13-50 | 45/55 | 15 | 3400*1810*1110 | 4600 | Planet gear |
| LW550*2400 | 550 | 3200 | 3454 | 13-55 | 55/75 | 18.5 | 3900*1810*1110 | 5600 | Planet gear |
| LW650*2000 | 650 | 2650 | 2500 | 15-65 | 55/75 | 18.5 | 4000*2300*1400 | 7100 | Planet gear |
| LW450*1800 | 450 | 4000 | 4028 | 10-35 | 45 | 18.5 | 4400*1350*1460 | 4200 | Planet gear |
| LW450*2100 | 450 | 4000 | 4028 | 10-40 | 45 | 18.5 | 4700*1350*1460 | 4600 | Planet gear |
| LW500*2200 | 500 | 3800 | 4039 | 15-45 | 55 | 22 | 4400*1400*1480 | 5000 | Planet gear |
| LW500*2550 | 500 | 3800 | 4039 | 15-45 | 75 | 22 | 4700*1400*1480 | 5500 | Planet gear |
| LW550*2200 | 550 | 3200 | 3151 | 18-55 | 55 | 22 | 4500*1500*1500 | 5300 | Planet gear |
| LW550*2600 | 550 | 3200 | 3151 | 18-60 | 75 | 22 | 5000*1500*1500 | 7500 | Planet gear |
| LW650*2200 | 650 | 2650 | 2553 | 20-65 | 75 | 22 | 4700*650*1650 | 7600 | Planet gear |
| LW650*2600 | 650 | 2650 | 2553 | 20-70 | 90 | 37 | 5100*1650*1650 | 9100 | Planet gear |
| LW720*2000 | 720 | 2540 | 2600 | 25-75 | 90 | 37 | 4700*1730*1750 | 11000 | Planet gear |
| LW720*2500 | 720 | 2540 | 2600 | 25-80 | 132 | 37 | 5200*1730*1750 | 12800 | Planet gear |
| LW800*2000 | 800 | 2000 | 1790 | 35-100 | 132 | 45 | 4750*1800*1830 | 14000 | Planet gear |
| LW1000*2000 | 1000 | 1800 | 1812 | 40-120 | 250 | 45 | 4800*2000*2000 | 17800 | Planet gear |
FAQ
1.Is your price competitive?
My price is not the lowest in China as for high quality,but we promise for the same quality and collocation,my price is the most favorite,for the same price ,my quality is definitely superior.to other brand.
2.Do you have OEM service?Do you supply the parts?
Yes,we do,as long as you provide us your drawing and detailed requirements.
3.Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia,Brazil,USA etc,you are warmly welcomed to work as our agent,at this moment,we have no service centers abroad,but we can provide overseas spot and online technical service in time.
4.How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection,as long as you provide us the detailed processing material characteristics.
5.What payment mode you accept?
TT , LC at sight or others .
Note: The prodcution capacity is based on water only, just for reference. Different feeding solution will of different production capacity.
If you have special requirements, please feel free to contact us.
