Introduce
LW Horizontal Decanter Centrifuges feature continuous feeding and discharge . This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
Advantage
1. This liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration.
2. Dual eletric motor control enables stepless speed adjustment on bowl and spiral components.
3. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Moreover, main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual- phase steel, whereby offering exceptional speed limits and separation ratio.
4. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids.
5. Multipe protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion- proof protection, motr overload and over heat protection.
6. JG type rubber shock absorber requires no anchor bolts.
Application
1. industrial and municipal wastewater treatment
2. oil&gas drilling mud/fluid control
3. washing, separation and dewater of starch
4. mycelium and zymtotic fluid separation for antibiotic
5. dewatering of soybean and wheat protein
6. dewatering of fish power and fish meat
7. dewatering of vinasse
8. clarification and extraction of fruit juice
9. separation and purification for animal and vegetable oil
10.production and purification of olive oil, palm oil, avcado oil
11.separation and purification for coal tar
12.grading of kaolin and grapgite
13.grading and dewatering of dyestuff and pigment
14.froth flotation for cleaned coal and dewatering of coal mud
15.grading and dewatering of minerals

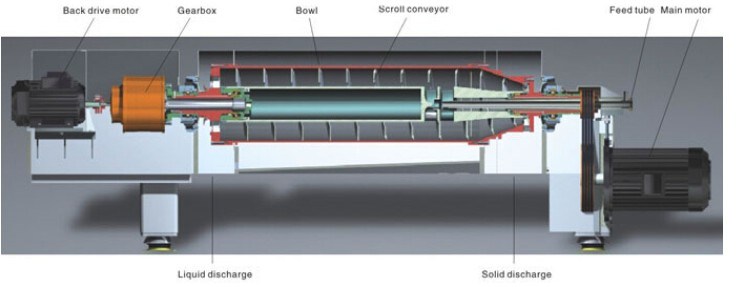

Structural Diagram
Technical Paramter:
Model | Technical parameter | motor power | outline dimension(mm) | Machine weight (KG) | |||||
| (Diameter)mm | Rotation speed rpm | Length mm | Separation factor G | capacity M3/h | Main motor KW | Vice motor KW | Dimension: L×D×H | ||
| LW250×1000 | 250 | 3600 | 1000 | 1813 | 1-3 | 7.5/11 | 4/5.5 | 2065×1050×800 | 1100 |
| LW360×1200 | 360 | 3500 | 1200 | 2467 | 3-8 | 11/18.5 | 7.5/11 | 2600×1500×850 | 1900 |
| LW360×1500 | 360 | 3500 | 1500 | 2062 | 3-8 | 11/18.5 | 7.5/11 | 2800×1400×850 | 2000 |
| LW420×1750 | 420 | 3200 | 1750 | 2406 | 4-20 | 30/37 | 11/18.5 | 3120×1580×1050 | 3000 |
| LW450×1600 | 450 | 3200 | 1600 | 2578 | 5-25 | 30/45 | 11/22 | 3780×1050×1180 | 3500 |
| LW450×1800 | 450 | 3200 | 1800 | 2578 | 5-25 | 30/45 | 11/22 | 3985×1050×1180 | 3600 |
| LW450×2000 | 450 | 3000 | 2000 | 2266 | 5─25 | 30/45 | 11/22 | 4320×1050×1180 | 3800 |
| LW500×1800 | 500 | 3000 | 1800 | 2517 | 10-30 | 37/55 | 15/22 | 4200×1110×1200 | 4300 |
| LW500×2100 | 500 | 3000 | 2100 | 2517 | 10-30 | 37/55 | 15/22 | 4500×1110×1200 | 4500 |
| LW550×1800 | 550 | 3000 | 1800 | 2769 | 10-35 | 45/55 | 18.5/22 | 4380×1160×1230 | 4800 |
| LW550×2200 | 550 | 2800 | 2200 | 2412 | 10-35 | 45/55 | 18.5/30 | 4780×1160×1230 | 5000 |
| LW650×1750 | 650 | 2000 | 1750 | 1454 | 20-50 | 75/90 | 30/37 | 4576×1300×1250 | 6000 |
| LW650×2000 | 650 | 2000 | 2000 | 1454 | 20-50 | 75/90 | 30/37 | 4900×1300×1250 | 6200 |
| LW800×2000 | 800 | 1800 | 2000 | 1450 | 40-100 | 90/110 | 45/55 | 6052×1460×2100 | 10000 |
| LW1000×2350 | 1000 | 1600 | 2350 | 1432 | 50-140 | 110/132 | 55/75 | 6850×1860×2300 | 12800 |

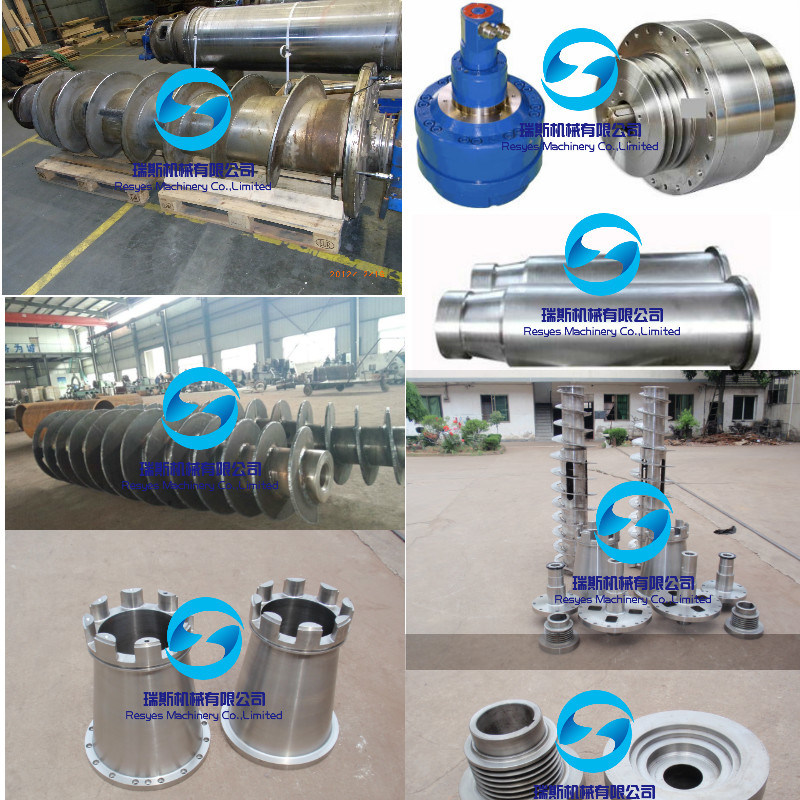

More parts show of the decanter centrifuge:
Productive process

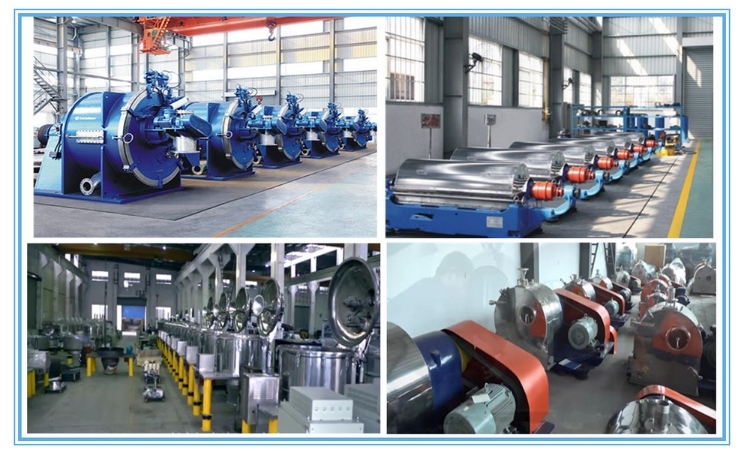

Workshop
Company Profile
Our services As Follows:
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.
Contact person: Andy
Hot line: +86-13804282806
China
