Automatic Screw Discharge Decanter Centrifuge for Sludge Dewatering
A decanter centrifuge separates solids from one or two liquid phases in one single continuous process
Decanter Centrifuge
Continuous centrifuge
Super centrifuge
High efficient centrifuge
Centrifuge with CE, ISO
The Decanter Centrifuge is a specially developed continuous Solid-Bowl horizontal Scroll Discharge centrifuge for effective separation of slurries into liquid-solid phases, liquid liquid solid phases, with the application of centrifugal sedimentation principle. A decanter centrifuge separates solids from one or two liquid phases in one single continuous process.
The Decanter Centrifuge is done using centrifugal forces that can be well beyond 3000 times greater than gravity. When subject to such forces, the denser solid particles are pressed outwards against the rotating bowl wall of the centrifuge, while the less dense liquid phaseforms a concentric inner layer. Different dam plates are used to vary the depth of the liquid the so called pond as required. The sediment formed by the solid particles is continuously removed by the screw conveyor, which rotates at a different speed than the bowl of the centrifuge. As a result, the solids are gradually "ploughed"out of the pond and up the conical"beach". The centrifugal force compacts the solids and expels the surplus liquid. The dried solids then discharge from the bowl. The clarified liquid phase or phases overflow the dam plates situated at the opposite end of the bowl. Baffles within the centrifuge casing direct the separated phases into the correct flow path and prevent any risk of cross-contamination. The speed of the screw conveyor may be automatically adjusted by use of the variable frequency drive in order to adjust to variation in the solids load. Centrifuge for Liquid-solid phases The Centrifuge is for continuous separation of solids from liquids Such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, classification of fine pigments, etc. Stock liquid is brought into the bowl of the centrifuge through a centripetal pump. Solid matter settles into outer larger by the centrifugal force. The settled sediment is pushed into the drying area at the cone of the bowl by rotary difference between spiral and bowl and discharged from the outlet. The clarified liquid flows out from the liquid outlet centripetal pump. Centrifuge for Liquid-Liquid-solid phases. The Centrifuge is for continuous separation of 3-phases systems consisting of two immiscible liquids and solids. Stock liquid is brought into the bowl of the centrifuge through a centripetal pump. Solid matter settles into outer larger by the centrifugal force. The settled sediment is pushed into the drying area at the cone of the bowl by rotary difference between spiral and bow land discharged from the outlet. Because of the different gravity of emulsion of liquid phases in the bowl, the light liquid and the heavy liquid are separated by the baffle at the cylinder end of the bowl, light liquid flows out from the light liquid outlet through the centripetal pump and heavy liquid flows out from the heavy liquid outlet.

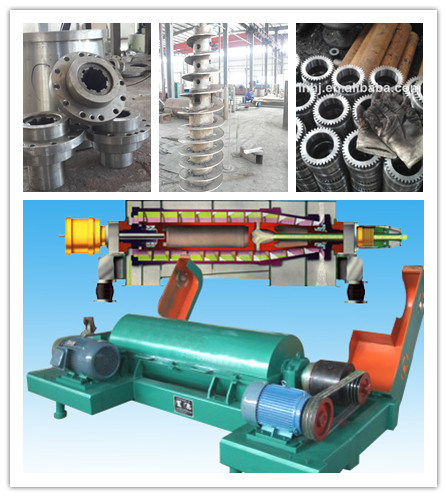

Structure Drawing :

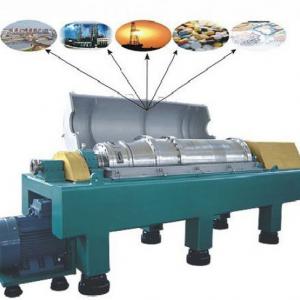

Our company Mode LW series decanter centrifuge can apply for various waste water or oil , liquid treatment .
The Decanter centrifuge can be used for the pre-treatment for the algae biomass for the disk separator or tubular separator thus it effective higher the disk centrifuge or tubular separator capacity performance .
The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Approximately 80 to 90 % of the oil is recovered.
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor

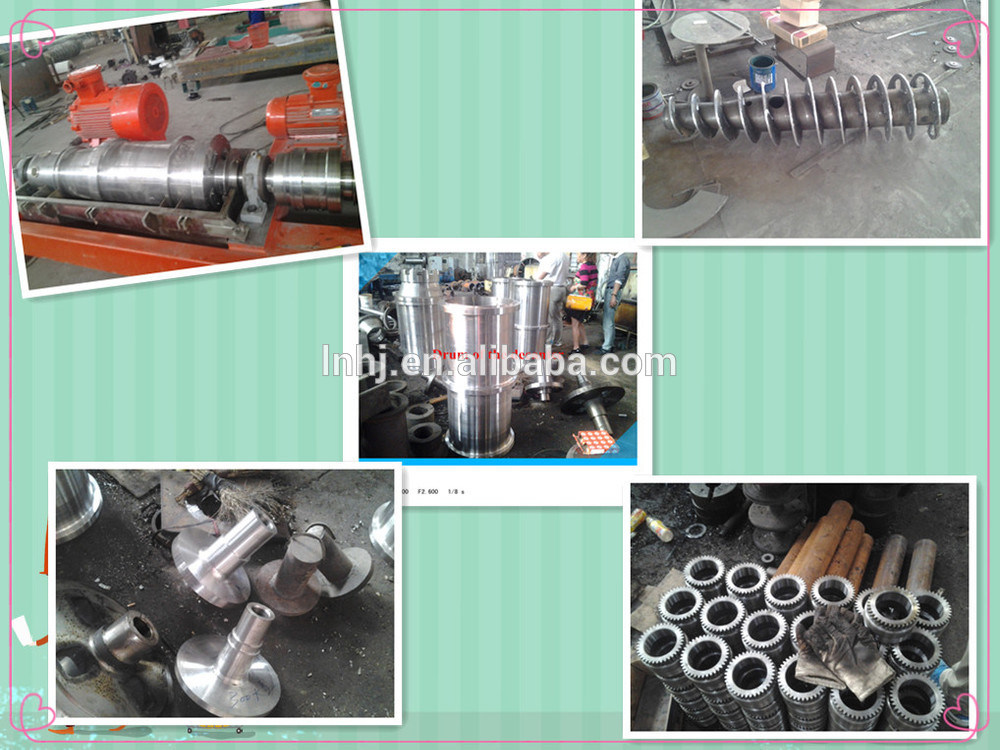

Assemble Parts :
If you have any questions about the machine ,please don't hesitate to contact with me ,thanks .
A decanter centrifuge separates solids from one or two liquid phases in one single continuous process
Decanter Centrifuge
Continuous centrifuge
Super centrifuge
High efficient centrifuge
Centrifuge with CE, ISO
The Decanter Centrifuge is a specially developed continuous Solid-Bowl horizontal Scroll Discharge centrifuge for effective separation of slurries into liquid-solid phases, liquid liquid solid phases, with the application of centrifugal sedimentation principle. A decanter centrifuge separates solids from one or two liquid phases in one single continuous process.
The Decanter Centrifuge is done using centrifugal forces that can be well beyond 3000 times greater than gravity. When subject to such forces, the denser solid particles are pressed outwards against the rotating bowl wall of the centrifuge, while the less dense liquid phaseforms a concentric inner layer. Different dam plates are used to vary the depth of the liquid the so called pond as required. The sediment formed by the solid particles is continuously removed by the screw conveyor, which rotates at a different speed than the bowl of the centrifuge. As a result, the solids are gradually "ploughed"out of the pond and up the conical"beach". The centrifugal force compacts the solids and expels the surplus liquid. The dried solids then discharge from the bowl. The clarified liquid phase or phases overflow the dam plates situated at the opposite end of the bowl. Baffles within the centrifuge casing direct the separated phases into the correct flow path and prevent any risk of cross-contamination. The speed of the screw conveyor may be automatically adjusted by use of the variable frequency drive in order to adjust to variation in the solids load. Centrifuge for Liquid-solid phases The Centrifuge is for continuous separation of solids from liquids Such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, classification of fine pigments, etc. Stock liquid is brought into the bowl of the centrifuge through a centripetal pump. Solid matter settles into outer larger by the centrifugal force. The settled sediment is pushed into the drying area at the cone of the bowl by rotary difference between spiral and bowl and discharged from the outlet. The clarified liquid flows out from the liquid outlet centripetal pump. Centrifuge for Liquid-Liquid-solid phases. The Centrifuge is for continuous separation of 3-phases systems consisting of two immiscible liquids and solids. Stock liquid is brought into the bowl of the centrifuge through a centripetal pump. Solid matter settles into outer larger by the centrifugal force. The settled sediment is pushed into the drying area at the cone of the bowl by rotary difference between spiral and bow land discharged from the outlet. Because of the different gravity of emulsion of liquid phases in the bowl, the light liquid and the heavy liquid are separated by the baffle at the cylinder end of the bowl, light liquid flows out from the light liquid outlet through the centripetal pump and heavy liquid flows out from the heavy liquid outlet.
| Model | Diameter (mm) | Bowl speed (rpm) | G-force | Capacity (m3/h) | Motor power (kw) | Weight (kg) | Overall dimension (L*W*H) (mm) |
2-PHSE DECANTER CENTRIFUGE | |||||||
| LW250 | 250 | 5500 | 3493 | 0.2-2 | 15/4 | 1020 | 2500*650*760 |
| LW355A | 355 | 4000 | 3175 | 1-10 | 18.5/7.5 | 2035 | 2765*920*1060 |
| LW355B | 355 | 4000 | 3175 | 1-15 | 18.5/7.5 | 2122 | 3065*920*1060 |
| LW355C | 355 | 4000 | 3175 | 1-25 | 22/7.5 | 2222 | 3365*920*1060 |
| LW420A | 420 | 3000 | 2113 | 10-30 | 55/15 | 4600 | 4080*1100*1420 |
| LW420B | 420 | 3600 | 3042 | 3-15 | 30/7.5 | 5165 | 3331*990*1066 |
| LW450 | 450 | 3300 | 2739 | 10-20 | 37/11 | 2739 | 4000*1120*1239 |
| LW500 | 500 | 3200 | 2860 | 5-45 | 55/11 | 4400 | 4489*1160*1350 |
| LW540 | 540 | 2800 | 2366 | 15-50 | 45/15 | 5290 | 4587*1285*1368 |
| LW620 | 620 | 3200 | 3555 | 15-60 | Hydraulic, 90 | 8000 | 4650*2010*1200 |
Structure Drawing :
Our company Mode LW series decanter centrifuge can apply for various waste water or oil , liquid treatment .
The Decanter centrifuge can be used for the pre-treatment for the algae biomass for the disk separator or tubular separator thus it effective higher the disk centrifuge or tubular separator capacity performance .
The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Approximately 80 to 90 % of the oil is recovered.
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor
Assemble Parts :
If you have any questions about the machine ,please don't hesitate to contact with me ,thanks .
Product Description :
