Description:
Corn starch,use disc separator to separate the starch and gluten,the gluten ,also called protein,will be coming from the light liquid phase while the crude starch milk discharged from the heavy liquid phase,,there is about 1%-2% gluten remains in the crude starch milk which needs to be deprived of . In the old fashioned process,during this process,3 disc separators would be adopted of the same model but the different diameter of the nozzles.For the large investment ,such group has been out of date.Today,for bigger capacity factory ,one set of disc separator with a 9-12 stage hydro cyclone to wash the starch milk and get the pure corn starch.commonly,1kg corn could obtain 0.7kg corn starch.
Competitive Advantages:
- The clear liquid is pumped out by centripetal pump, the concentration liquid is discharged continually by nozzles.
- with high speed,
- accurate dynamic balancing,
- long time with low vibration,
- safety and security.
- Continuous working
- Nozzle discharging
Working Principle

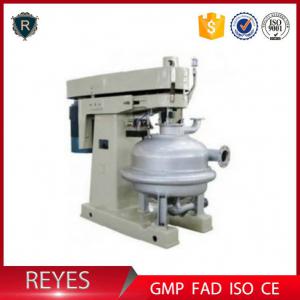

DPF type separator is mainly consists the feed device, rotating drum, cover, the body,horizontal shaft, vertical shaft, ground water pump, machine base, motor and other components.
When the rotating drum running a high speed, when the material enter into the disc separation area through the feeding pump
(1), under the action of the centrifugal force field, the starch particles slip to the inside wall of the drum, discharged from the nozzle
(2),and the light phase like protein and others will collect to the drum center, discharged out of the machine via centripetal pump
(3).The machine has a washing bottom pump, the washing water into the drum from the vertical center hole
(4), it is used for washing the yellow paste of the starch material, and effectively improve the quality of starch.
Technical Parameters:
| Model | 450 | 600 | 800 | 950 |
| Bowl Speed(rpm) | 5200 | 4800 | 3300 | 3050 |
| Capacity(T/H) | 20~35 | 30~60 | 22~115 | 45~225 |
| Power(kw) | 30 | 55 | 110 | 220 |
| Dimension L×W×H(mm) | 1284×1407×1457 | 2000×1000×2050 | 2800×1500×2200 | 3200×1800×3100 |
Working Diagram
Installation note:
1. Need sufficient space to install and maintainance
2. The install foundation should be smooth and fixed.
3. Between the foundation and frame, you have to install the vibration reducer gasket
4. All pipes connected with the machine should be the hose.
Application:
- wheat starch,
- cornstarch,
- sweet potato starch,
- cassava starch
- potato starch,
- bleaching earth
- recovering pulp
