Working Principle :
SGZ series centrifuge is a full automatic three-column scraper bottom discharge patch operaion filtering centrifuge with all process controlled by PLC system
Adopt PLC control ,the procedure setting in advance, automatic completing these operation : early feeding , filtering , washing , filtering , discharging .

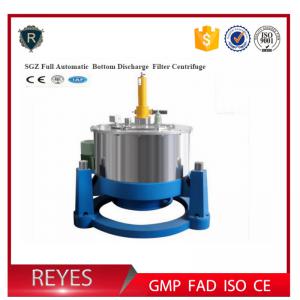

SGZ Full Automatic Bottom Discharge Filter Centrifuge
Main features:
1. PLC control, full automatic operation
2. AC motor controll the speed stepless, stable starting, adjustable separation factor.
3. The braking energy, non-contact braking mode, no friction dust pollution.
4. Fully sealed structure, sealers adopt silicon rubber, or fluorine rubber, centrifuge lumen nitrogen protection, which can realize airtight explosion-proof requirements.
5. Reasonable structure design, online cleaning system (sprinkler system), to ensure the cleanliness requirements, and meet with the GMP
6. Automatic movement components adopt pneumatic system, make the machine more clean.
7. Optional gas scraper to control the discharge with no residual filter cake in the drum.
8. Safety protection: speed detection, vibration protection, open cover protection, motor overload and overheat protection, scraper rotating, lifting machinery electricity gas dual control, the linkage locking of scraper and the basket
Technical parameter
More detailed technical parameters, please feel free to contact me
Items | Model | ||
SGZ800 | SGZ1000 | SGZ1250 | |
Basket dia(mm) | 800 | 1000 | 1250 |
volume(L) | 100 | 175 | 280 |
Max. Charge(kg) | 135 | 250 | 380 |
Rotation rate of Basket(r/min) | 1200 | 1000 | 960 |
Relative Centrifugal Force | 645 | 560 | 645 |
Power of Motor(kw) | 7.5 | 11 | 18.5 |
Overall Dimensions | 1900×1500×1900 | 2300×1900×2100 | 2587×1900×2300 |
Weight(kg) | 2300 | 3500 | 4400 |
Application
Apply to separate the suspended liquid , the solid can be powder, granular, crystal and fibrous. and the diameter of the solid larger than 0.01 mm. it also applies to dewater the work pieces like yarn, textiles and so on.
1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, and other chemical products.
2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar
3.Pharmaceutical:Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs
4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining
5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc
Optional Parameter
1 Material contacted the liquid to be separated :Corrosion resisting steel SUS304,316,316L,321 (N), Titanium(I), Metal coat (J), Rubber ,and so on
2 Motor Type: General motor or explosion proof motor or electromagnetic
3 Brake Mode: electric and mechanical
4Electric control mode: half/full automatic or PLC
5 Control of feeding /discharge speed mode: AC frequency stepless ,step, or electromagnetic
6 Design of Cover: sealed or sealed bucket-tipping
7: Operation of the Cover: gas cylinder,hydro-cylinder, electric cylinder or mechanical
8: Base:normal or no base installation
9 All the machines made match the GMP standard
10 Design and produce all customized.
