| When the drum driven the motor runs at full speed,the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum,where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet,while the solid phase is retained inside the drum.When the set time is reached,the feeding stops,After a given period of thime of separation and dehydration,the washing valve acts and the deaning liquid passes through the washing pipeinto the drum to wash the filter cake.Upon the completion of washing.further separation is conducted till the required degree of dryness of the cake is reached.Then discharging starts:the scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| APPLICATIONS: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

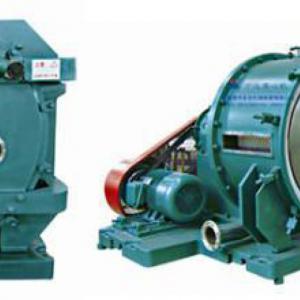

| Model GK centrifuge is the filter equipment characterized with continuous running,scraper discharging and intermittenent operation,applicable to the separation of the suspension liquid containing medium-sized granules or fine granules(0.01mm-5mm).it can also be used for the separating of the suspension liquid containing short fibers(with the fiber length less than 4mm),with the concentration of the suspension liquid being 10%-60%.with hydraulic and electric joint control mode adopted,this series of centrifuges are capable of high degree of automization,with such working processes as feeding,dehydrating,washing,discharging,etc,being operated manually or bu means of PLC for full automatic control.The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical,light industry,food,pharmacy,etc.for the separating of over 100 kinds of substances including ammonia sulphate,sodium sulphate,anthracene,boric acid,starch,pesticide,synthetic resin,potassium chloride,sodium bicarbonate,etc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAIN TECHNICAL PARAMETERS: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PRODUCT DRAWINGS: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ORDER NOTICE: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material: The parts contacting the processing material can be made of stainless,titanium alloy,Hastelloy,etc. Mode of Drive: Driven byordinary motor or by ant-explosion motor with frequency converter,etc. Mode of Braking: Mechanical braking or electric braking. Mode of Control: Semi-automatic,fully-automatic or PLC programmable contral,etc. It can designed and manufactured as per GMP Specifications. It is passible to decide on other technical requirements through consultation. |
