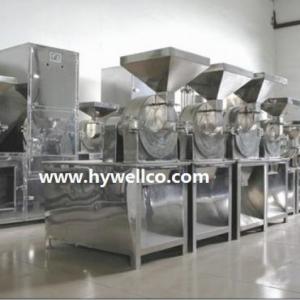

30b Series Pin Mill for Pharmaceutical Chemical and Food Industry
1. When order the 30B Series Pin Mill, Client need to supply the materials name.
2. When order the Pin Mill, Client need to supply the materials characteristic that include materials HP and so on.
3. When order the Universial Pin Mill, Client need to supply materials size of feeding and materials size after grinding.
30B Series Pin Mill Main Application:
30B Series Universial Pin Mill has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry, grain industry and so on.
30B Series Pin Mill Principle:

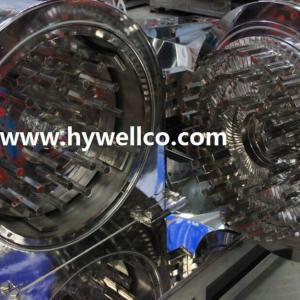

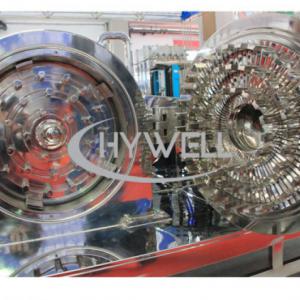

By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to"GMP" standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
1. When order the 30B Series Pin Mill, Client need to supply the materials name.
2. When order the Pin Mill, Client need to supply the materials characteristic that include materials HP and so on.
3. When order the Universial Pin Mill, Client need to supply materials size of feeding and materials size after grinding.
30B Series Pin Mill Main Application:
30B Series Universial Pin Mill has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry, grain industry and so on.
30B Series Pin Mill Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to"GMP" standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
| Model | Capacity | Size of input materials | Size of output materials | Power of motor | Overall dimension | Weight |
| 20B | 50-150kg/h | 6mm | 20-120mesh | 4kw | 1120x600x1750 | 480kg |
| 30B | 100-400kg/h | 10mm | 20-120mesh | 5.5kw | 1250x660x1750 | 550kg |
| 40B | 160-750kg/h | 12mm | 20-120mesh | 11kw | 1450x700x1750 | 680kg |
