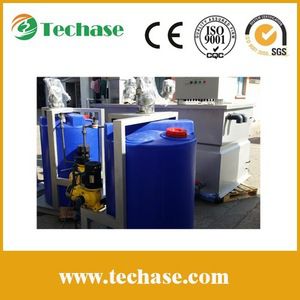

Powder dosing system for wastewater treatment of the sludge dewatering
Product Description
1. Automatic continuous operation
2. Compact design with flocculation and dewatering
3. Low power and water consumption
4. Low operation cost
5. No filter cloth, no clogging
6. No need for sludge thickener
7. Easy operation and maintenance
8. No vibration and noise
The traditional dewatering equipment are got block.Due to the movement of fixed rings and moving ring,Techase Multi-plate Screw Press allows continuous operation in 24 hours with no blocking.It is especially good at dealing oily sludge.Moreover,it doesn't need additional water to clean the equipment,so that there is no secondary pollution.
Model List of TECH Multi-Plate Screw Press
| Model | Dry Solids Capacity | Dimension | Weight | Motor Power | |||
| (kg-DS/hr) | (mm) | (kg) | (KW) | ||||
| (L) | (W) | (H) | Net | Operating | Total | ||
| TECH-101 | 3-5 | 2026 | 951 | 1170 | 200 | 300 | 0.44 |
| TECH-102 | 6-10 | 2026 | 1052 | 1170 | 300 | 450 | 0.62 |
| TECH-103 | 9-15 | 2029 | 923 | 1160 | 360 | 520 | 0.80 |
| TECH-104 | 12-20 | 1969 | 1317 | 1160 | 450 | 700 | 1.17 |
| TECH-201 | 9-15 | 2950 | 788 | 1507 | 400 | 750 | 0.70 |
| TECH-202 | 18-30 | 2950 | 1110 | 1507 | 600 | 900 | 0.95 |
| TECH-203 | 27-45 | 2992 | 1230 | 1507 | 850 | 1300 | 1.20 |
| TECH-204 | 36-60 | 3057 | 1508 | 1507 | 1100 | 1600 | 1.63 |
| TECH-301 | 30-50 | 3455 | 1050 | 1930 | 1000 | 1600 | 1.38 |
| TECH-302 | 60-100 | 3580 | 1398 | 1930 | 1500 | 2300 | 2.13 |
| TECH-303 | 90-150 | 3766 | 1636 | 1930 | 2000 | 3000 | 2.88 |
| TECH-304 | 120-200 | 4230 | 2114 | 2030 | 2500 | 3800 | 3.83 |
| TECH-401 | 90-150 | 4830 | 1245 | 2264 | 2000 | 3500 | 1.93 |
| TECH-402 | 180-300 | 5040 | 1606 | 2345 | 3000 | 4500 | 3.03 |
| TECH-403 | 270-450 | 5532 | 2038 | 2345 | 4000 | 7000 | 4.13 |
| TECH-404 | 360-600 | 5432 | 2636 | 2345 | 5000 | 7500 | 5.23 |
Application Industries
| Municipal wastewater / domestic wastewater | Petrochemical industry ( oily sludge) |
| Pharmaceuticals industry / pharmacy | Chemical |
| Food industry | Eletroplating industry |
| Textile | Printing and dyeing |
| Animal husbandry / livestock industry / livestock breeding | Kitchen waste |
| Industrial wastewater | Machining wastewater |
| Coking wastewater | Water purification industry |
| Refuse processing plant / garbage proposal | Landfill leachate / refuse leachate / percolated fluid |
| Coal chemical industry | Biotechnology / bioengineering / Biological Engineering / bioengineering |
| Animal slaughter / animal butcher | Rubber |
| Paper making | Gelatin |
| Recycled water / reclaimed water | Marsh gas / methane |
