Variable range high quality ceramic capacitive pressure transmitter

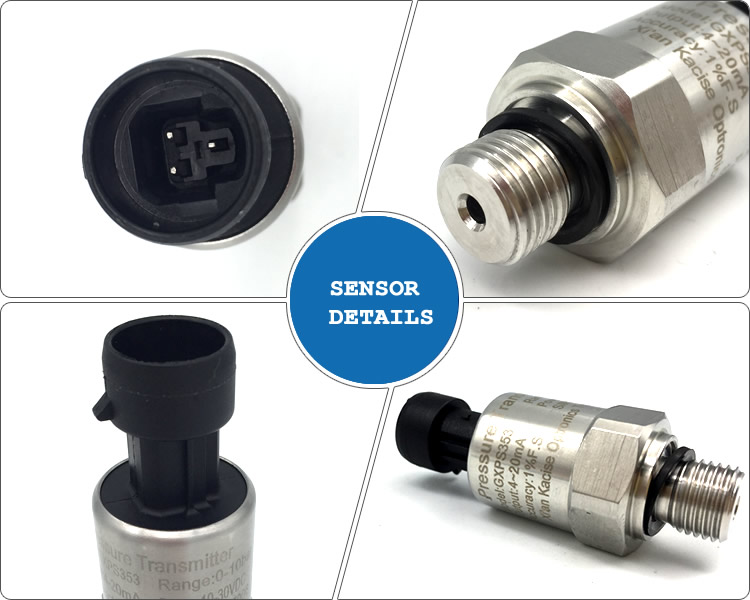

1. Introduction of GXPS pressure sensor
Introduction of GXPS liquid and air pressure sensor
The GXPS pressure sensor has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of sensors which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure. Besides, our engineers team can customize various of products accordding to your requirements.
2. Parameters
Spec. | Value | |
Pressure range | 0~5bar......50bar, 0~2bar......600bar | |
Load pressure | 1.5times nominal value pressure (1.5X) | |
Rupture pressure | 3times nominal value pressure (3X) | |
Accuracy | ±0.5%F.S, ±1.0%F.S , ±2.0%F.S | |
Stability | Typical value 0.5%F.S, Max. value: 1%F.S | |
Operating temperature | -40°C~120°C | |
Compensation temperature | -10°C~80°C | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Electrical performance | 2 wire system | 3 wire system |
Output signal | 4~20mA | 0.5~4.5V |
Power supply | 10~30Vdc | 10~30Vdc |
Load pressure | (U-10)/0.02(Ω) | >100kΩ |
Insulation | >100M @Ω50V | |
Electric strength | 500V@60 second | |
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |
Pressure durable | 2×106pressure circle @25°C | |
Electrical connection | Packard, protection: IP65 | |
Pressure port | G1/4, NPT1/4, 7/16-20UNF | |
Pressure type | G, | Response time: 10ms |
Certificate | Safe explosion-proof, RoHS, CE certificate | |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
3. Features
1). Accuracy 1~4%F.S
2). High stability, high reliability
3). Imported German ceramic core body
4). Digital calibration
5). Packard connector
6). Various of pressure port selection
7). Zero can be arbitrarily displaced
8). CE, and RoHS Compliant
4. Apllications
1). Compressor
2). Floor house water supply
3). Hydraulic control
4). Air conditioning unit
5). Automobile engine
6). Automatic detection system
7). Hydraulic unit

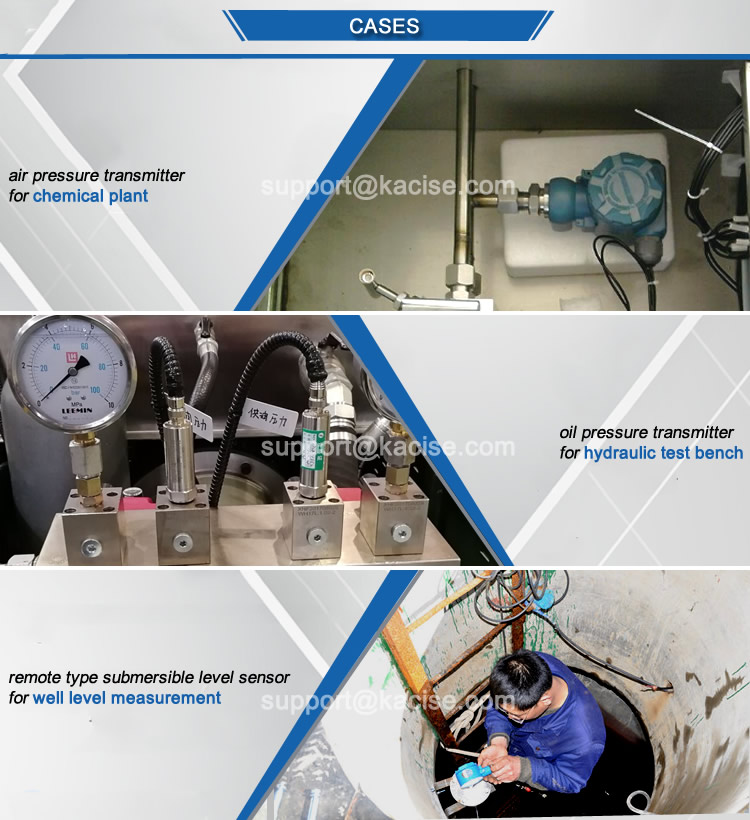

I. The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.
II. The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,
III. Help our customer cut the cost obviously.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

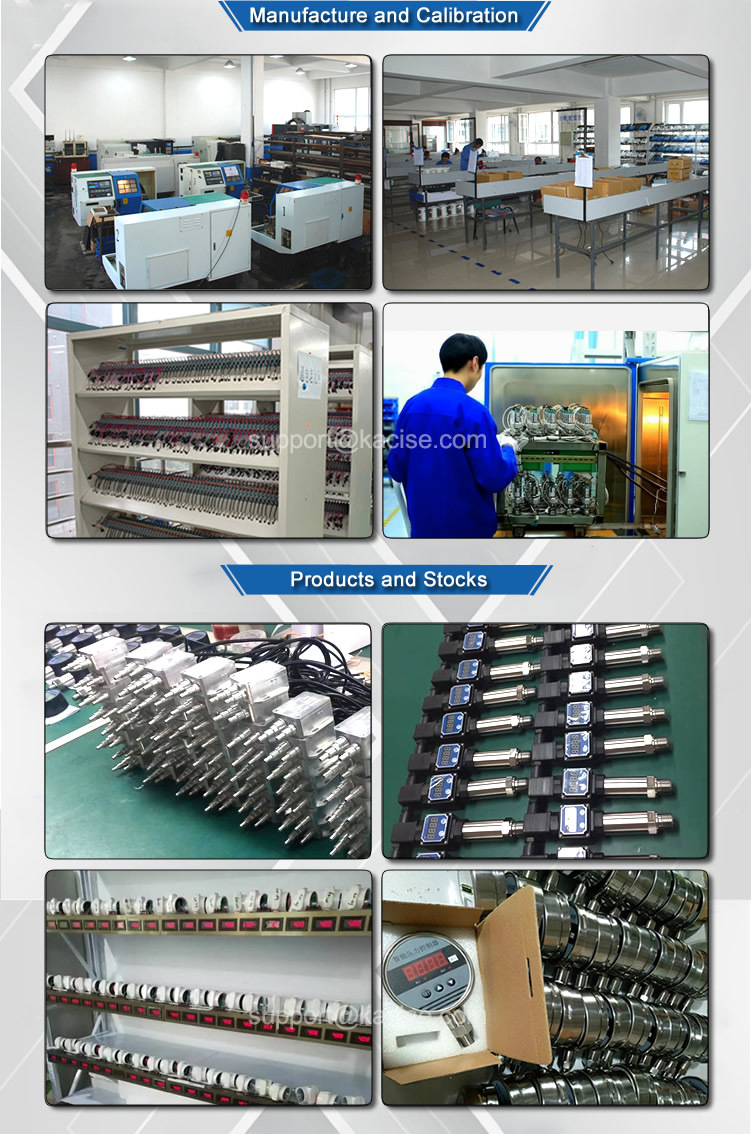

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
- Your inquiry will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- OEM&ODM, we can help you to design and your request will be put into product.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
- Discounts are offered based on order quantities.
- We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, measuring range , output signal, medium( liquid type),
pressure connection tread, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
