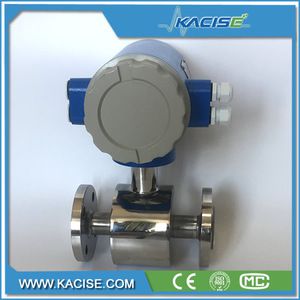

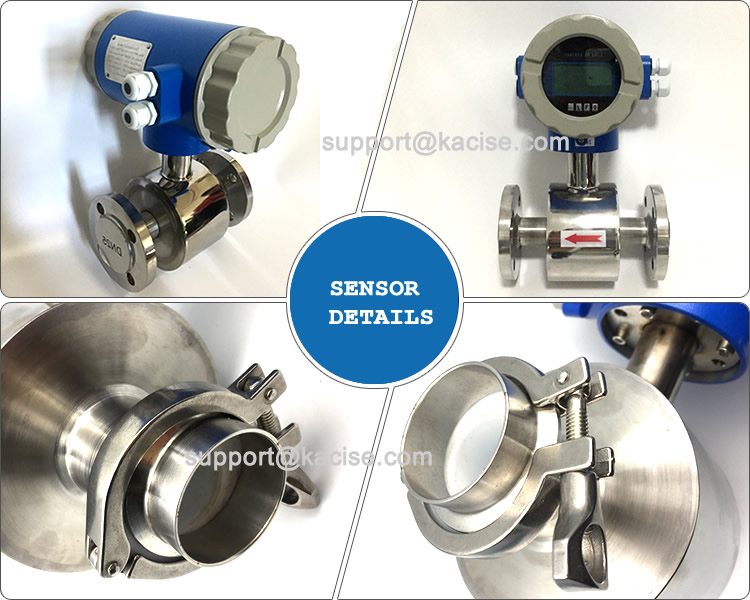

Low Price Digital Water / Milk Flow Meter, Electromagnetic Flowmeter
Description
KEF Series Digital Water / Milk Electromagnetic Flowmeter are intended for fluid measurement in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.
There are two basic components of electromagnetic flow meter:
1) The Detector, which includes the flow tube, isolating liner and measuring electrodes,
2) The Converter, which is the electronic device responsilbe for signal processing, flow calculation, display and output signals.
The materials of construction of the wetted parts( liner and electrodes) should be appropriate for the specification on the intended type of of service. Revies of the compatibilities consistent with the shipment of each meter.
Features
1. Simple structures, firm, no movable parts and long operation life.
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
5. Employ Teflon or rubber liner and different combination of electrode material such as Hastelloy C, Hastelloy B, 316L, and Titanium and adapt the need of different mediums.
6. Supply many styles of flow meters such as inline type and insertion type, etc.
Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. Integral type electromagnetic flow meters and remote type electromagnetic flow meters.
8. LCD back light display with high clearness. (Option: LED display is optional).
Technical Data
Items | Description | |
Suitable Diameter | DN25~DN2600 (below DN25 non-standard) | |
Suitable Fluid | Liquid with conductive ratio more than 5 μs/cm | |
Measuring Range | 0.5~10m/s (extendable to 15m/s) | |
Upper Limit of Span | 0.5~10m/s. 1~5m/s recommended | |
Accuracy | 0.3% (Option), 0.5%, 1.0% of F.S.. | |
Repeatability | Below 0.25% | |
Display of Converter | Display : Flow rate ( 4-digits), Totalizer (9-digits), Velocity, Alarm status by LCD ( LED-option) | |
Scale unit: selectable of L/h, L/m, L/s, m3/h, m3/m, m3/s | ||
Flow direction : selectable by program | ||
3 Digits display below of decimal points. | ||
K-factor: 5 digits. | ||
Data logger for 2-3years. | ||
Programming language: English, Korean(on request) | ||
Mounting: Integral type; Remote Type | ||
Power | AC: 220V, 50-60Hz; DC: +24V(Option) | |
Output Signals | 4~20m ADC, load ≤ 750ohm, 0~3kHz, 5V with source and changeable width. High terminal and effective frequency output Voltage output:0-5 V DC | |
Conduit connection | M20 * 1.5 Thread | |
Communication Interface | RS-232; RS-485; HART | |
Operation Pressure | 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) | |
Fluid Temperature | -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material | |
Ambient Temperature | Sensor -40°C ~80°C. transducer -15°C ~50°C | |
Ambient Humidity | ≤ 85%RH (at 20C) | |
Cable Outlet Size | M20×1.5 | |
Power Supply | 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) | |
Power Consumption | ≤ 15W | |
Protection Ratings | Integral type: IP65. Remote type: sensor IP68, transducer IP65. | |
Materials | Electrode | 316L (stainless steel), Hastelloy C, Hastelloy B, Titanium, Tantalum, etc. |
| Liner | PTFE, F46, PFA |
Measuring tube | SS304, SS316 | |
Flange | SS304, SS316 | |
Ground ring | 316L (stainless steel), HC, Ti, Ta, Cu. | |

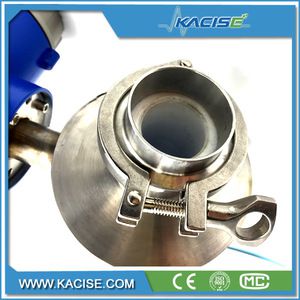

Connection of Flange | National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI. Screw. Tri-clamp for sanitary application Insertion type. | |
EX-proof protection | Exde ib ii BT2 | |
Quality control | ISO9001-2008, CE |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality KEF Series Digital Water / Milk Electromagnetic Flowmeter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
- Your inquiry will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- OEM&ODM, we can help you to design and your request will be put into product.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
- Discounts are offered based on order quantities.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
