Wholesale Micro Differential Pressure Gauge with low price
Introduction
KDPG2000 differential pressure gauge can indicate the positive, negative or differential pressure of the measured gas quickly by the pointer. This design has the function of preventing quake and overpressure. It is widely used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure.
Parameter
Ambient temperature | -20 ~ 80°C |
Medium temperature | -20 ~ 500°C |
Pressure port | 1/8″ taper pipe thread |
Shell material | aluminum alloy |
Accuracy | ±2.5% (default) customizable |
Standard fittings | tap, hose, bracket |
Rated pressure | -68 ~ 103KPa |
Specifications
0 – 30Pa | 0 – 400Pa | 0 – 2.5KPa | 0 – 30KPa |
0 – 60Pa | 0 – 500Pa | 0 – 3.0KPa | -15~0~15Pa |
0 – 100Pa | 0 – 600Pa | 0 – 5.0KPa | -30~0~30Pa |
0 – 125Pa | 0 – 750Pa | 0 – 8.0KPa | -60~0~60Pa |
0 – 200Pa | 0 – 800Pa | 0 – 10KPa | -125~0~125Pa |
0 – 250Pa | 0 – 1KPa | 0 – 15KPa | -250~0~250Pa |
0 – 300Pa | 0 – 2KPa | 0 – 25KPa | -500~0~500Pa |
customizable | -1~0~1KPa | -3~0~3KPa | -5~0~5KPa |
-2~0~2KPa | -4~0~4KPa | -10~0~10KPa |

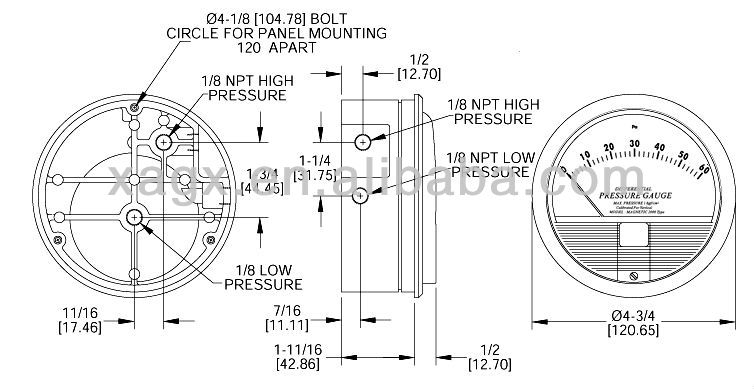

Structure
Installation
surface mounting built-in mounting
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

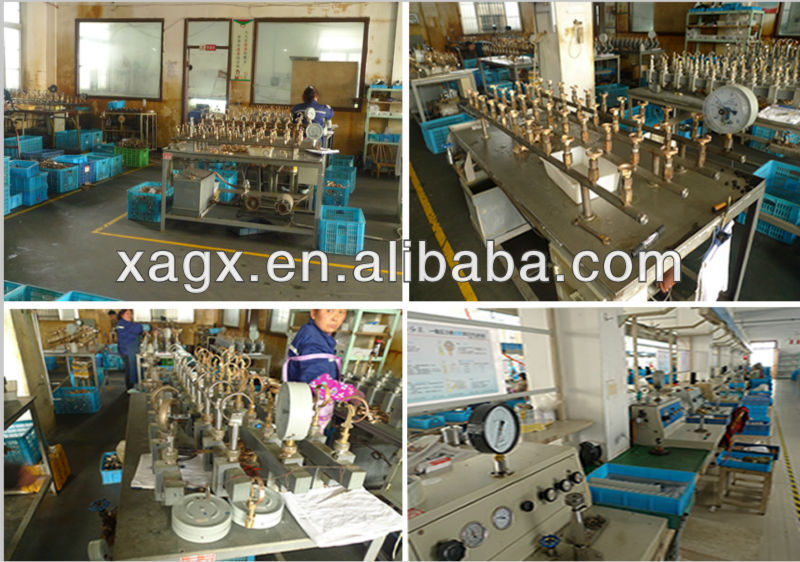

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
- Your inquiry will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- OEM&ODM, we can help you to design and your request will be put into product.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
- Discounts are offered based on order quantities.
- We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
1. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
2. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
3. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
4. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
5. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
6. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
