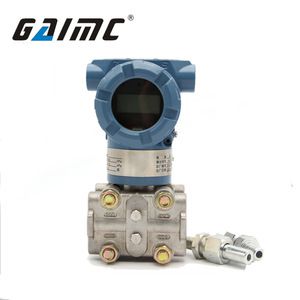

G3151DP 4-20mA smart differential pressure transmitter price

PRIMARY PARAMETERS

Place of Origin

Shaanxi, China (Mainland)

Brand Name

GAIMC

Model Number

G3151DP

Output

4-20mADC / HART

Accuracy

u00b10.075 %FS

Power supply

17.5 - 45 VDC

Pressure range

0-7.5 KPa to 0-41000 KPa

Ingress protection

IP65

Medium

Liquid, gas, air, steam etc.

Filling liquid

Silicone / fluorine oil

Insulation strength

100V AC

Temp. effect

u22640.45% / 55u2103

Item

G3151DP 4-20mA smart differential pressure transmitter price

Feature

» Pressure Range: 0-7.5KPa to 0-41000KPa

» Solid, plug-in printed circuit board

» Compact structure, anti vibration

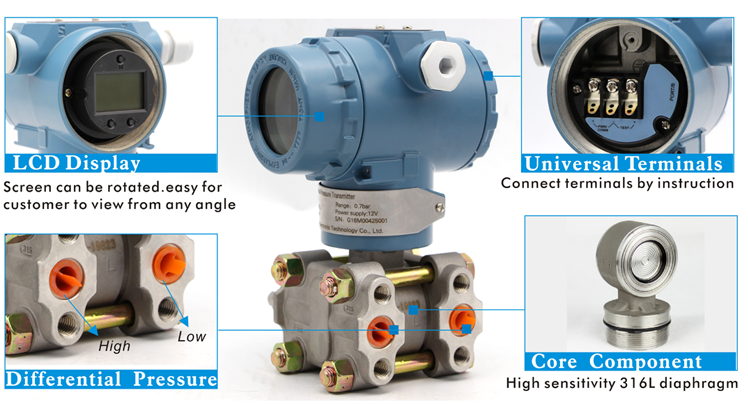

G3151DP-

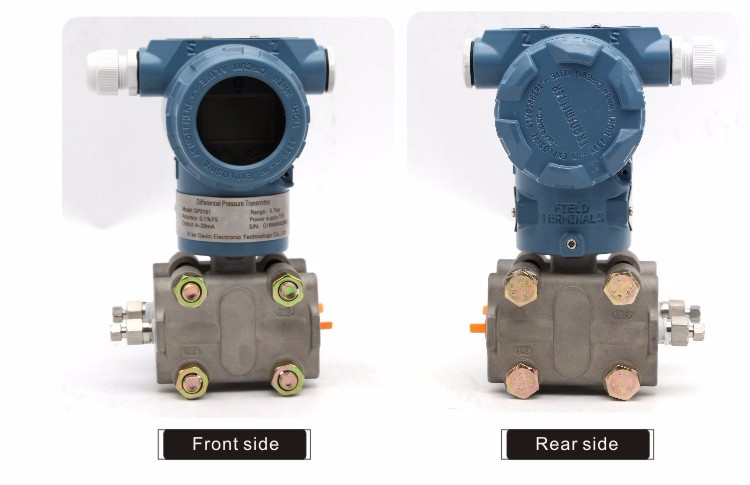

GP3151DP (1)

G3151DP-

Electrical technical parameters
Power supply	17.5 - 45VDC	Output signal	4 - 20mA DC / HART
HART communication load	250 - 1500 Ohm	Insulation strength	100V AC
Refresh time	0.25 Sec.	Start-up time	5 Sec.

Perfermance techanical parameters
Accuracy	±0.075%FS	Operating temp.	-40 - 85℃
Relative humidity	5% - 98%	Operating temp. (LCD display)	-20 - 70℃
Medium temp. (Max.)	-40 - 104℃	Stability	±0.1%
Temp. effect	≤0.45% / 55℃

Mechanical techanical parameters
Isolation diaphragm	316LSST	Flow connection	1/4 - 18NPT
Bleed valve	316LSST	Joint (optional)	1/2 - 14NPT
Joint	316LSST	Electrical connection	1/2 - 14NPT
O ring gasket	Nitrile rubber	Weight	3.9kg
Electric box	Aluminium alloy	Ingress protection	IP65
Joint bolt	Galvanized carbon steel

G3151DP	Differential pressure transmitter
No.	Pressure range
	3	0-1.25 ~ 7. 64 KPa
4	0-6. 22 ~ 37.39 KPa
5	0-31. 10 ~ 186.40 KPa
6	0-117.21 ~ 689.48 KPa
7	0-0. 34 ~ 2. 07 MPa
8	0-1. 17 ~ 6. 89 MPa
9	0-3.45 ~ 20.68 MPa	without fluorine and isolation membrane
0	0-6. 89 ~ 41.37 MPa
	No.	Output
B	4-20mA with HART protocol
	No.	Material structure
Pressure chamber	Bleed valve	Isolation diaphragm	Filling liquid
2 2	316LSST	316LSST	316LSST	Silicone oil
2 3	316LSST	316LSST	Hastelloy C-276
2 4	316LSST	316LSST	Monel alloy
2 5	316LSST	316LSST	Tantalum
3 3	Hastelloy C	Hastelloy C	Hastelloy C-276
3 5	Hastelloy C	Hastelloy C	Tantalum
4 4	Monel alloy	Monel alloy	Monel alloy
7 3	316LSST	Hastelloy C	Hastelloy C - 276
2 A	316LSST	316LSST	316LSST	Fluorine oil
2 B	316LSST	316LSST	Hastelloy C - 276
3 B	Hastelloy C	Hastelloy C	Hastelloy C - 276
2 D	316LSST	316LSST	Tantalum
3 D	Hastelloy C	Hastelloy C	Tantalum
7 B	316LSST	Hastelloy C	Hastelloy C - 276
		No.	Item optional
T	1/2NPT (Female) 316 L SST
O	1/4NPT (Female) 316 L SST
No.	Item optional
M7	Linear indicator 0~100
Bl	Pipe mounting curved bracket (D=51mm)
B2	Plate mounting bracket
