Piezoresistive Silicon Vacuum Pressure Transmitter

PRIMARY PARAMETERS

Place of Origin

Shaanxi, China (Mainland)

Brand Name

GAMICOS

Model Number

GPT200

products

Vacuum Pressure Transmitter

Pressure range

-100kPa~0...0~10kPa...100MPa

pressure type

gauge (G), absolute (A), sealed gauge (S)

overpressure

150%FS or 110MPa(min. value is valid)

output signal

4~20mA 0~5Vdc 1~5Vdc 0~10Vdc 0.5~4.5Vdc

power supply

12~36Vdc 5Vdc

accuracy

0.25%FS(typ.) 0.5%FS(max.)

electrical interface

DIN43650,option1.5m cable connection

pressure interface

M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)

material of pressure membrane

316L stainless steel

DETAIL DESCRIPTION

Piezoresistive Silicon Vacuum Pressure Transmitter

GAMICOS brand

GAMICOS, We are specialized in pressure level measurement, pressure transmitter consists mainly of usually pressure sensor, ceamic pressure sensor, high temp. pressure sensor, flush disphragm pressure sensor, smart digital pressure sensor, wirelss pressure sensor etc.

Why you choose and trust us?

♦ Trade Assurance: 75 Transactions, total amount is above $ USD 200,000+ (from Jan to Jun, 2017)

♦ Near 50% buyers found pressure sensor and contact us, GAMICOS in ALIBABA

♦ View GAMICOS 7000+, Send inquiry 300+ (from Jan to Jun, 2017)

Product Description

GPT200 pressure transducer is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The most important specification for industry application is long term stability. The GPT200 pressure transmitter is designed for industry application with perfect long term stability.

Features and Details

♦ piezoresistive pressure sensor
♦ pressure range: -100kPa~0...0~10kPa...100MPa
♦ gas or dilute liquid compatible with 316LSS
♦ high reliability and stability

Technical Specifications

Item	Specifications
Range	-0.1...0~0.01...100MPa
Type of pressure	Gauge (G), absolute (A), sealed gauge (S)
Accuracy	±0.5%FS, ±0.25%FS
Output	Two wires	Three wires	Four wires
4-20mA	1-5V/0-5V	0.5~4.5V	0~10V	100mv
Power	12-36V	12V/24V	5V	12V/24V	1.5mA or 10V
Compensated temp.	-10~70℃
Operating temp.	-20~85℃
Storage temp.	-40~125℃
Temp. coefficient on zero	±1.5%FS
Temp. coefficient on span	±1.5%FS
Overload	150%FS
Shock	20g (20-5000HZ)
Impact	100g (11ms)
Long term stability	±0.2%FS/ year
Insulation	100MΩ, 250VDC
Medium	All mediums compatible with 316L stainless steel
Material	Housing: 304 stainless steel Sensor: 316L stainless steel
Pressure connector	M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)
Electrical connection	Default cable connection, DIN43650 or aviation plug
Ingress protection	IP65
Explosion proof	Intrinsically safe explosion proof ExiaⅡCT6
Weight	0.4kg

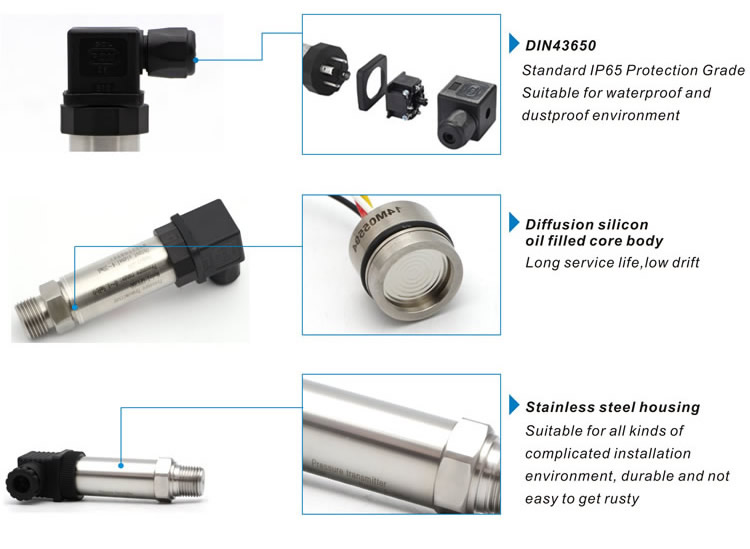

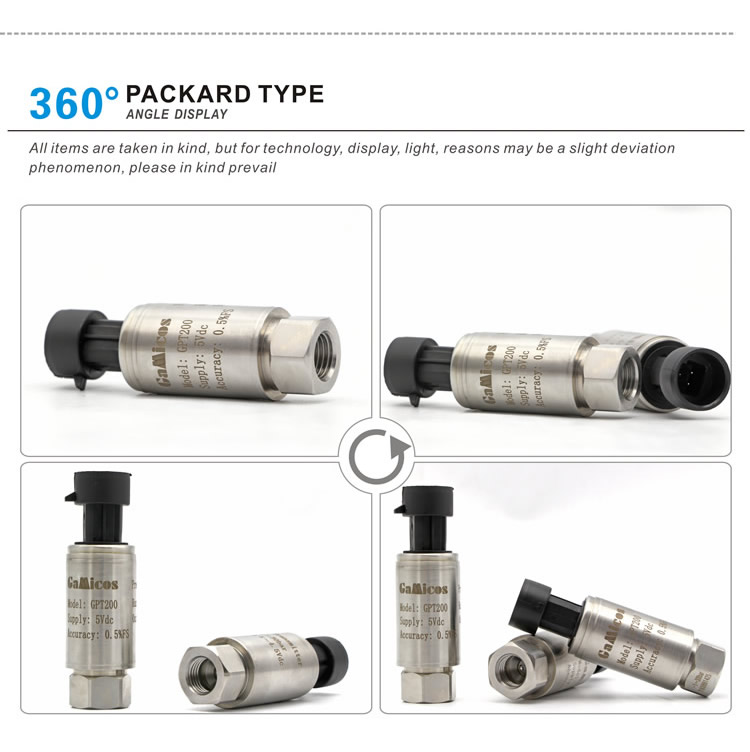

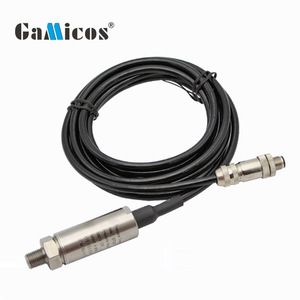

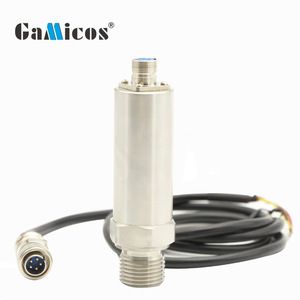

Detailed Images

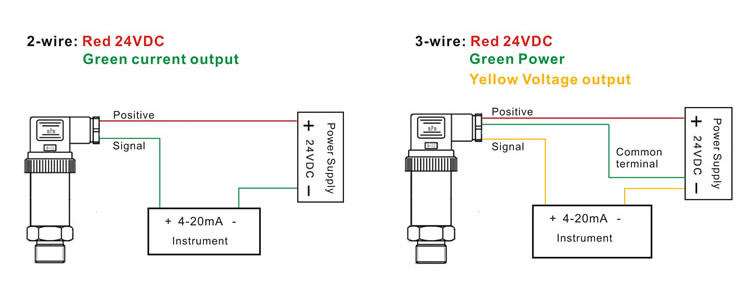

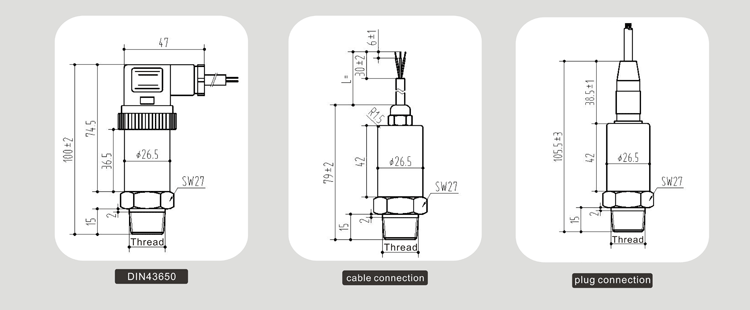

Dimensions(in mm)& Wiring connection

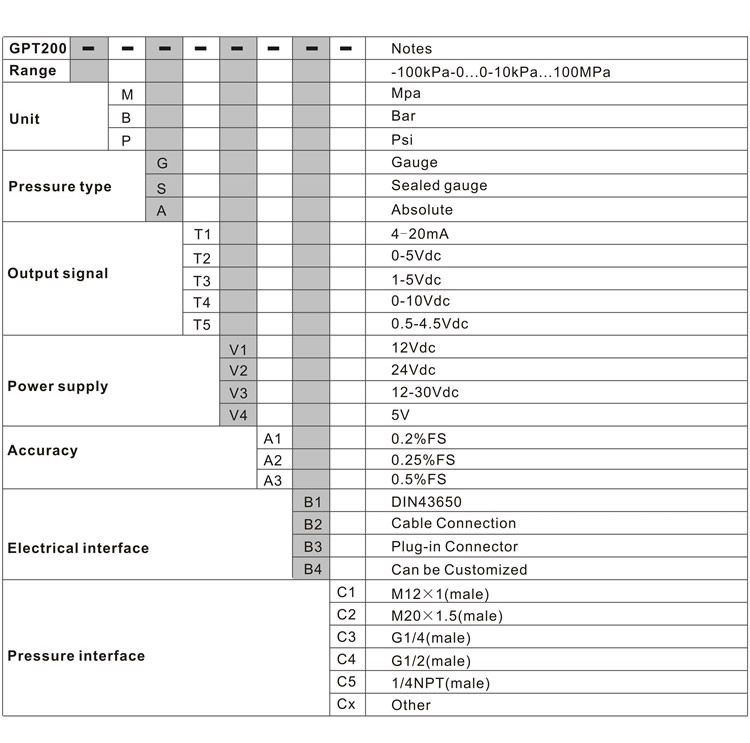

Ordering Code

Ordering Guide

Process Flowchart

In the design of product structure, material selection, manufacturing process, production assembly and the factory test etc., which has a very detailed calibration process.
