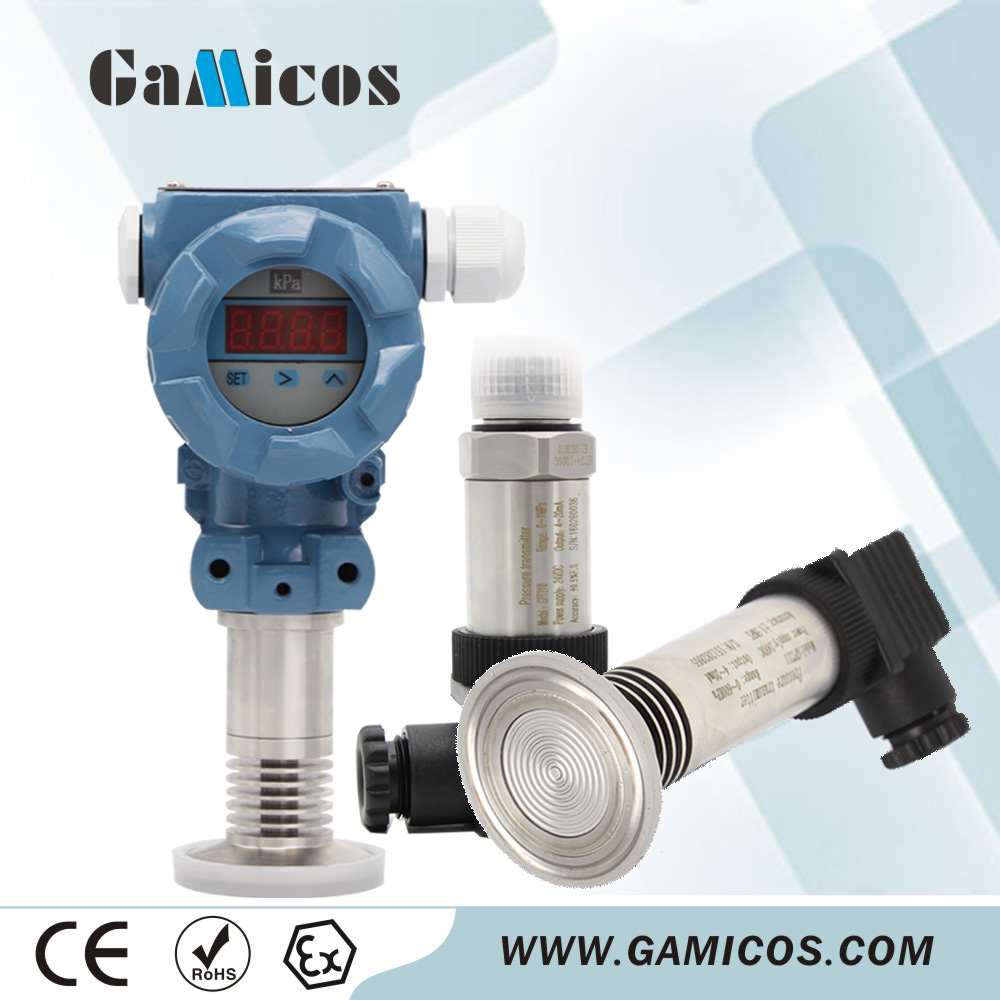

GPT230 Low cost Air Pressure Transmitter
Related products of low cost water air pressure sensor price?
GAMICOS BRAND of low cost water air pressure sensor price?
GAMICOS, We are specialized in pressure level measurement, pressure transmitter consists mainly of usually pressure sensor, ceamic pressure sensor, high temp. pressure sensor, flush disphragm pressure sensor, smart digital pressure sensor, wirelss pressure sensor etc.
Why you choose and trust us?
♦ Trade Assurance: 75 Transactions, total amount is above $ USD 200,000+ (from Jan to Jun, 2017)
♦ Near 50% buyers found pressure sensor and contact us, GAMICOS in ALIBABA
♦ View GAMICOS 7000+, Send inquiry 300+ (from Jan to Jun, 2017)
Product description of low cost water air pressure sensor price?
Description
The product is produced with military craft and has the characteristics of advanced design perfect technology, strict production superior device, superior management, perfect quality control system It has been sold in more than 40 countries.
Feature
used in refrigeration Industry
±0.5%FS,±1%FS accuracy
high stability , high reliability
ceramic sensor from German
digital calibration
multiple connectors and ports
CE compliant
ROHS compliant
Applications
Process control system
Compressor
Building Water supply
Hydraulic control
Air conditioner
Automotive engine
Automatic detection system
Hydraulic Pressure station
Refrigerator
Product parameters of low cost water air pressure sensor price?
Pressure range | 0~200kPa...60MPa | |
Pressure type | gauge (G ) | |
Overload pressure | 150%FS | |
Accuracy | 0.5%FS(typ.) ±1.0%F.S (max.) | |
long-term stability | 0.5%FS/year(typ.) 1.0%FS/year(max.) | |
temp.coefficient of zero | ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.) | |
temp.coefficient of span | ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.) | |
Operating temperature | -40°C~100°C | |
compensate temperature | -10°C~80°C | |
storage temperature range | -40°C~100°C | |
Medium compatibility | All corrosive medium compatible with 1Cr18Ni9Ti | |
Output signal | 4~20mA | 0.5~4.5V |
Power supply | 10~30Vdc | 5V(ratio) |
Load resistance | R≤(U-15)/0.02 (for 4/20mA) | R>100kΩ(for votage output |
Insulating resistance | >100M Ω@100V | |
electrical interface | packard,DIN43650,plug connection,cable connection,waterproof outlet | |
pressure interface | M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request) | |
material of pressure membrane | ceramic | |
material of housing | Cr18Ni9Ti stainless steel | |
response time(10%~90%) | ≤10ms | |
shock/impact | 10gRMS,(20~2000)Hz / 100g,11ms | |
protection | IP65 | |
certification | CE ,Ex ,ROHS | |
EMC | EMI:EN50081-1/-2, EMS: EN50082-2 |
Detailed image of low cost water air pressure sensor price?
Dimension of low cost water air pressure sensor price?
Electrical interface and pressure interface of low cost water air pressure sensor price?
Ordering guide of low cost water air pressure sensor price?
Process flowchart of low cost water air pressure sensor price?
Packaging and shipping of low cost water air pressure sensor price?
Our service of low cost water air pressure sensor price?
- Service standards: we are committed to providing a high quality,and responsive services to all clients
- The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
- Excellent package: each unit has individual box and all boxes are packed in standard packages.
- OEM available
Buyer feedback of low cost water air pressure sensor price?
