Applications:

The non clogging KNV pumps are for non-abrasive solid liquid mixture containing solids or long fiber.

the pumps are suitable for water supply, sewage or waste water and sludge disposal in mucipal projects and industrial enterprises, as well as nondestructive transportation of fruits, potatoes, beets, grains and fish in food industry.

The pumps are widely used in chemical industry, iron and steel, paper making, sugar refinery, food and environmental protection, etc.

Technical Features:

   ♣   Shaft seal: Standard gland sealing without leakage.

   ♣   Drive mode: Direct drive by elastic coupling.

   ♣   Two ways of installation: Pit type and dry type.

   ♣   Vertical, Non-clogging, single-stage, single-suction centrifugal pump.

   ♣   Eleven kinds of bearing assembly and all in non-submerged structures.

   ♣   Back-dismantled structure: No need to remove the pipeline and pump body when maintaning.

   ♣   Two types of impellers: E type impeller-- Standard single-blade impeller; EX type impeller-- Wide-channel single-blade impeller.

 New type efficient energy-saving non-clogging pumps introduced from the Germany

Pump Specification:

Discharge Diameter:  40--500 mm

Flow Capacity:  8--4500 m3/h

Head:   1--100 m

Type Notation:

KNV E 80--200

KNV: Pump type

E: Impeller type

80: Discharge diameter(mm)

200: Impeller norminal diameter

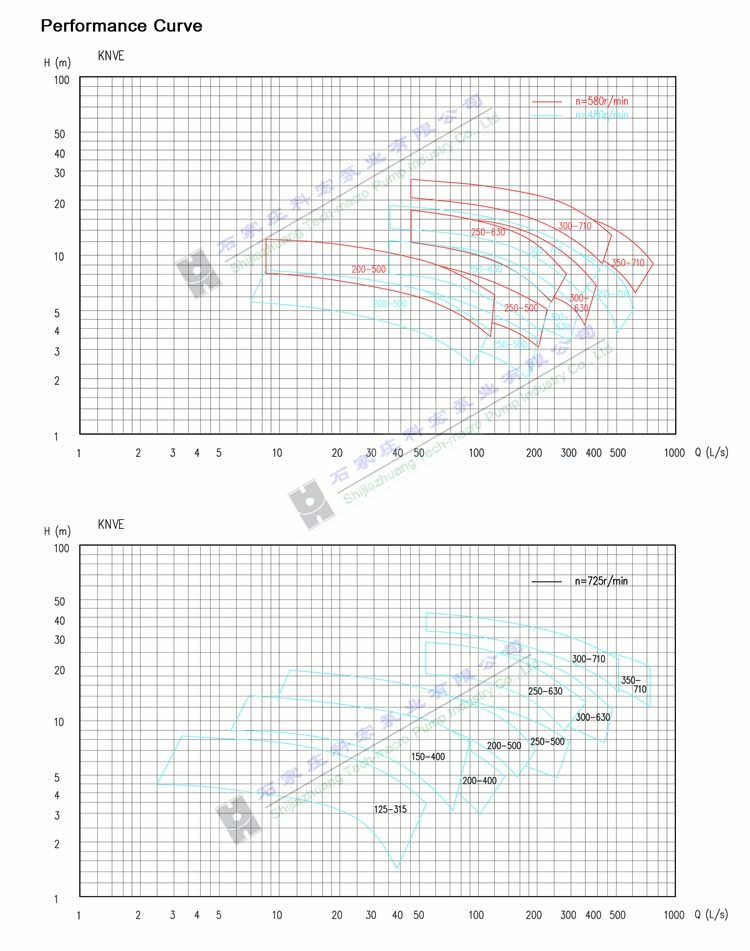

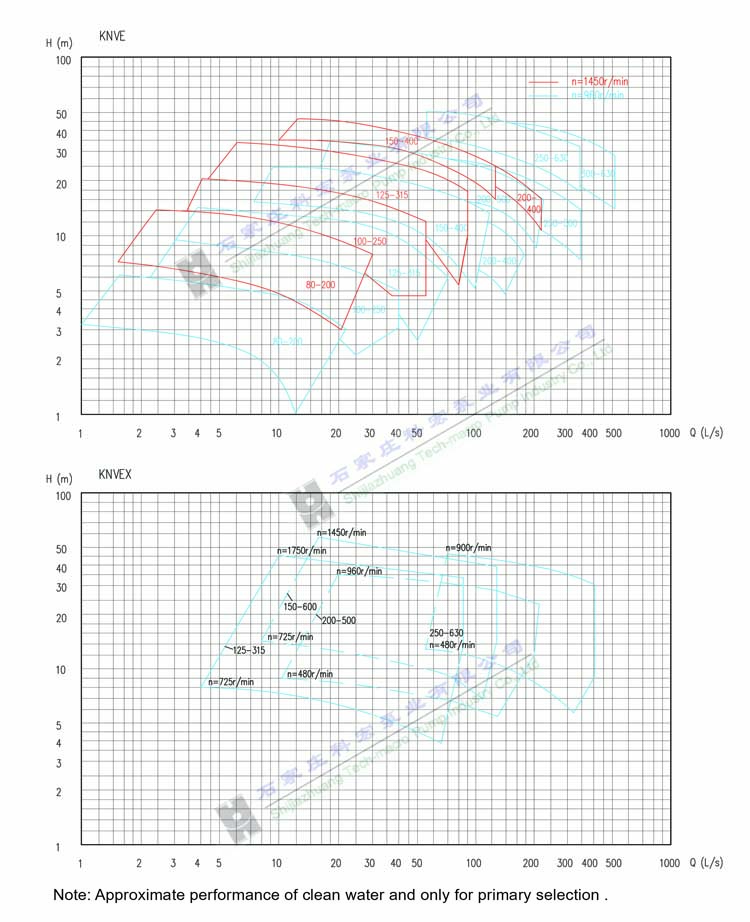

Performance curve:

Structure showing:

To survive with quality, to grow by technology! Provide higher cost-effective pump products and service for the society are our constant pursuit! We would be glad to inaugurate the future with you!

Our Service:

High quality products anf great service, to ensure reliable operation!

Pre-sale:Accurate grasp of the customer's need, professional technical support, and optimal design solutions.

In-sale:Provide users with professional guidance, site installation and specialized training service.

Post-sale: Regular follow-up, timely spare parts supply, and quick maintance.
