Wide passage vertical centrifugal non clogging sewage pump for potatoes,live fish,shrimp,cane juice
Series KNV pump is vertical, single-stage, end-suction, centrifugal pump.Series KNV non-clogging centrifugal pump is a new type, high-efficiency, energy-saving non-clogging pump made by our works under the license technology introduced from Germany.
Typical Application:
Series KNV pump is designed for delivering non-abrasive liquid-solids mixture with particles and long fibres such as sewage and effluent treatment in city and factory or mine enterprises, whole of food transportation(fruits, potatoes, fish, beet and corms in food industry) It is also widely suitable for chemical, iron & steel , paper, environment protection industries and other branches.
Operating Limits:
Inlet diameter:80—400mm
Outlet diameter:80—350mm
Flow Capacity:4—2500m3/h
Head :5—50m
Type notation:
KNV E 80 —200
KNV:Type of pump
E:Type of impeller
80:Discharge size of pump(mm)
200:Nominal dia.of impeller(mm)

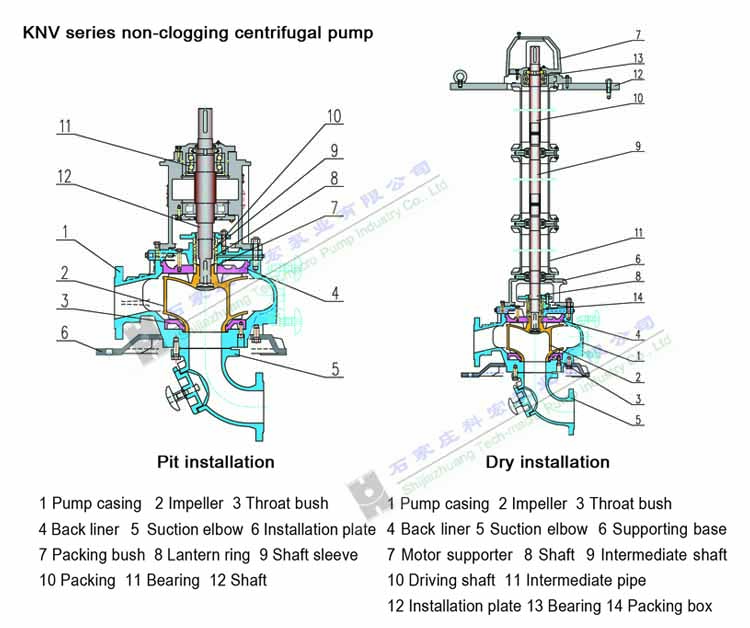

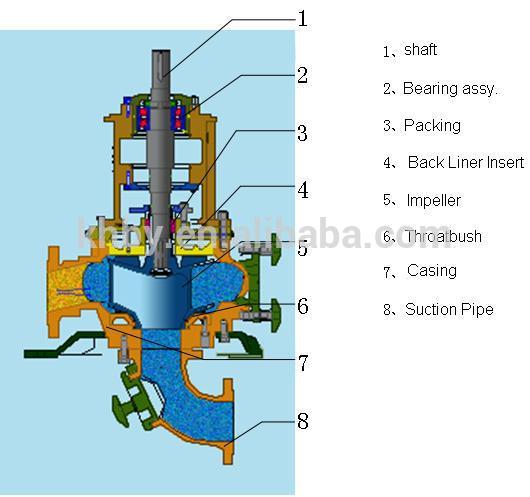

KNV structure:

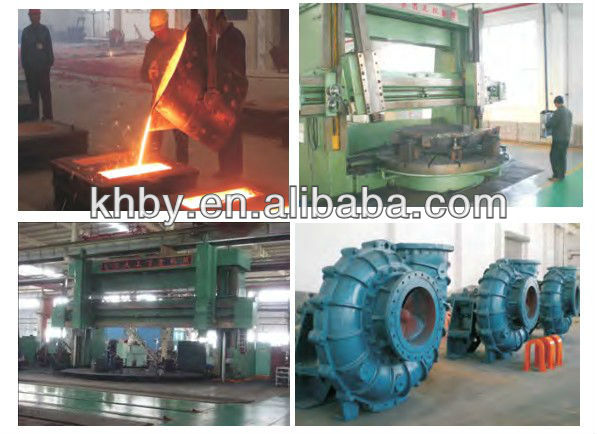

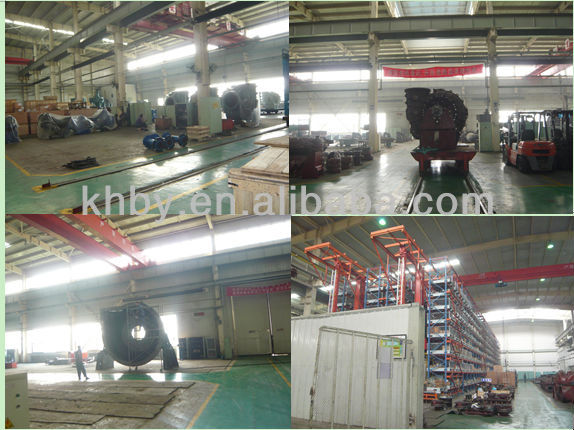

Factory gallery:
