Suitable for pumping large solids size
Single-stage,single suction
wear resistant, wide flow channel
replaceable

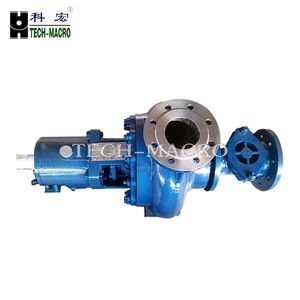

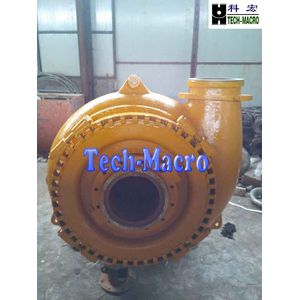

12/10ST-G grain transfer pump
Application:
The G(H) pumps are designed for continuous high density, strong abrasive slurry which contain big solids unable to be transferred by other pumps.
Horizontal centrifugal single- casing sand and gravel pumpfor gold mining, explosive-sludge in metal melting, dredging in dredger and river course, coal and power plant, especially for large particles and cavitation conditions.
Applicative Models | Interchange with the famous gravel pump G(GH)series. |
Gravel pump spares Material | high chrome A05, used for higher wear condition with PH between5-12. |
Max allowable particle size | 380mm |
Features:
- Horizontal centrifugal sand dredge pump is with single casing.
- Special hoop is utilized to clamp the pump with cover plate.
- The discharge can be positioned at any direction within 360 degrees, making the installation and operation more convenient.
- The pumps support V-belt drive; elastic coupling drive; gear reducer drive; hydraulic coupling drive; variable frequency drive and other methods. As a consequence, the pump performs with long operating life, high efficiency and adopting to all kinds of poor transporting conditions.
- The bearing assembly is arranged in cylindrical structure, making it more convenient for adjusting the clearance between the impeller and the pump body. Moreover, the bearing assembly can be dismantled intergally and the bearing assembly adopts grease lubrication.
- Shaft Seal type-gland packing seal; expeller seal; mechanical seal.
Sand/dredge pump Performance Range:
Discharge size: 4 ~ 24 inches(100mm ~ 610mm)
Flow capacity: up ot 12600 m ³ /h(55440gpm)
Head: up to 92 m(302 ft)
Max allowable particle size: 380mm

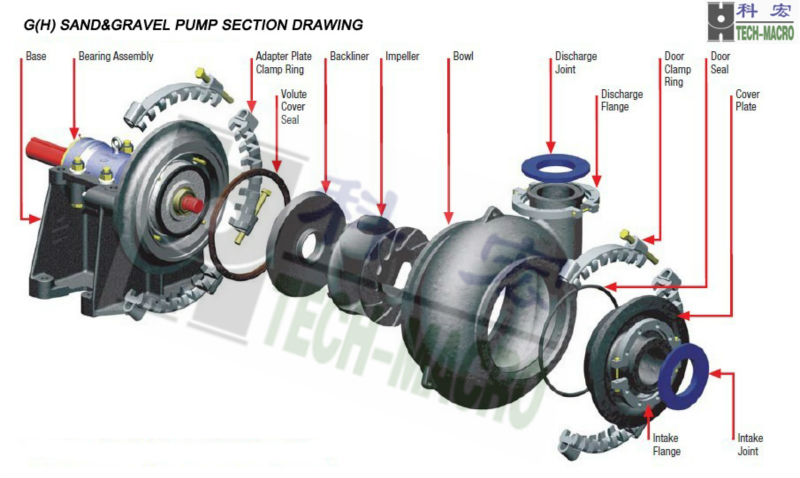

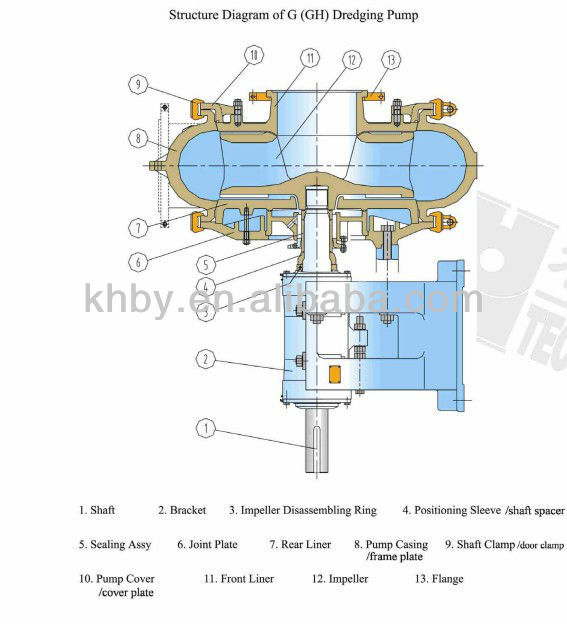

Structure:

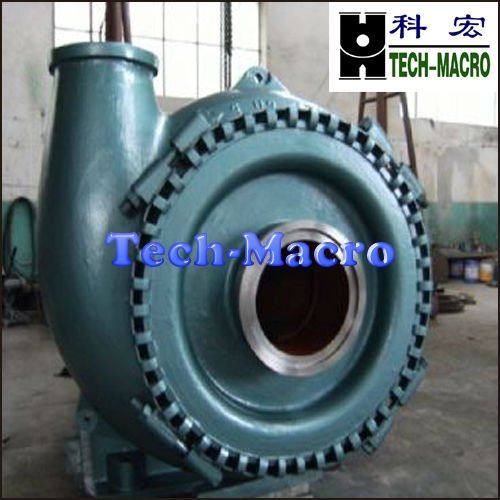

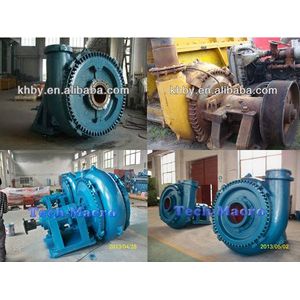

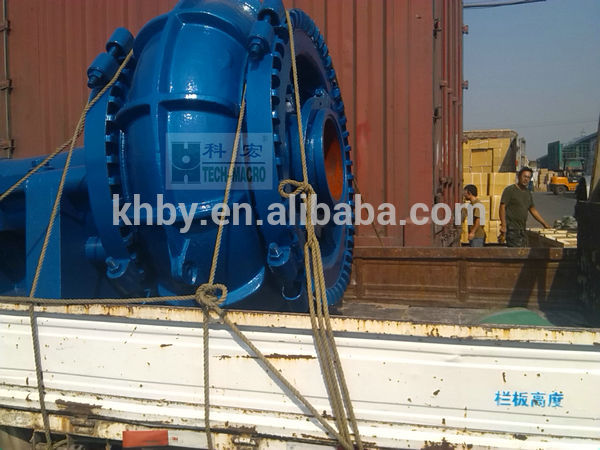

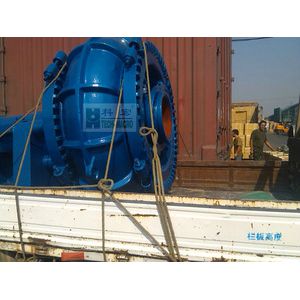

Sand dredge pump picture:

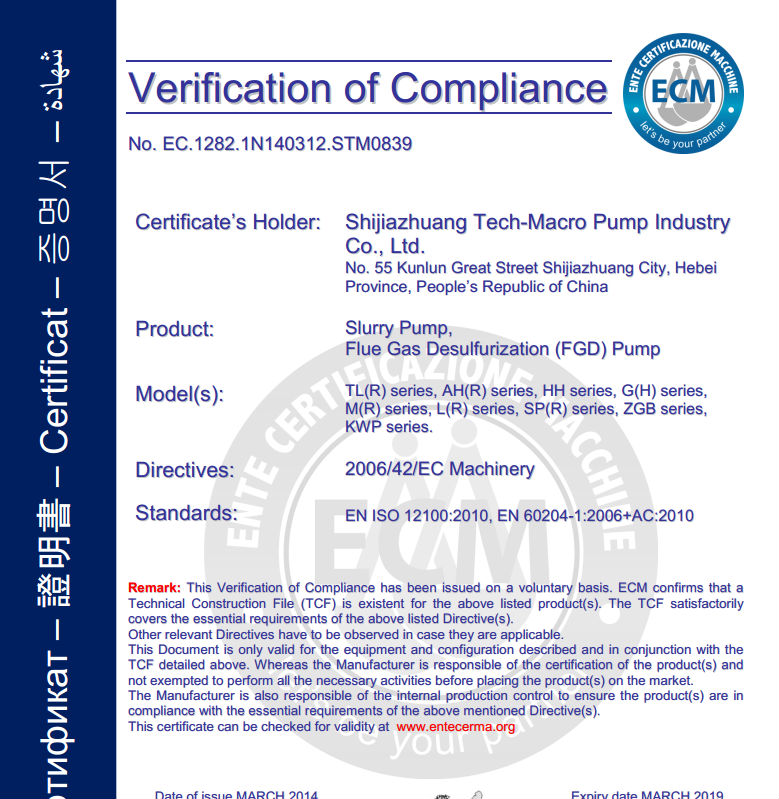

| ISO-9001 | SGS | CE |
| √ | √ | √ |
