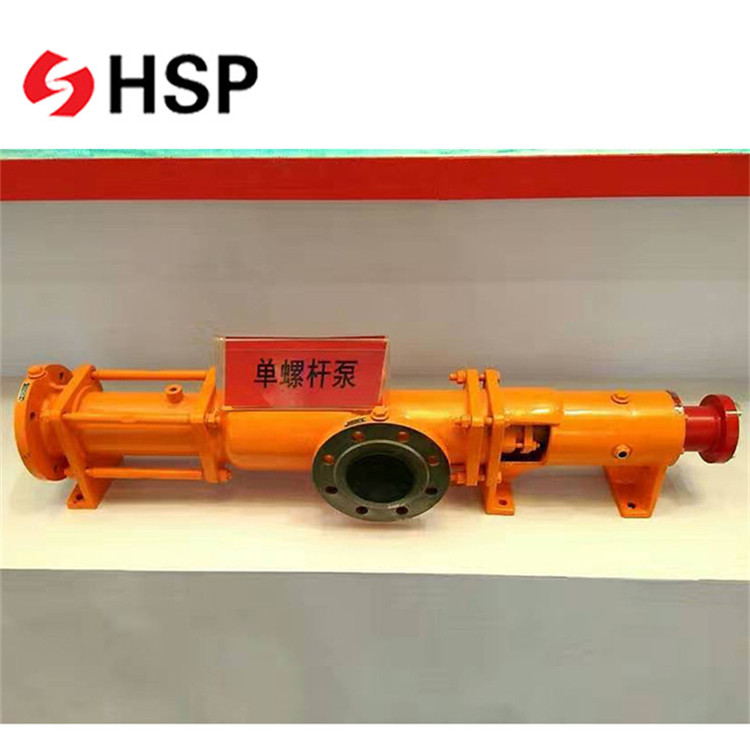

Chinese homemade Starch paste transfer screw pump working
| Name | Chinese homemade Starch paste transfer screw pump working |
| Usage | transfer food, chemical, slurry oil,waste water,slurry |
| Structure | Screw Pump |
| Packaging | Standard export wooden case |
| Material | Cast Iron/stainless steel |
| Pressure | Low Pressure |
Specification:
Max. pressure: single stage:0.6Mpa double stage:1.2Mpa
three stage:1.8Mpa four stage:2.4Mpa
Max. capacity:300m³/h
Max. Viscosity:2.7*100000cst
Max. Temperature:150 degrees
Brief introduction
G series stator rotor single screw pump working

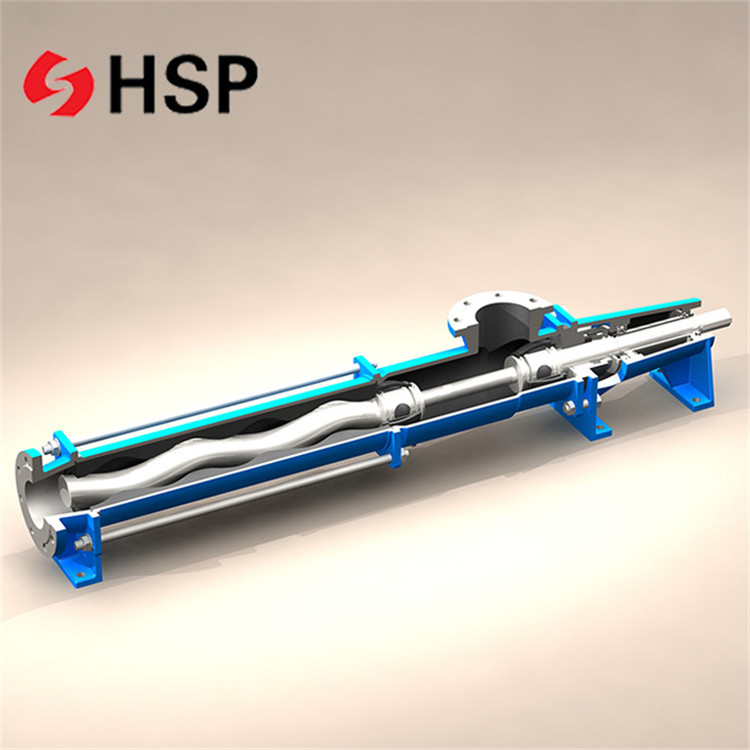

belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing single-head screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.
Application scope
1. Petro-industry
2. Chemical industry and Pharmacy
3. Environment industry
4. Mineral products engineering industry
5. Food industry
6. Papermaking industry
Technical data
Advantage:
- Good self-priming performance.
- Simple structure.
- Economy and durability.
- Insensitive to impurities.
- The utility model has high utilization rate and is not easy to malfunction.
- Conveying medium has a wide range of viscosity, and the medium with poor fluidity can also be conveyed.
- In the process of transferring, there is no stirring, shearing and other phenomena, so it can transport the material containing fiber or the medium that is afraid of crystal damage.
- The direction of operation and flow is reversible, the installation forms are various, and the utility model has a wide range of application.
- Flow stability, minimum pulsating shear.
- The utility model has the advantages of high efficiency in operation, long service life of the rotating components and little wear.
- Less parts, convenient maintenance and replacement, low maintenance cost.
- The screw can be hardened surface, can adapt to bad conditions, and extend the service life of the pump.
- The lining is lined with rubber materials of different properties and pumps in different mediums.
- The two universal joints are connected with the screw shaft and the drive shaft to transmit torque, and the universal joint is covered with a rubber sheath to ensure internal lubrication.
Can be used in different forms of sealing replacement (such as mechanical seal, packing seal).
Application:
| petroleum industry | transfer Heavy oil,Oil-gas mixing,Oil water separation and waste oil recovery system ,sewage disposal,Polymer delivery |
| Chemical and pharmaceutical | various kinds of paste,Emulsions,Suspensions,All kinds of gas and solid liquid Any of various media that cannot be agitated or sheared |
| Environmental Engineering | Transferring various sewage,Dewatering sludge transferring,Dosing of flocculants and their chemical agents,Oil water separation and exhaust gas quality removal |
| Mining Engineering | Equipment and transferring of coal water slurry,Production equipment for titanium dioxide, kaolin, calcium carbonate, etc.Feed to the rotary fluid and filter,Chemical dosing,Charging and grouting,Electrolyte treatment |
| food industry | Dairy,Fruit juice, fruit and vegetable sauce,Meat and spices,Beer and brewing |
| Papermaking industry | Raw material equipment,Coating and colouring process,Stoichiometry, Pulping and wastewater treatment |
Hebei Hengsheng pump manufacture Co., Ltd is a professional manufacture of positive displacement pump in China.The company located in BoTou Hebei province and has a modern garden-style factory.Our company is specialized in the pump related designing,casting,production,sales and services. HeBei HengSheng pumps was founded in 1973,the birthplace of first KCB series gear pump in China.HengSheng pump took the lead in the pump industry through the 9001 quality management system certification. In addition,we established the national class B product test station and has many top level testing equipment in our workshop to test every pump performance and trace the quality of each pump .
Our company has been extremely popular in the market.HengSheng pump as a number of material source market of petrol China and Sinopec.The known product manufacture and marine product manufacture.All of our pump model has certificated by ABS CCS BV for marine application.HengSheng is mainly engaged in the production of gear pumps and screw pump workings of 33 series and 4500 specification.and the annual production capacity which is up to 45,000 sets of pumps that are widely use in oilfield,chemical industry,power industry,ships,metal industry and food industry.
Experienced more than 40 years,HengSheng has become the largest scale,the most varieties,leading technology and strongest processing and testing ability in domestic pump industry.HengSheng has exported to over 35 countries such as US,Germany,Indonesia,Saudi Arabia and Colombia
We have patented products whidch is gear pumps, screw pump workings, piston pumps.
If you are interested in our pump,please send inquiry to us!
