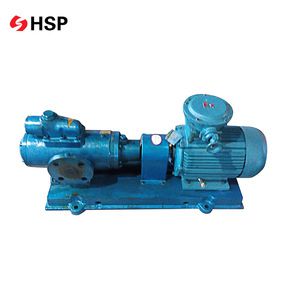

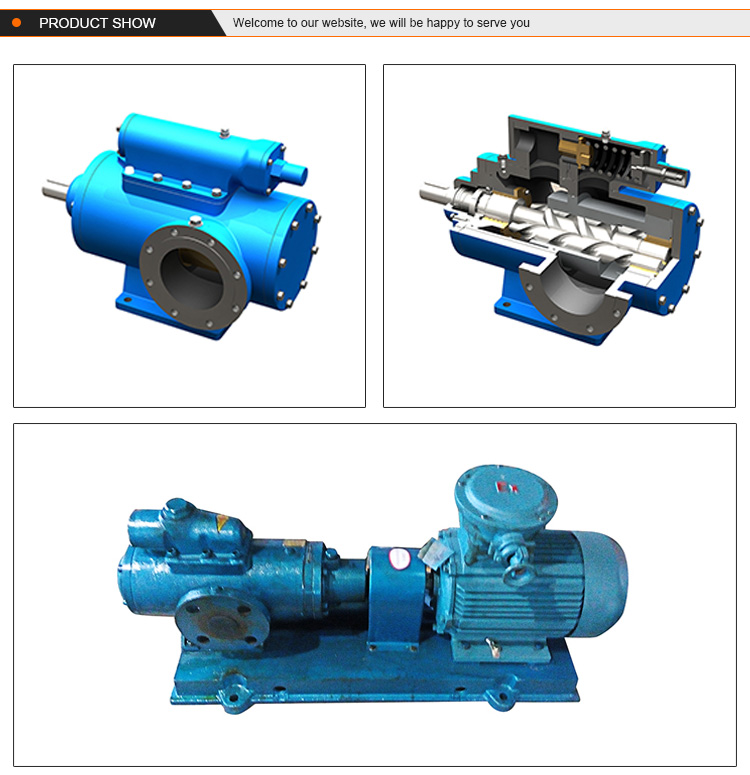

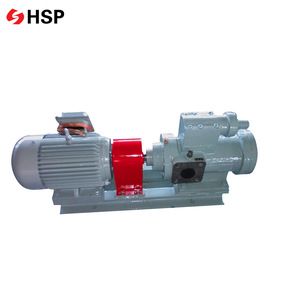

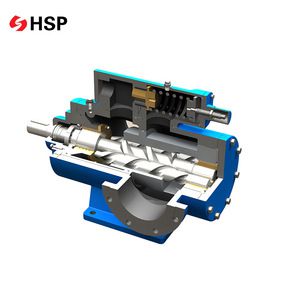

Three Rotor tripple screw Pump for conveying fluids resin
Specification:
Temperature:≤150 degrees
Viscosity:5-760 cst
Pressure range:0.6-2.5 Mpa
Flow rate range:0.6-123m³/h
Medium:A medium that does not contain solid particles, corrosive, or lubricating properties.
| Model | Pressure (Mpa) | Capacity | Speed (r/min) | NPSHR (m) | Efficiency (%) | Motor | ||
| m³/h | L/min | Power(kw) | Model | |||||
| 25*4-46
| 1.0 2.5 | 1.6 1.2 | 26 20 | 1450 | 4.5 | 63.1 61 | 1.1 2.2 | Y90S-4 Y100L1-4 |
1.0 2.5 | 3.6 3.2 | 60 53 | 2900 | 5 | 60 69 | 2.2 4 | Y90L-2 Y112M-2 |
Screw pump according to the use of classification is divided into 5 Series
| Model | Usage | Performance range | |
| Capacity(m³/h) | Pressure(Mpa) | ||
| 3G | Transfer lubricating oil ,viscosity 3-20oE, temperature≤80 degrees | 0.6-570 | 2.5 |
| 3Gr | Transfer heavy fuel oil ,viscosity 3-50oE temperature≤120 degrees | 0.6-570 | 2.5 |
| 3Gr | Transfer light fuel oil ,viscosity 2-5oE temperature≤120 degrees | 0.6-570 | 1.6 |
| 3GW | Transfer high temperature feul heated oil , temperature≤150 degrees | 0.6-.363 | 2.5 |
| 3GN | Transfer high viscosity oil 100oE , temperature≤80 degrees | 0.6-636 | 2.5 |
Advantage:
- The medium is continuously transferred without stirring and without pulsation.
- Low vibration and low noise.
- High pressure and high efficiency.
- The structure is simple,convenient disassembly and assembly.
- Small in size and light in weight.
- Slight wear and long life.

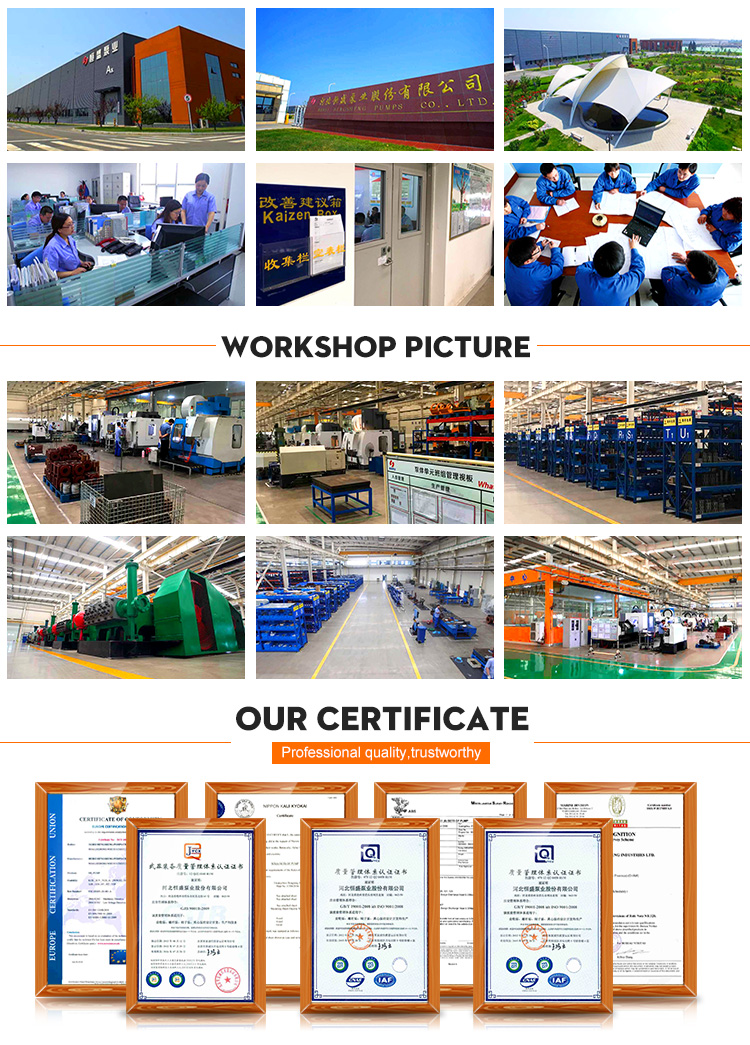

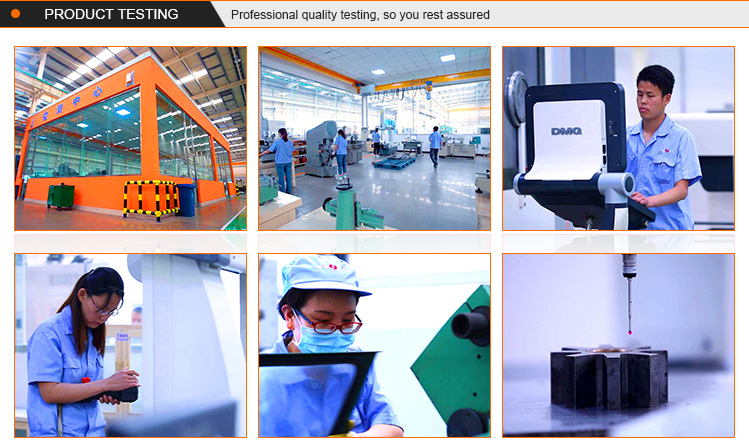

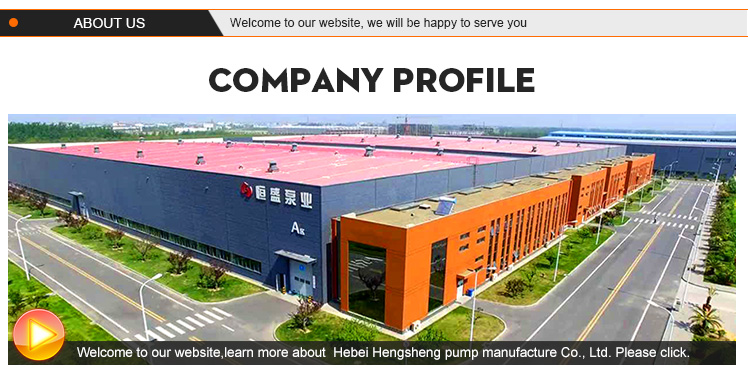

Hebei Hengsheng pump manufacture Co., Ltd is a professional manufacture of positive displacement pump in China.The company located in BoTou Hebei province and has a modern garden-style factory.Our company is specialized in the pump related designing,casting,production,sales and services. HeBei HengSheng pumps was founded in 1973,the birthplace of first KCB series gear pump in China.HengSheng pump took the lead in the pump industry through the 9001 quality management system certification. In addition,we established the national class B product test station and has many top level testing equipment in our workshop to test every pump performance and trace the quality of each pump .
Our company has been extremely popular in the market.HengSheng pump as a number of material source market of petrol China and Sinopec.The known product manufacture and marine product manufacture.All of our pump model has certificated by ABS CCS BV for marine application.HengSheng is mainly engaged in the production of gear pumps and screw pumps of 33 series and 4500 specification.and the annual production capacity which is up to 45,000 sets of pumps that are widely use in oilfield,chemical industry,power industry,ships,metal industry and food industry.
Experienced more than 40 years,HengSheng has become the largest scale,the most varieties,leading technology and strongest processing and testing ability in domestic pump industry.HengSheng has exported to over 35 countries such as US,Germany,Indonesia,Saudi Arabia and Colombia
We have patented products whidch is gear pumps, screw pumps, piston pumps.
If you are interested in our pump,please send inquiry to us!
