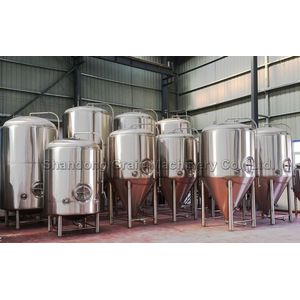

Stainless Conical 5000 Liter Fermenter For Sale
Stainless Conical 5000 Liter Fermenter For Sale also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the
time given to the beer to stabilize and age after fermenting.
The design of Stainless Conical 5000 Liter Fermenter For Sale is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
The configurations of Stainless Conical 5000 Liter Fermenter For Sale are as below:
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom

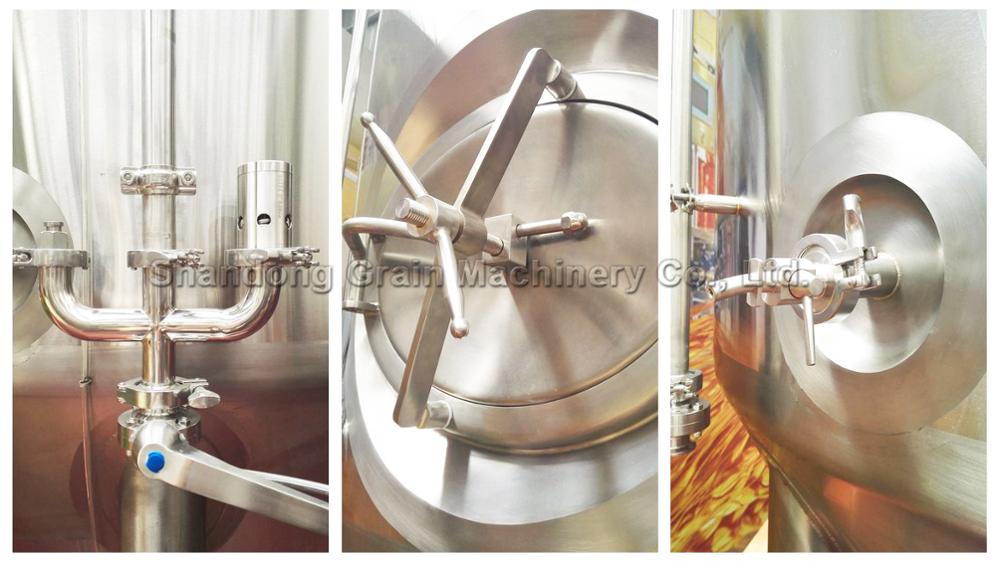

Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
Dry hopping port with solid end cap
Level tube for special request
Carbonation port and stone for special request

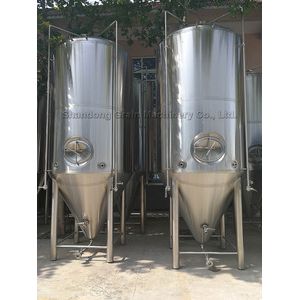

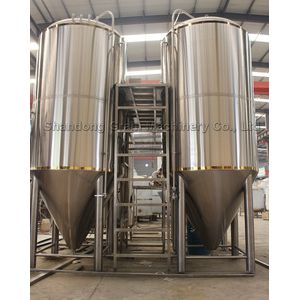

5000L Fermentation Tank With Platform

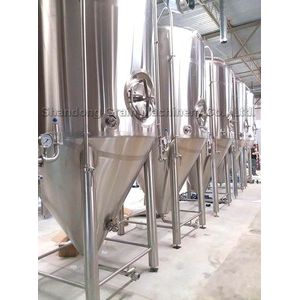

20BBL Fermentation Vessel With Side Manway

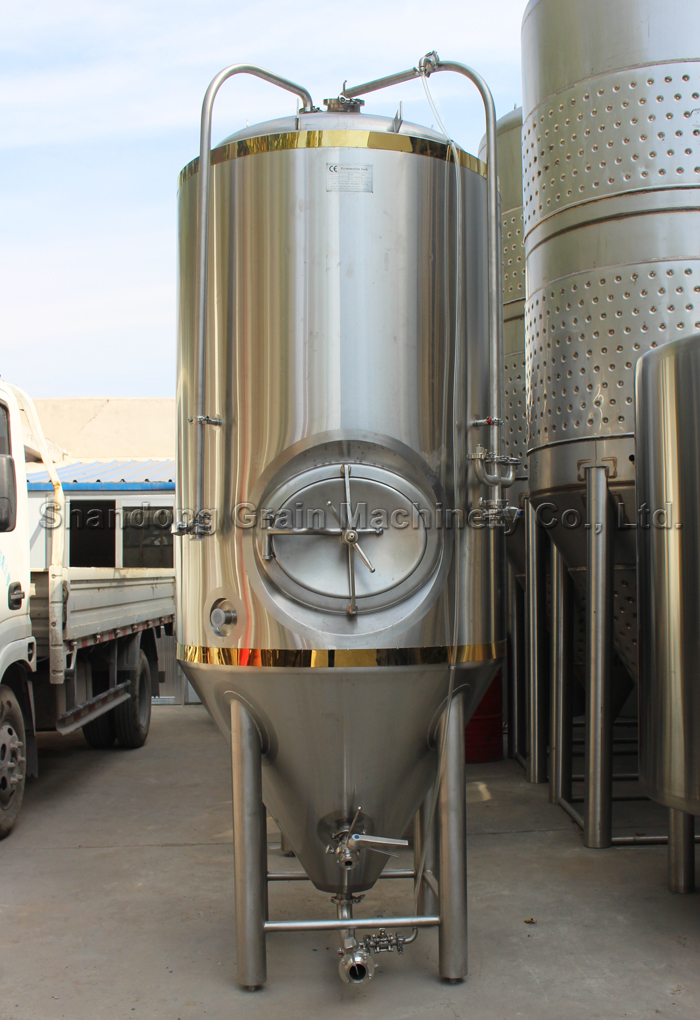

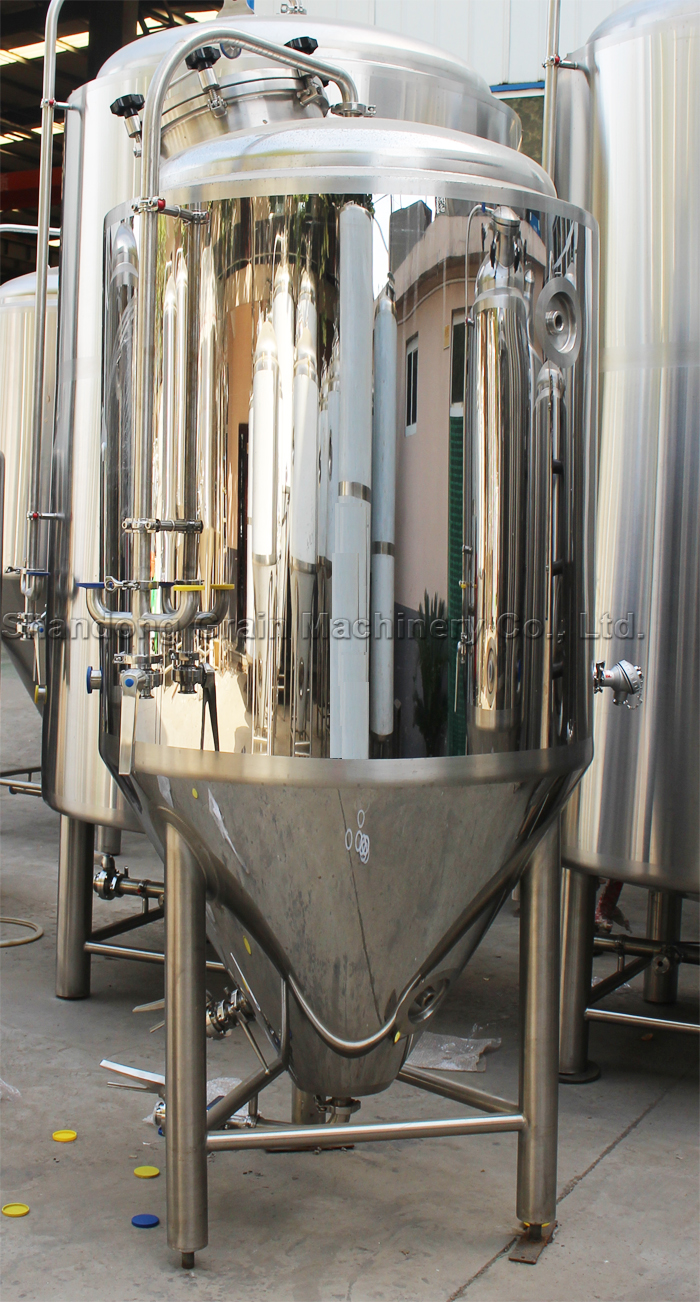

500L Conical Fermenter With Mirror Appearanced And Top Manhole

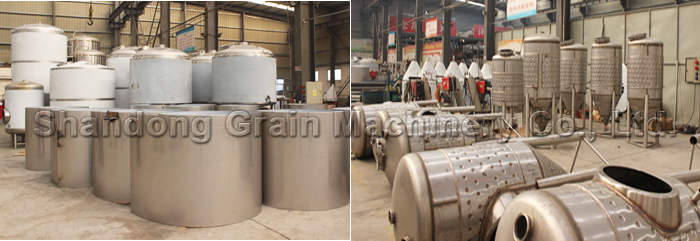

Manufacturing Of Stainless Conical 5000 Liter Fermenter For Sale
1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the
TIG welding with pure argon gas shield. We also increase the using amount of gas when welding,
so the quality of the welding line is more higher.
2.Dimpling: We adopt dimple plate rather than belt for glycol jacket, since it can increase the cooling area and
improve the speed of cooling. The most important thing in brewing process is to avoid contaminating,
that is to say the most important thing in producing beer equipment is to polish the inside tanks to 0.4~0.6 μm
Without dead corner.
3.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to
make sure there is no dead corner. And we adopted passivation and acid pickling which will make our tanks with higher accuracy. You need not worry about there will be some bacterias remained after cleaning.
a.) Project planning and layout design services.
b.) Free debugging instruction of equipment until everything is functional.
c.) Compelete and traceble order management.
d.) Training of equipment maintenance and operating personally.
e.) The remind of regular maintenance and maintenance register consultant.
f.) 3 Years warranty.
Grain Machinery is the branch of Tiantai Beer equipment who enjoys a high reputation in the circle of brewery
equipment in China. As one of the most professional manufacturers,Grain is recognized not only for high quality
equipment,but also for professional design,compact layout,competitive price and superior custom service.Our
equipments allow brewers to make their perfect craft beer with a lower cost and a higher effective brewing process.
More than 15 years experienced team in brewing equipment has been joined in when the company was founded. This
warrants that we helped brewers establishing microbreweries or brewpubs to brew their dream beer with us. Every
system we offered could be custom tailored to your specific needs.In order to meet the increasing requirement of
quality and development,Grain also invests heavily in technology revolution every year so that we can keep the highest
and most consistent quality.
Q: Are you trading company or manufacturer ?
A: We are manufacturers. We have our own factory to manufacture the equipment.
Q: How long is your delivery time to start a brewery ?
A: Within 60-80 days after confirmation of the initial payment. Holiday will be automatically postponed to meet after the holidays.
Q: What is your payment term?
A: 40% of the whole amount pay as down payment by T/T before production; The balance 60% paid before shippment after inspection by T/T.
Feel free to leave message below to learn our latest
quotation and information for Stainless Conical 5000 Liter Fermenter For Sale.
