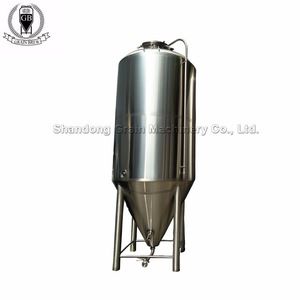

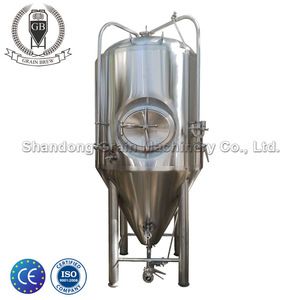

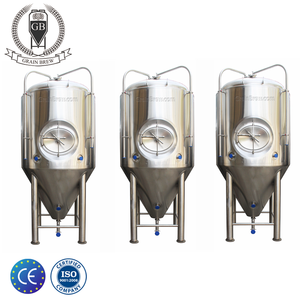

Stainless steel beer fermentation tank for microbrewery

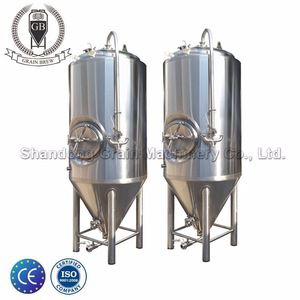

Stainless steel beer fermentation tank mostly used in microbreweries. Our standard commercial conical fermenter with 60 degree bottom cone and side manhole. The standard vacuum relief valve at 2 bar. We accept customization if you have any special requirements.
Specification
Stainless steel beer fermentation tank | |
Function | Wort fermentation or maturation |
Tank capacity | 2000L(+25%headspace minimum) |
Interior shell | SUS304 full welded,TH=3mm |
Exterior shell | SUS304 full welded,TH=2mm |
Insulation | High density polyurethane foam;TH=80mm |
Glycol jacket | Dimpled plate on cone and side |
100% TIG welding with pure argon gas shield | |

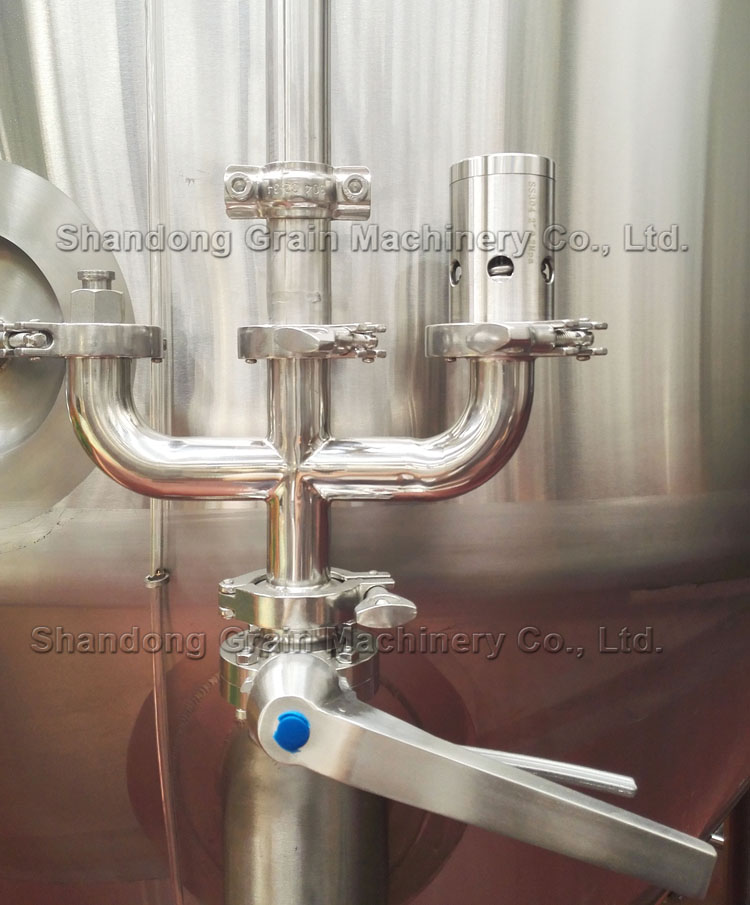

TC connection CIP arm with 360 degree coverage spraying ball |
-Full sanitary metallic sealed sampling valve
-Mechanical safe valve PVRV 2 bar on CIP arm
-Hydraulic shock pressure guage on CIP arm
-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
-Sanitary side mounted manway with pressured door

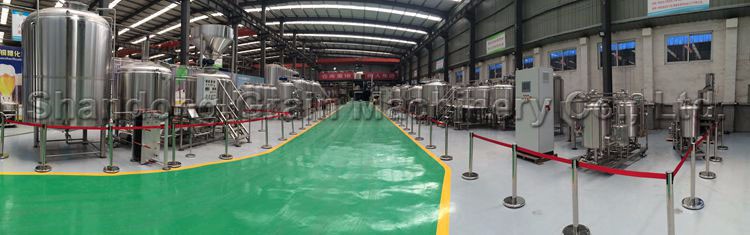

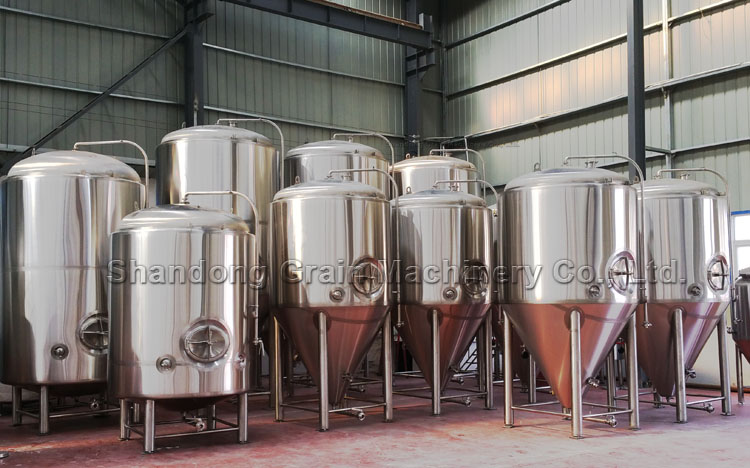

Shandong Grain Machinery Co., Ltd. is a professional manufacturer of beer manufacturing equipment.

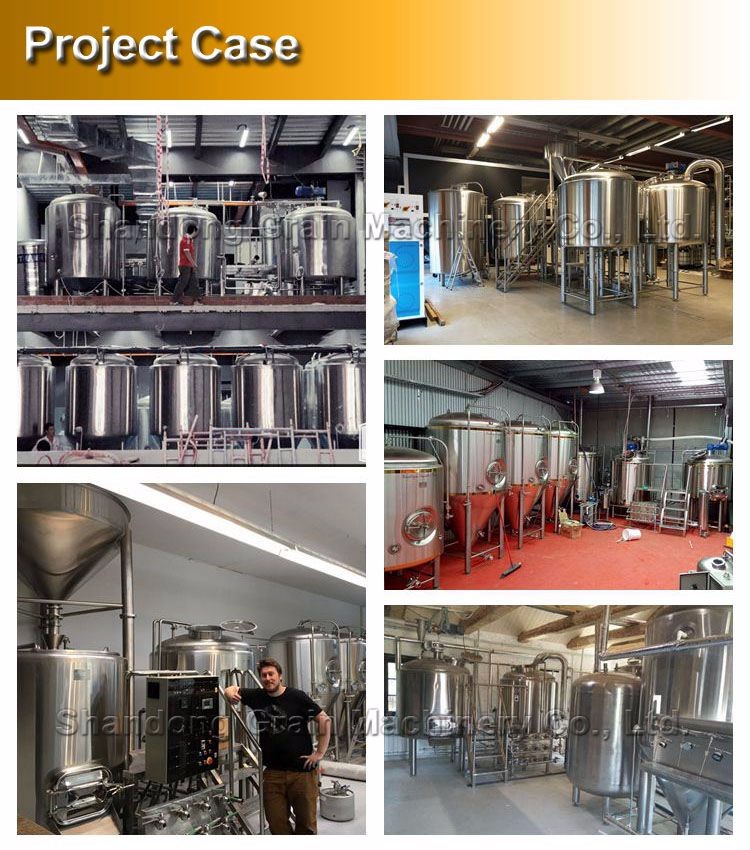

Ourteam has 15 years experience in installing our brewery systems in brewpub, bar, restaurant, microbrewery, regional brewery etc.
We have exported to USA, Canada, Korea, Japan, Russia, Australia, England, Italy,Spain, Romania, Belgium, Norway, Poland, Sweden, Serbia, Singapore, South Africa, South America etc.
Grainbrew company supply all-round service including layout design,
customized equipment design,transportation, installation and training.
All details are taken the humanity and brewmasters’ intention into consideration.
Reliable quality is guaranteed by professional technical support, advanced processing equipment, strict quality control and complete personnel training.
Insisting the idea that craft beer brewing should be in a popular style, we keep our system affortable, trying to help more brew masters to approach their dream.
