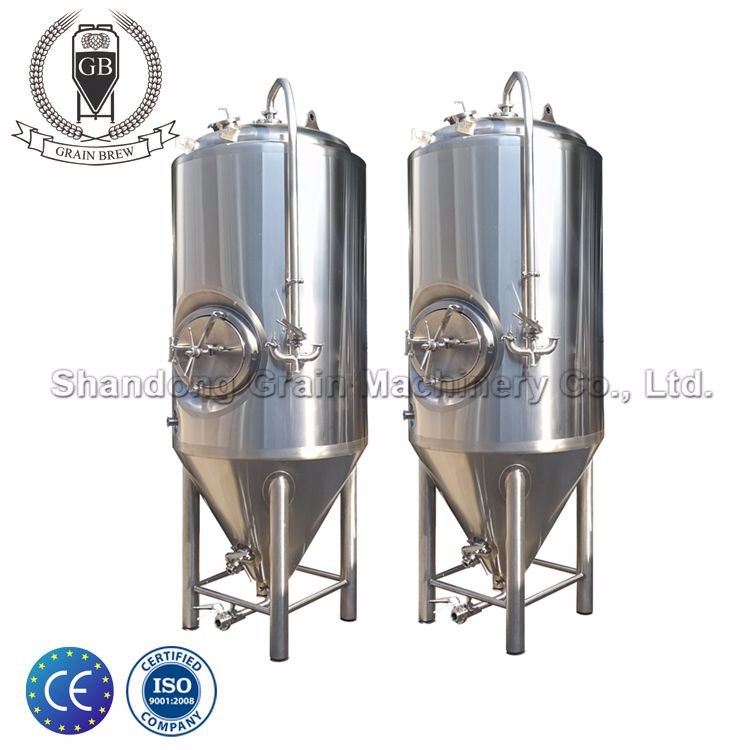

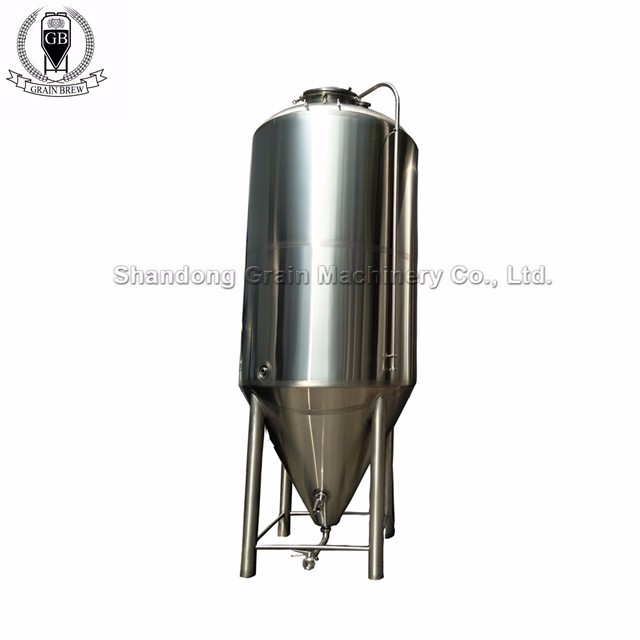

Beer Fermentor of beer brewing equipment
Beer fermentors for microbrewery is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer.
Grain fermenters can be individually temperature controlled through glycol jackets(single wall tank is available) and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. When calculating your fermenting and lagering capacity and configuration, you can choose a tank for your brewing process.
Main Features of Beer Fermentor of beer brewing equipment
1) Dished head and 60 degree cone bottom.
2) Hydraulic shock pressure gauge,Mechanical safe valve PVRV 2 bar on CIP arm.
3) Glycol Jacket: Dimpled plate on cone and side.
4) Rotating racking arm and port on cone with butterfly valve
5) Tri clamp discharge arm with butterfly valve.
6) Thermowell for high accuracy temperature sensor.
7) TC connected CIP arm with 360° coverage spraying ball
8) Dry hopping port 4'' TC with solid end cap
9) CO2 blow-off arm with butterfly valve

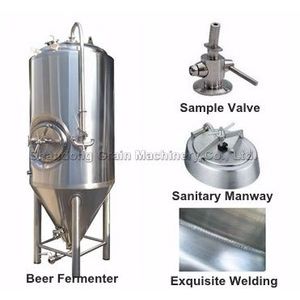

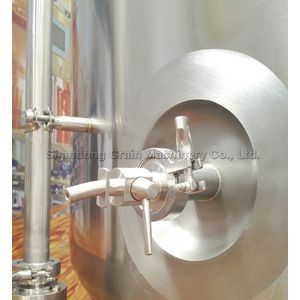

Sample Valve
Full sanitary metallic sealed sampling valve.

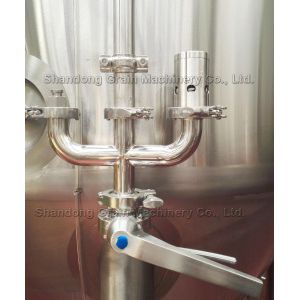

Cross for installing relief valve and pressure gauge

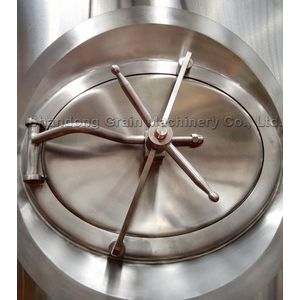

Sanitary side manhole
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
