Product specification | Small Sized Beer Fermenter | Copper Beer Fermenter | 1000L Beer Fermenter | 2000L Beer Fermenter | |
Material | SUS304 or copper | Copper | SUS304 | SUS304 | |
Capacity | Custom-design | Custom-design | Gross capacity 1000L+25% effective capacity 1000L | Gross capacity 2000L+25% effective capacity 2000L | |
Outer container | Material | SUS304 fully welded | Copper fully welded | SUS304 fully welded | SUS304 fully welded |
Thickness | 2mm | ||||
Inner container | Material | SUS304 fully welded | |||
Thickness | 3mm | ||||
Insulation | Material | Polyurethane | |||
Thickness | 80mm | ||||
Function | Wort fermentation or beer ripening | ||||
Polishing accuracy of the inner container | 0.4-0.6μm .No dead ends | ||||
Cooling jacket | Dimple metal plate(for cone and container both) |
System composition:
1. With strict water / air pressure test,air pressure test for 48 hours before delivery.
2. Cooling jacket with strict water / air pressure test.
3. Dished head, thickness is 2.5mm, Cone angle can be custom-design.

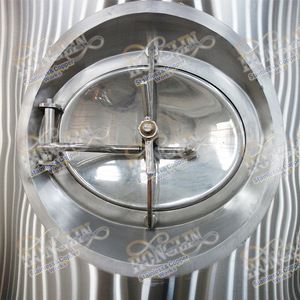

4. Sanitary top pressure manhole on top.
5. 360°full coverage CIP cleaning arm.
6. Carbon dioxide exhaust arm with butterfly valve.
7. Mechanical pressure regulating valve.
8. Liquid level gauge with soft pipe.
Description:
1. Warranty: 5 years for the main equipment(tank);1 year for electronic components.
2. Installation/Operation/ Service/ Maintenance Manual: Provided In English.
Pre-Sales Service | |
FAQ | Frequently Asked Questions about starting a brewery |
Consumption Calculations | To help the buyers figure out every cost |
Design | Drawing with full dimensions and nozzle orientation Layout of the whole systerm based on client’s place |
Video introduction | Showing and teaching how to operate the whole system |
After-Sales Service | |
Installation | Engineers available to service machinery overseas.The customer will be asked to provide room, board, round-trip transportation, and a nominal daily subsidy. |
Technical support | Solving every question happened in operating the equipment. |
Training | Providing full recipes and tutoring of beer brewing. |
Upgrading support | Available to help clients to expand their breweries by sending replaceable spare parts, adding tanks, re-designing layout anytime. |
1. Q: Are you a manufacture?
A: Yes, we’ve been in producing, exporting and installing brewery equipment for 12 years.
2. Q: Have you sold equipment to our country before? Which brewery is it?
A: We have 300+ world-wide customers, covering every continent. With your detailed request of brewery, we’ll provide you contacts for calling and visiting our successful brewery projects.
3. Q: What kind of equipment should I choose?
A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.
4. Q: Is customize available?
A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.
5. Q: Will I get design or solutions for my brewery?
A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.
6. Q: How should I install the brewery?
A: You will get our full and accurate online guidance, including video, picture instruction, etc. If you need a paid installation service, our experienced technicians will handle the whole process as a turnkey project.
7. Q: Is your system manual or automatic?
A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.
8. Q: How should I pay?
A: After signing contract, 30% by T/T in advance and balance before shipment.
9. Q: How long does the production take?
A: Generally 30 working days since receipt of down-payment.
10. Q: What about quality warranty?
A: We provide 10 years warranty for main equipment, and 2 years for electric devices.
