Industrial Fermentor / Fermenter/Industrial Stainless Steel Fermentation Tank 1000L
Technical specifications:
200L equipment
| Items | Model | Dimension | Material | Quantity | technical specifications |
| Mash tun | 200L | 910×1870mm | inner tank:SUS304; outside cladding: SUS304 or red copper | 1set | effective volumn 200L; insulation thickness:80mm; inner tank thickness:2.0mm; other technical details:2.0mm cladding surface wire drawing finish; welding seams brushed. steam heating way(steam heating jacket, 0.25m2 heating area) or electric heating way( total power of the electric tube :12kw), mechanical agitation :cycloidal reducer, motor power 0.37kw, speed ratio:1:29 |
| Lauter tun | 200L | 910×1870mm | inner tank:SUS304; outside cladding: SUS304 or red copper | effective volumn 200L; insulation thickness:80mm; inner tank thickness:2.0mm; other technical details:2.0mm cladding surface wire drawing finish; welding seams brushed. mechanical agitation :variable frequency control, cycloidal reducer, motor power 0.37kw, speed ratio:1:43 | |
| Malt Mill | 80Kg/h | Q235 | 1set | two roller mill, carbon steel shell, alloy rollers complete with motor, belt and pulley, motor power 1.1kw | |
| electric steam generator | LDR0.026-0.7 26kg/h 380v18KW | water softening and automatic water refill devices | |||
| Wort Pump | 1m3/h,16m | stainless steel | 1set | 380V,0.55kW,variable frequency control,inlet D38, outlet D32 | |
| Heat Exchanger | BR0.05/3 3sq.m. | 450×230×550 | Q235/stainless steel | 1set | two stage cooling with 4 flows, glycol water inlet & outlet G3/4,city water inlet G3/4, city water outlet D32 tri-clover connection, wort inlet & outlet D32 tri-clover connection, |

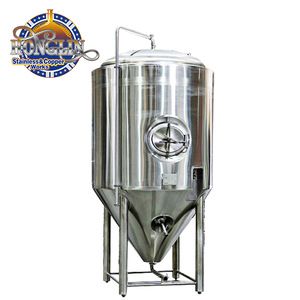

| fermentation tank | 200L | 660×2175MM | SUS304 | 6set | effective volumn 200L; top dished head, bottom cone, insulation thickness:60mm; inner tank thickness:2.0mm; dimple type glycol jackets, PU foam insulation.hop additional port,top flange cover, thermometer well, rotatable CIP spray ball, CIP arm, sample valve, mechanical pressure relief valve, pressure gauge, glycol solenoid valves, top safety valve, bottom drain port and beer outlet, associated valves and fittings stainless steel legs, with screw assembly to adjust leg height. |
| Yeast Adding Tank | 2L | SUS304 | 1set | effective capacity 2L,inside polished,outside sand blast, associated valves and fittings | |
| Glycol Tank | 500L | 960×1720MM | SUS304 | 1set | effective volumn 500L; insulation thickness:80mm; inner tank thickness:2.0mm; other technical details:2mm cladding surface wire drawing finish; welding seams brushed. Sandwich dark line tube, maitreya plate cooling jacket |
| Glycol Chiller | ZD-B-ZL-4-2 8200w/h(4HP) | 890×670×900 | assembly | 1set | Refrigeration capacity 8200W (4HP), air cooling unit, CE approved, environment protecting Freon, 3.5KW |
| Sanitizer Tank | 50L | 1300×600MM | SUS304 | 1set | effective volumn 50L; thickness of the tank:1.5mm; other technical details:interior & exterior 2b finish, welding seams brushed, associated valves and fittings |
| Caustic Tank | 50L | 1300×600MM | SUS304 | 1set | effective volumn 50L; thickness of the tank:1.5mm; other technical details:interior & exterior 2b finish, welding seams brushed, associated valves and fittings |
| Mobile Trolley | 1300×600MM | SUS304 | 1set | ||
| CIP Pump | 3m3/h, 18m | power 0.75kw, inlet D38, outlet D32, tri-clover fittings connection dimensions 500×250×350mm | |||
| Control Cabinet | 600×350×1500 | SUS304 | 1set | power supply, temperature display centrally, brewhouse manual control, fermentation tanks separate control with digital controller separately variable frequency control for motors, pumps, etc | |
| Touch Screen | 1set | TPC7062KS, 24V DC, centralized temperature display | |||
| Wires | assorted | associated control wires, signal wires and wire conduits | |||
| Digital Controller | C2015 | assorted | separate control for each fermentation tank, temperature local display & control on controllers |
PRODUCT FEATURES:
1)Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow plow knife
5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6)Material includes stainless steel 304, 316 and red copper
Packing& delivery is very important during the orders, can promise the equipment with good condition from seller to buyer. In order to promise this, we will do as follows:
1.Wooden case or steel frame.
This method is very good for loading but need extra cost. Also because of the dimensions of the tanks and container, maybe some tanks cannot use them, but can be confirm when talking about the order.
2.Generally will use the stretched film, this is free and also can avoid the scratches. Will use the carton to cover all of the accessory.
1.Pre-sales service
Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly.
We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.
We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.
We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.
2.After-sales service
When loading the equipment, we will take photos and show them to the client to confirm everything in the container already.
Another important issue is installation,2 options can be chosen by the clients as follows:
1).We can send the engineer there for helping the client install debug the equipment, if it is necessary, the engineer also can teach the client how to brewing beer.
2).We can provide the piping diagram and wire diagram. They are useful for installing. Then the client can install the equipment by themselves.
3).The sales will contact with the client all the time until the equipment running normally. Once the client need any assistances or need any accessory, the sales will provide them soonest.
