Alibaba golden supplier commercial horizontal medical centrifuge

Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption.

Technical Feature

  • Laboratory Centrifuge
  • TOPTION
  • D3024
  • Shaanxi, China (Mainland)
  • Medical centrifuge
  • PCR8*4, other type optional
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~600

PRIMARY PARAMETERS

Classification
Laboratory Centrifuge
Brand Name
TOPTION
Model Number
D3024
Place of Origin
Shaanxi, China (Mainland)
Product name
Medical centrifuge
Capacity
PCR8*4, other type optional
Max speed
15000rpm (200-15000rpm)
Speed increment
10rpm
Max RCF
21380xg, increment
Motor
Brushless DC motor
Power
Single phase, AC220V-240V, 50Hz/60Hz
Warranty
24 Months
Certificate
CE, ISO, cTUVus FCC MCA
OEM
Contact now

DETAIL DESCRIPTION

Product Description

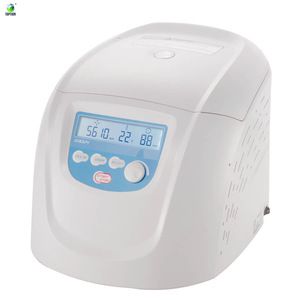

Alibaba golden supplier commercial horizontal medical centrifuge

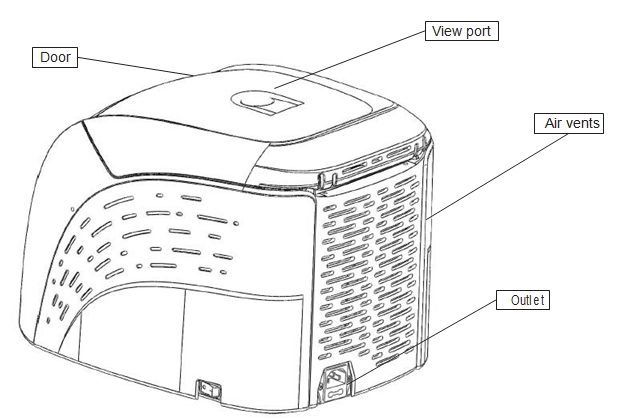

1. Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption.


2. Unique temperature display appropriate for gentle handling of sensitive samples.

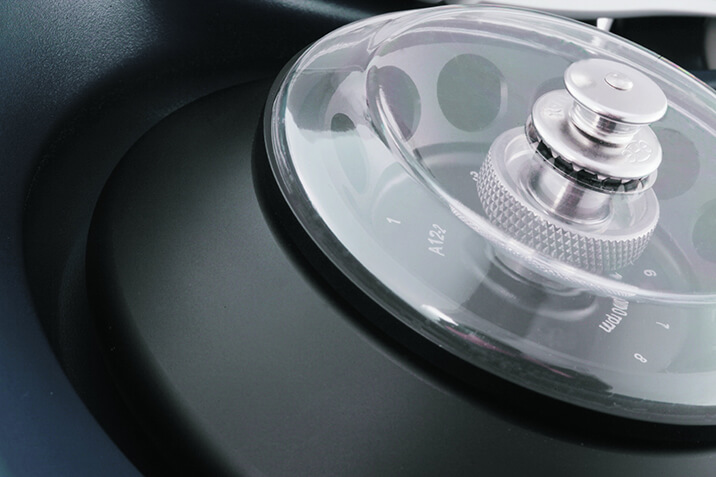

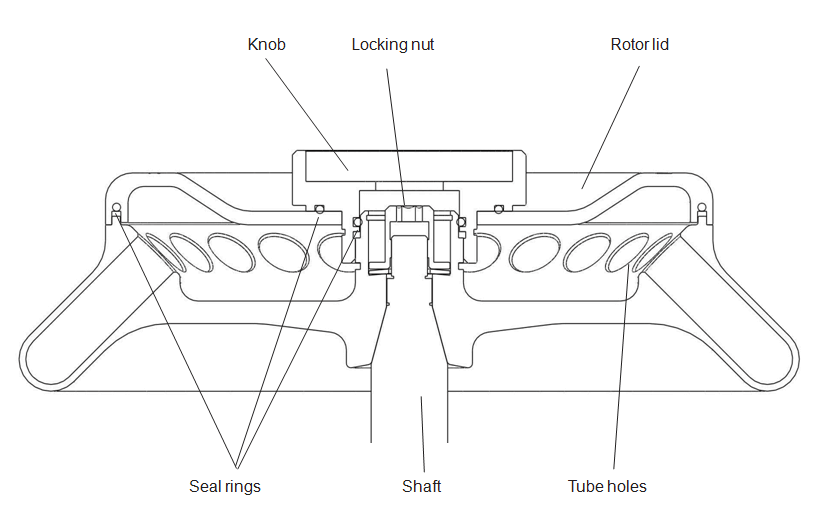

3. Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination.

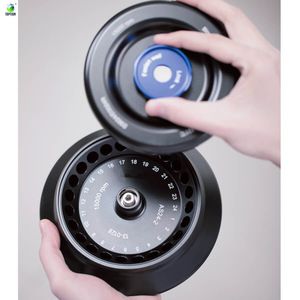

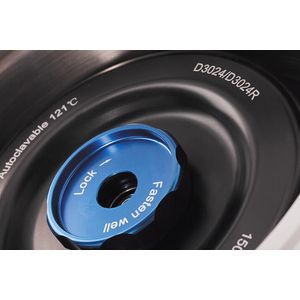

4. High strength aluminum alloy rotor can be fully autoclaved for unlimited service life.


5. Four rotors are optional complete with 24 places 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters.

Technical Parameters



 Lab centrifuge specifications

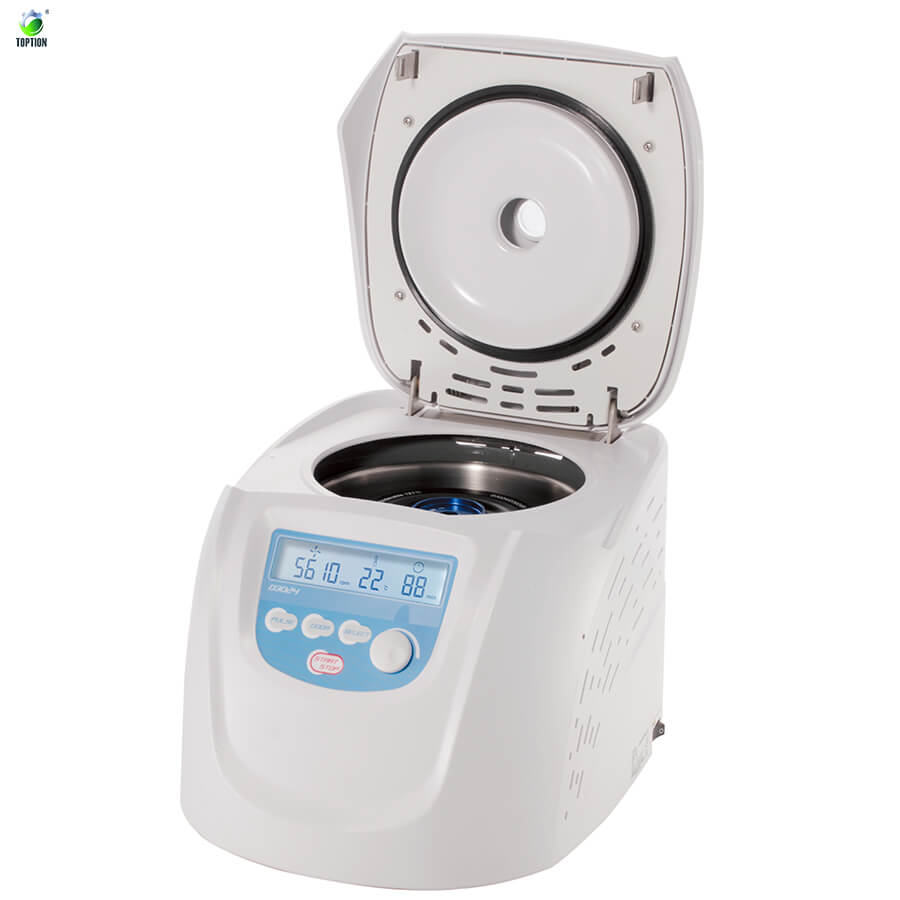

D3024 high speed medical centrifuge

Max. Speed

15000rpm(200-15000rpm),   increment:10rpm

Max. RCF

21380xg,    increment:10xg

Speed Accuracy

±20 rpm

Temperature Range

-20oC-40oC

Rotor Capacity

5mL*18, 5mL   culture tube*12 0.2mL/0.5mL/1.5mL/ 2mL*24,
  0.5mL*36, PCR8*4

Run Time

30sec-99min/Continuous

Motor

Brushless DC motor

Safety Devices

Dual door interlock, Over-speed  detection, Over-temperature detection, Automatic internal diagnosis

Power

Single-phase,
  AC220V-240V, 50Hz/60Hz, 10A, AC110V-120V, 50Hz/60Hz, 10A 400W

Acceleration
  /Braking time [Sec]

25s↑25s↓

Dimension   [D×W×H]

280*364*266mm

Weight

12kg

Certification

CE cTÜVus FCC MCA

Advanced   Features

Speed/RCF   switch; Short-time run function; sound-alert function

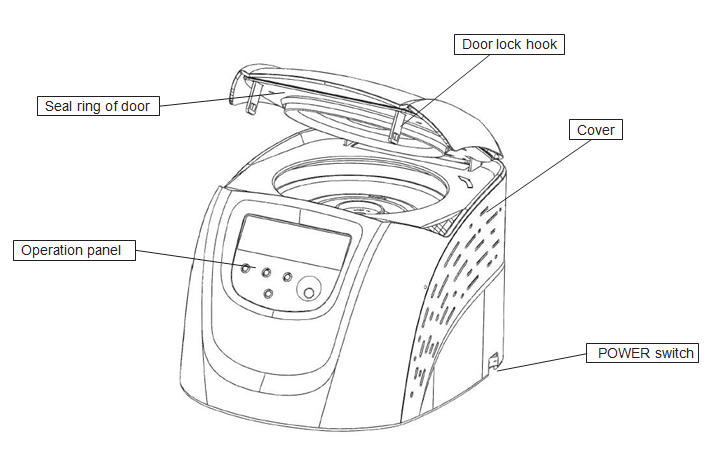

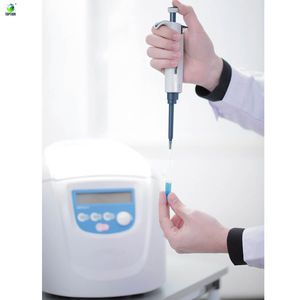

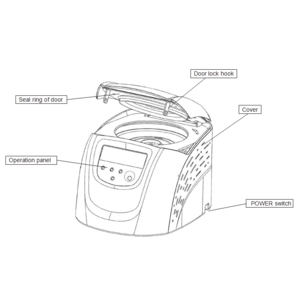

Detailed Images

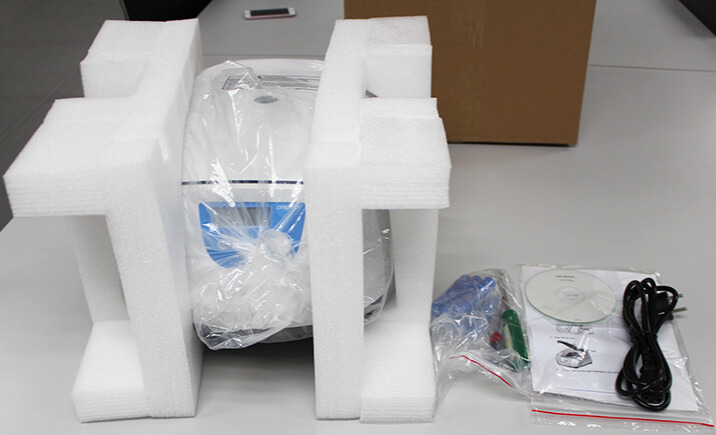

Packaging & Shipping

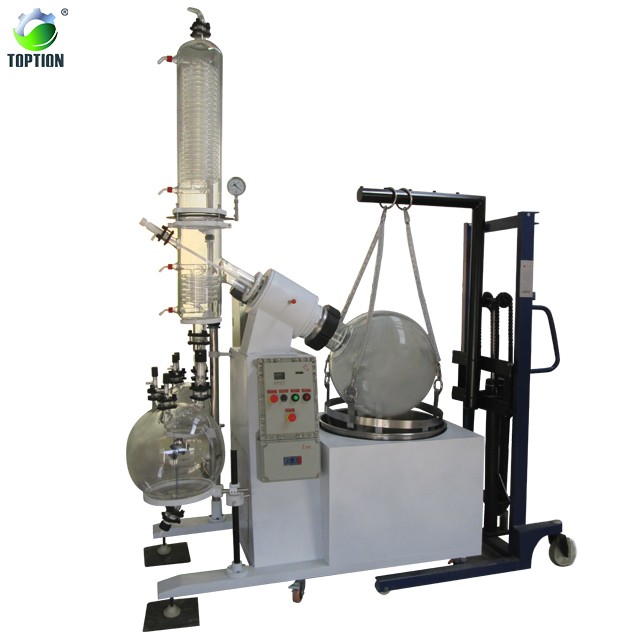

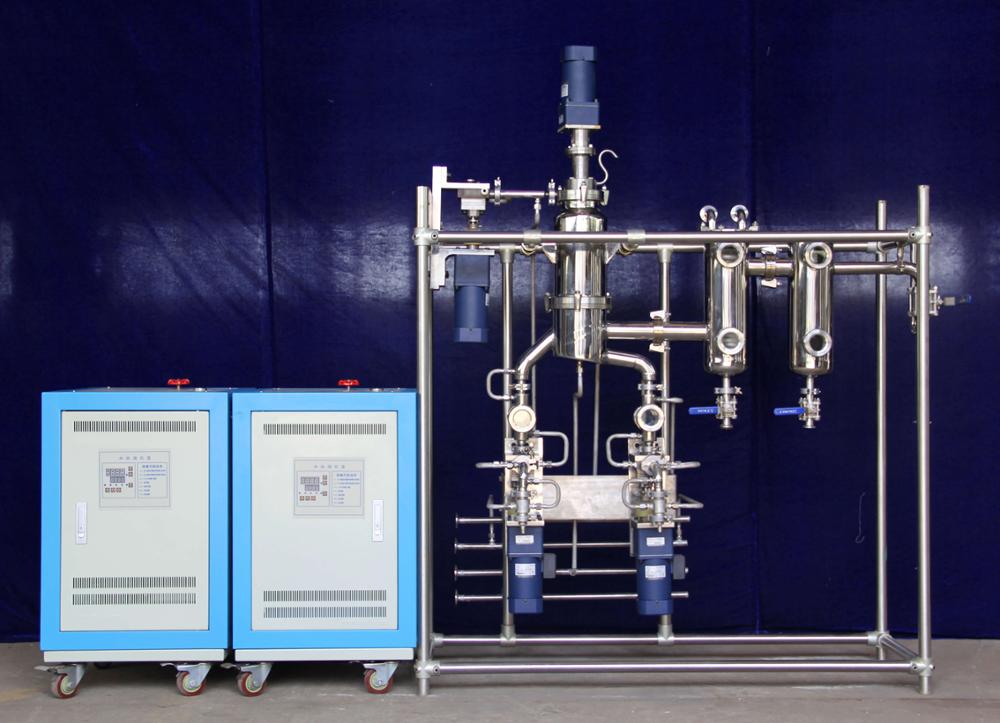

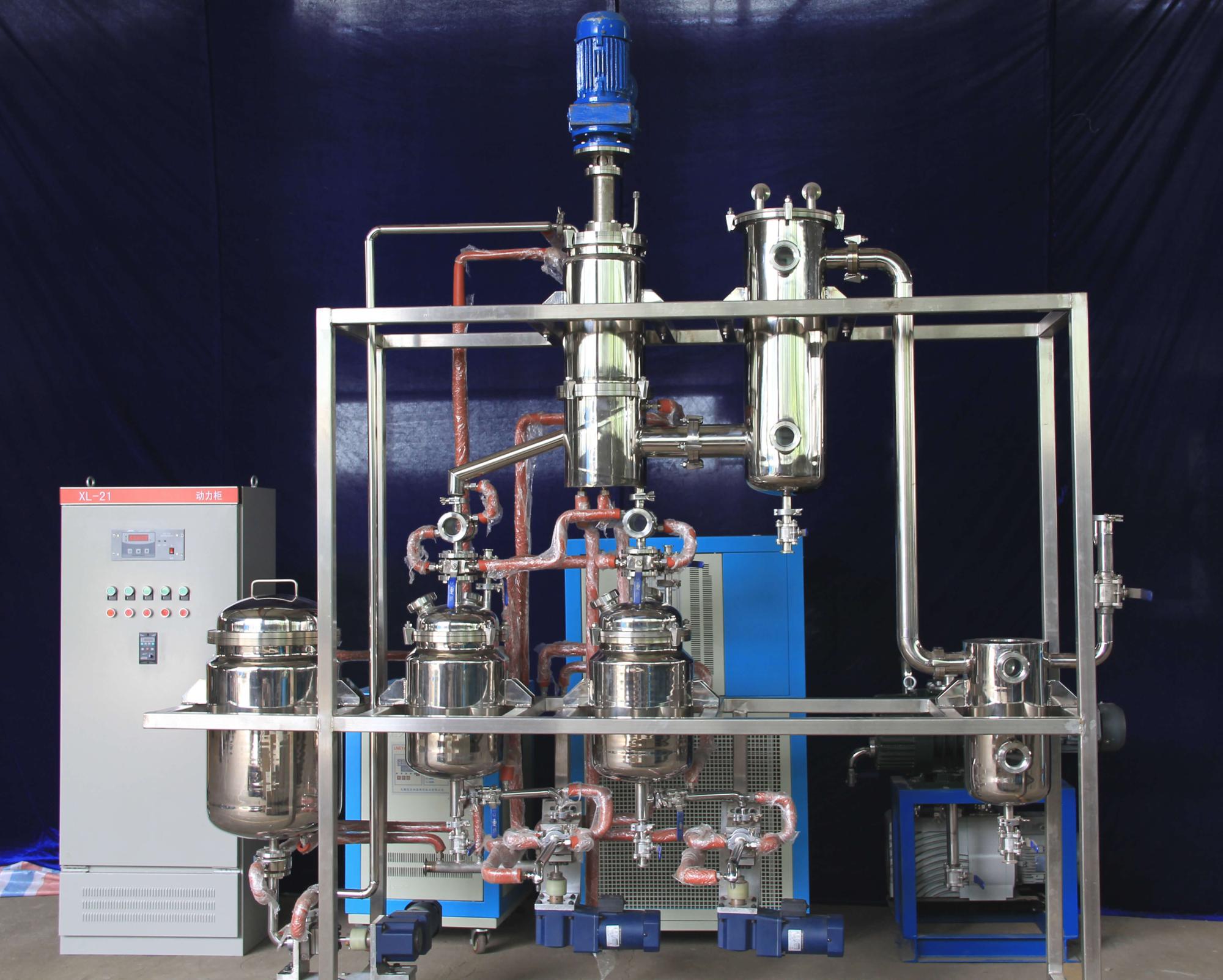

Related Products



Welcome to contact us for centrifuge factory visit and centrifuge customize: Alice



Tel: 0086-13891867045
Fax: 86-029-88990306 ext 8006
Skype/Wechat/Whatsapp: 0086 13891867045
Email: aliceAT toptionlab.com
Web: www.toptionlab.com
