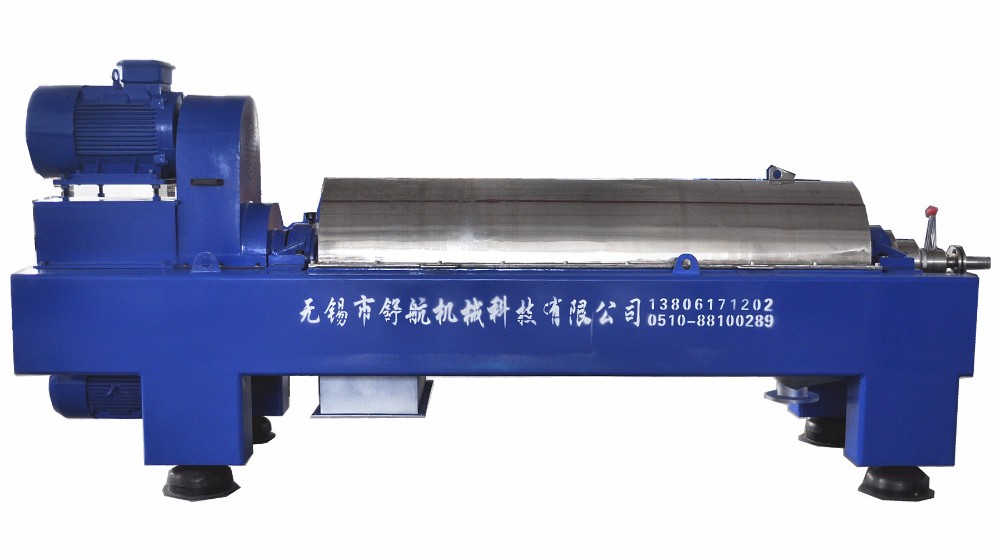

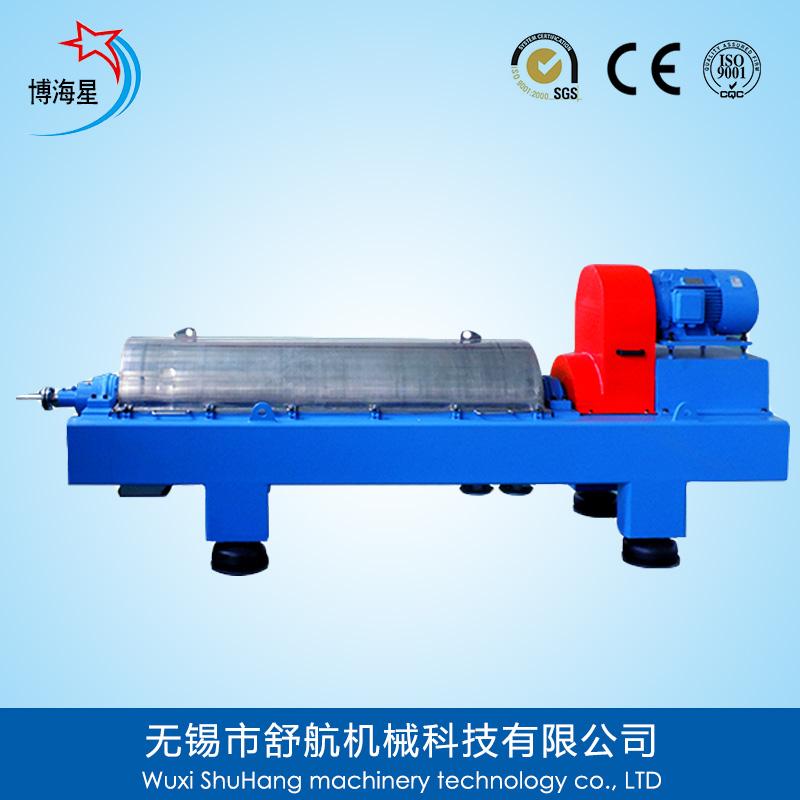

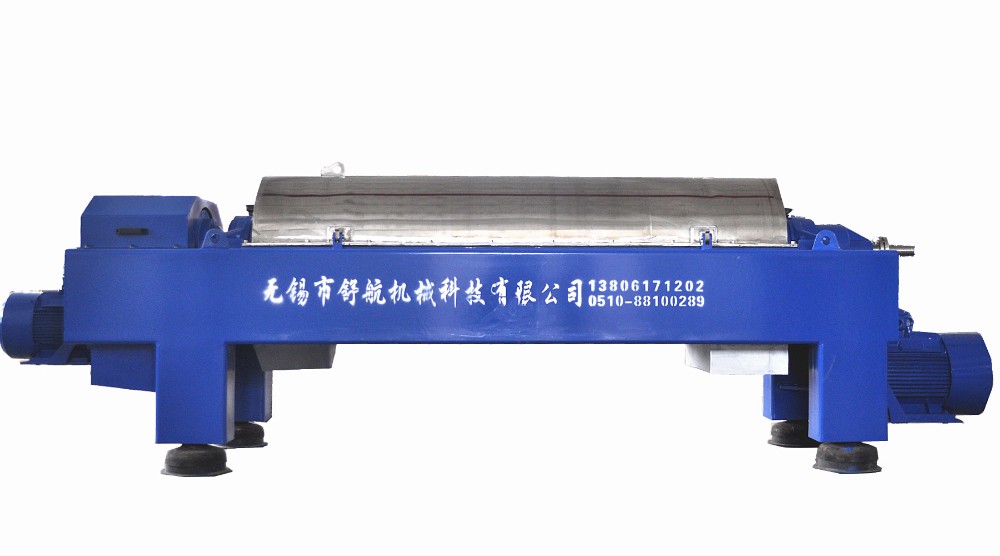

Operation Principle:

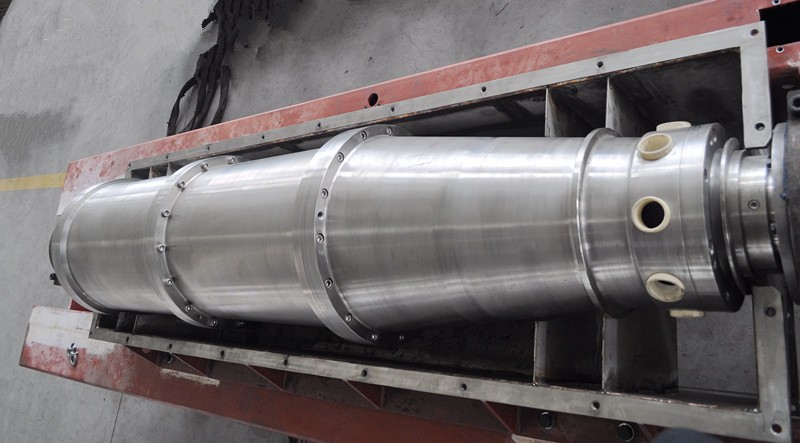

Drum and screw rotate at a certain different speed. The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor. The resulting centrifugal forces make the solids collect on the wall of the drum. Screw conveyor continual moving the solid to conical end of drum, discharge through discharge port after dried in the dry area, however, light liquid forms the inner layer and effusion through overflow port of drum, then discharge through liquid outlet port.
Main Features
1) Automatic solid liquid separating
2) Large treatment capacity.
3) High speed and efficiency.
4) Durable with long life.
5) 13 years manufacturing experience.
1. All our machines are tested before shipping out to ensure there is no potential problem.
2. Warranty: One year except man-made damage.
3. After-sale service: our engineers will be available to overseas
4. Packing details: waterproof plastic film and wooden case.
5. Delivery time: usually 15 days after the deposit.
All machine parts touch with materials are stainless steel (SUS304) made, to ensure the machine corrosion-resistant and durable.

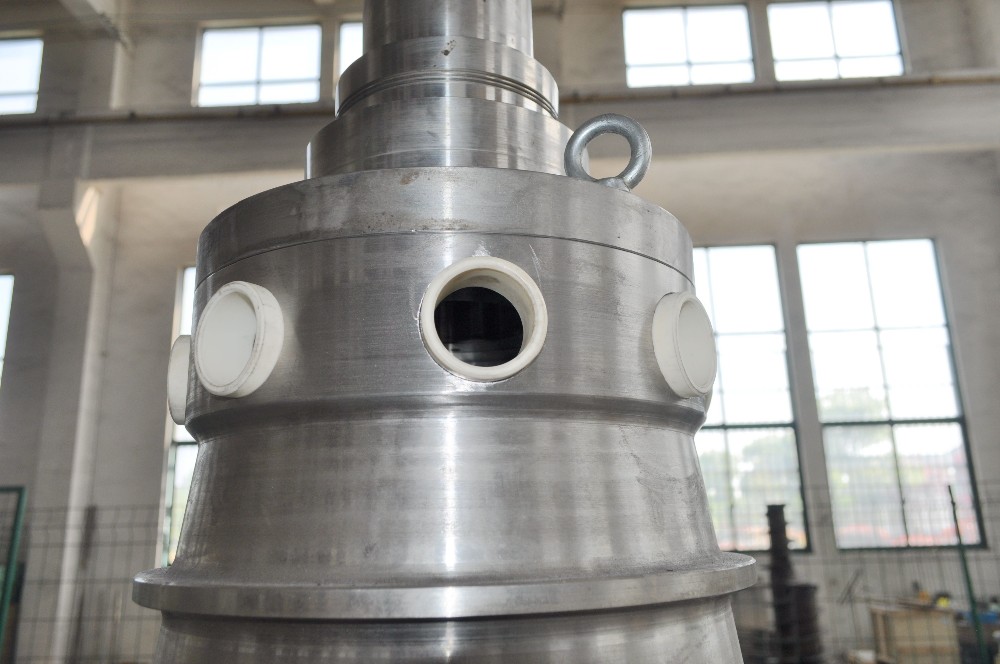

The solid discharge port is made of ceramic. It’s durable with long life.
Screw blade is tungsten carbide treated, with excellent wear resistance

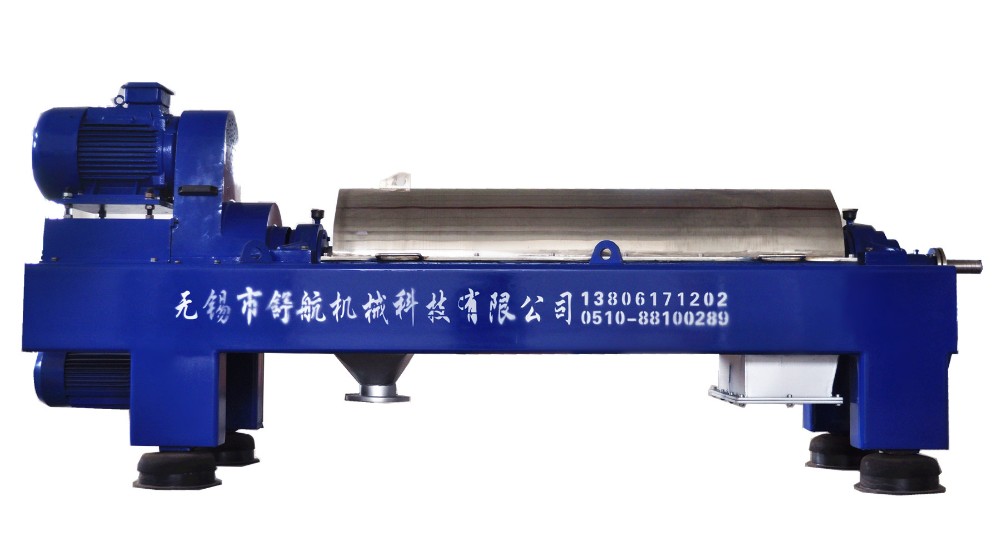

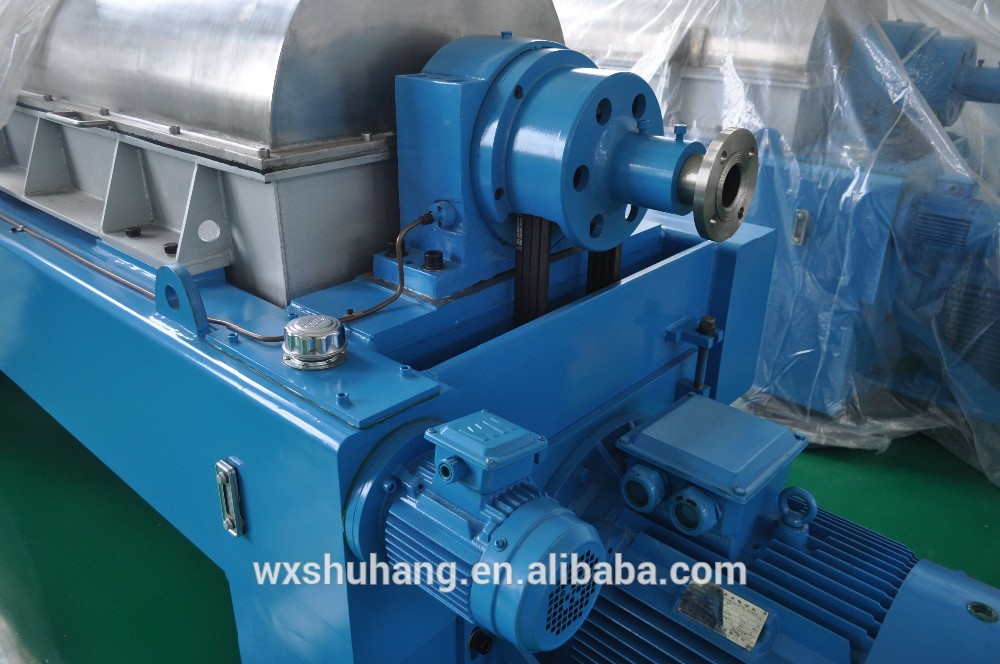

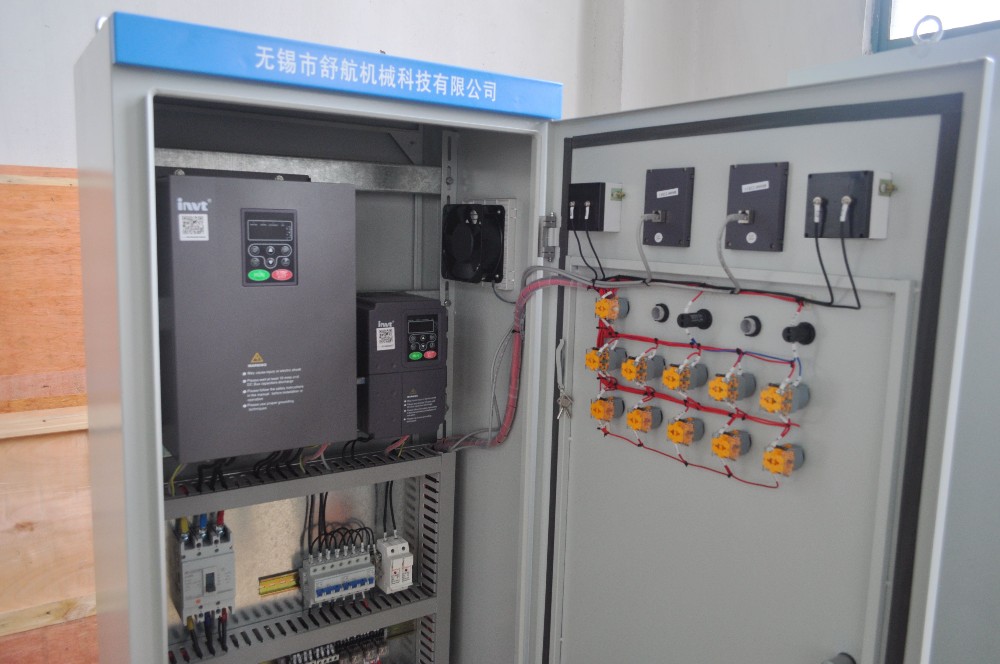

Double Motors and double frequency changers. The differential speed is adjustable

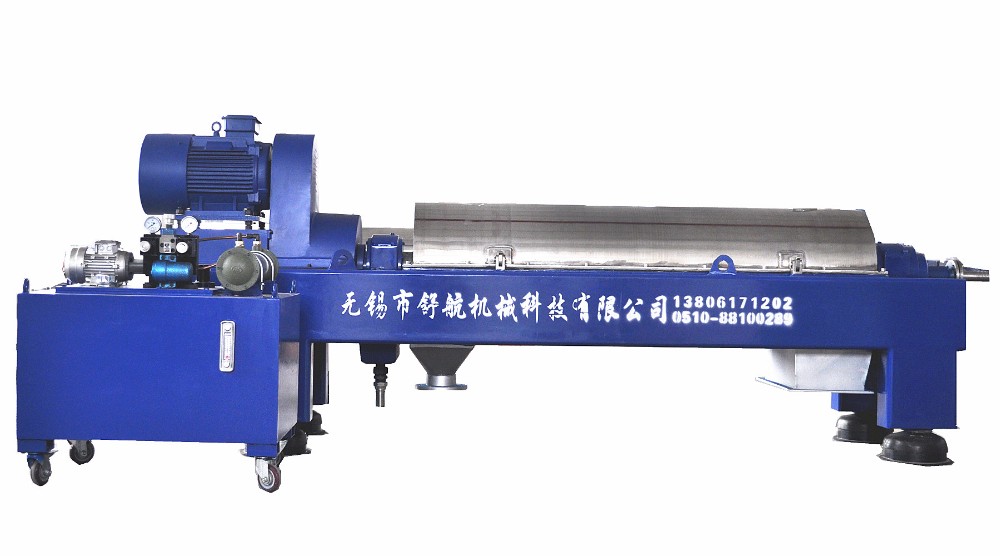

Thin oil lubrication system is available for high speed and continuous operating.
We designed the oil tank in the mainframe, the whole machine structure is more compact.

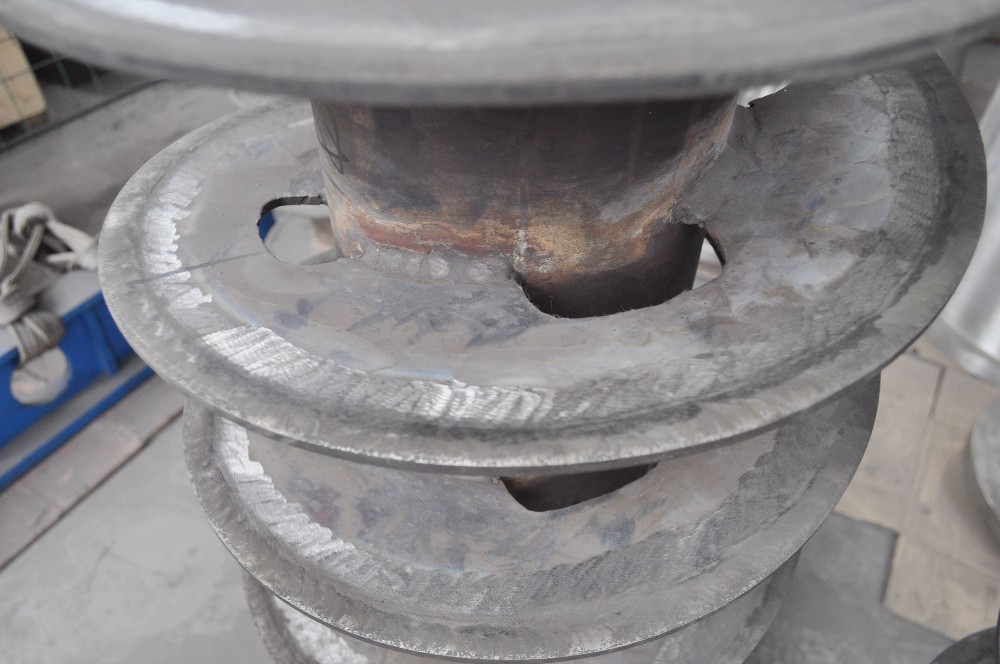

The screw blade is hollow designed, so that the solid phase is less disturbed by the flowing of liquid phase. This way, can enhance the dryness of the solid output, and enhance the working-efficiency.

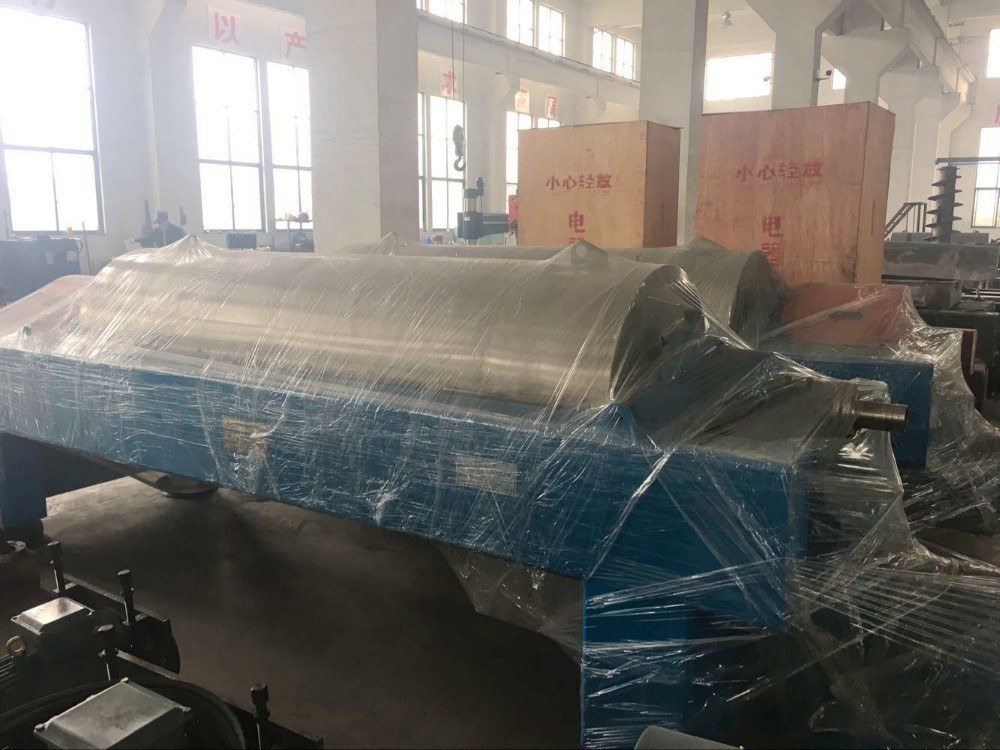

First waterproof plastic packaging
Then in to the wooden case

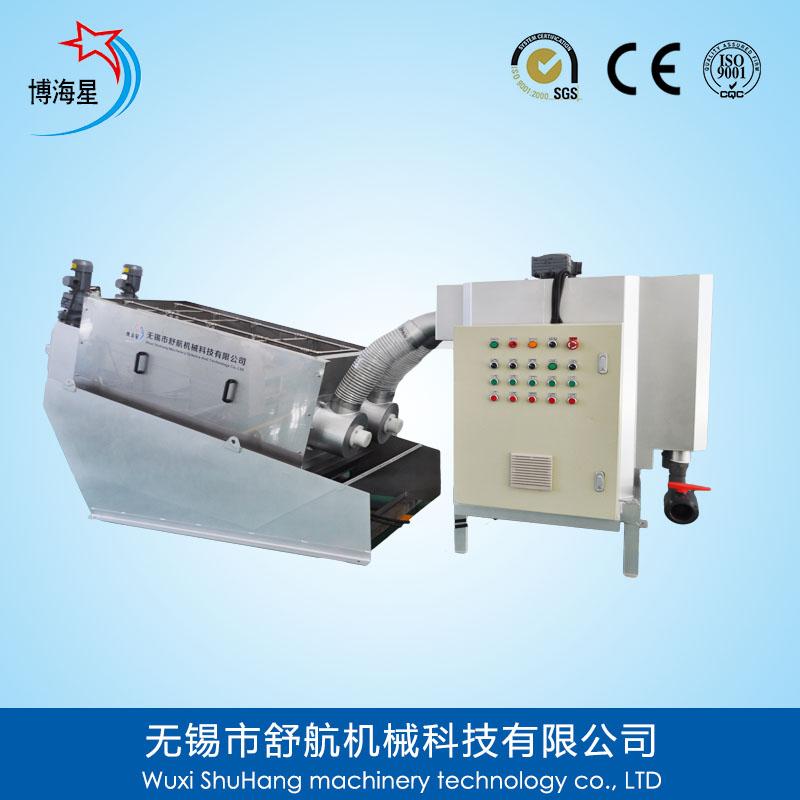

Volute Sludge Dewatering Machine
91.8% Response Rate

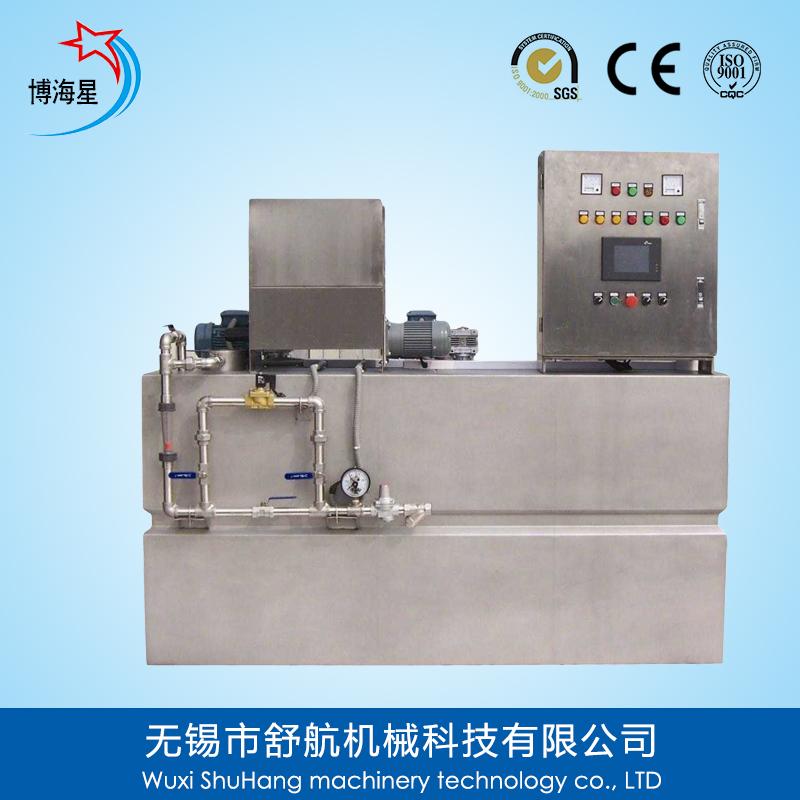

Automatic Polymer Dosing Machine
91.8% Response Rate
Three-Phase Decanter Centrifuge
91.8% Response Rate

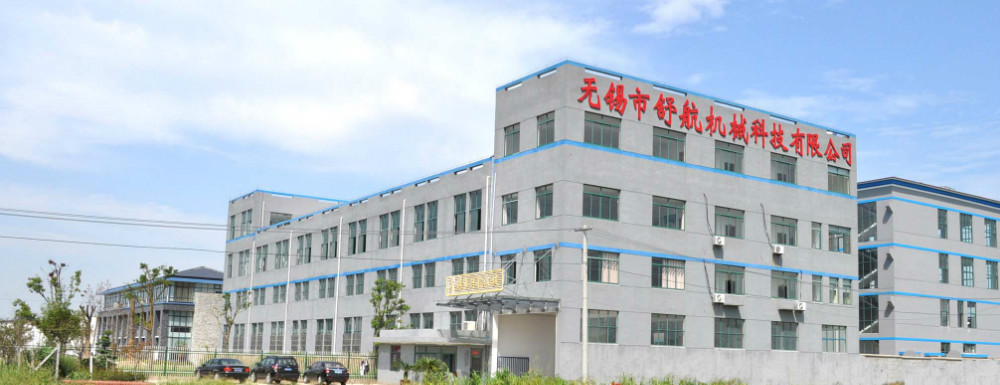

Company Profile
Wuxi Shuhang Machinery Science& Technology Co.,Ltd founded in 2005, focused on manufacturing sludge dewatering machine, decanter centrifuge machine, filter cartridge making machine etc.
The workshop covers an area of more than ten thousand square meters. There are advanced processing equipment and testing equipment such as CNC lathe equipment, machining center, high-speed dynamic balance machine, trilinear coordinates measuring instrument etc. Equipment more than 50 sets in total.

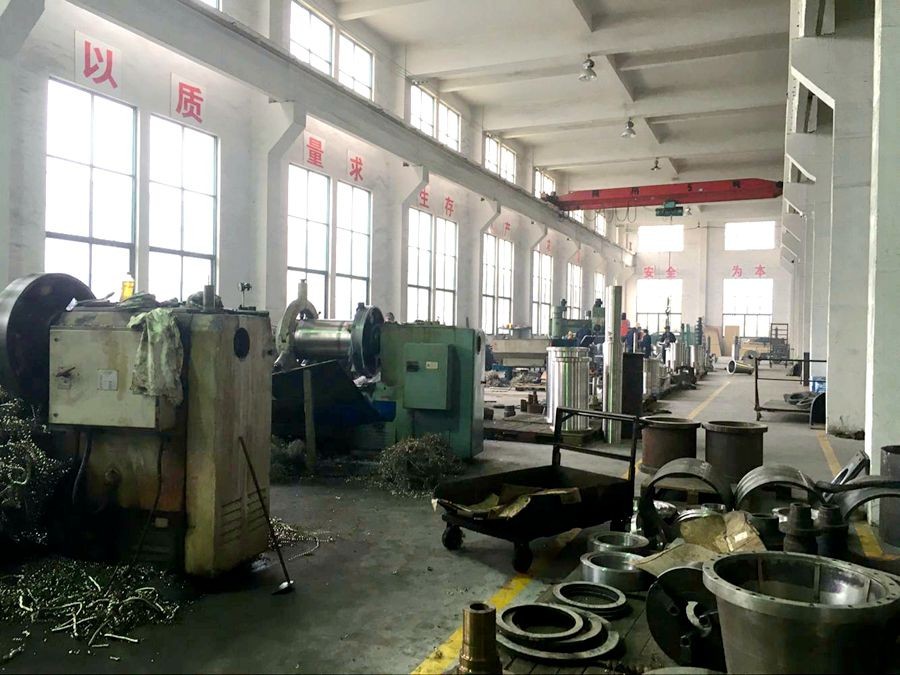

Workshop
Office
Lab

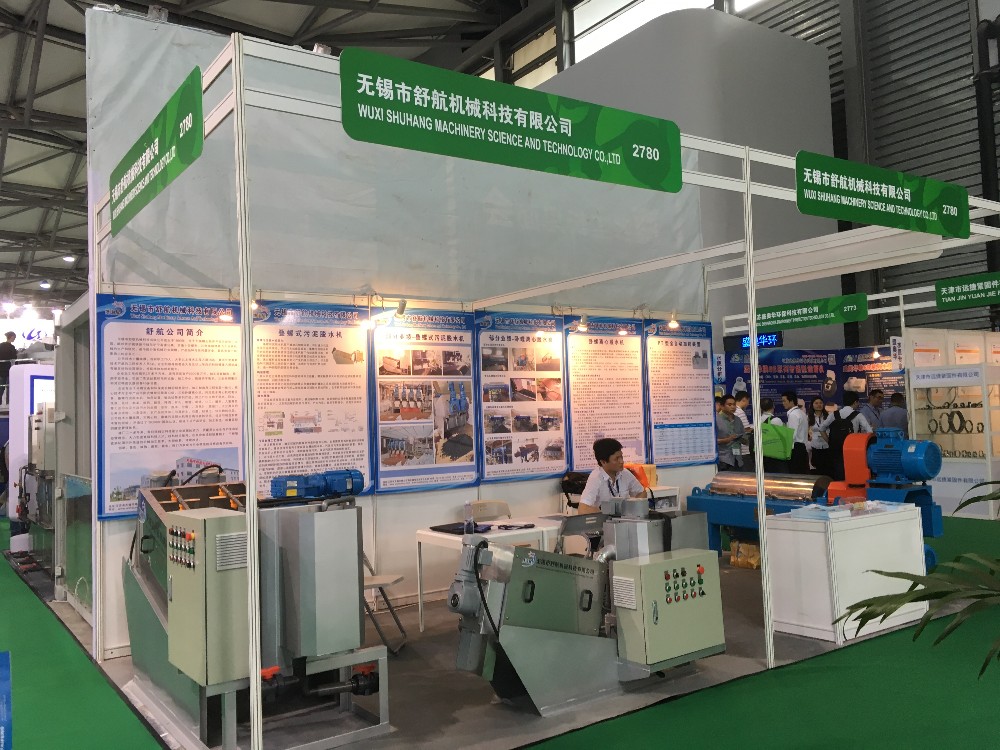

Exhibition

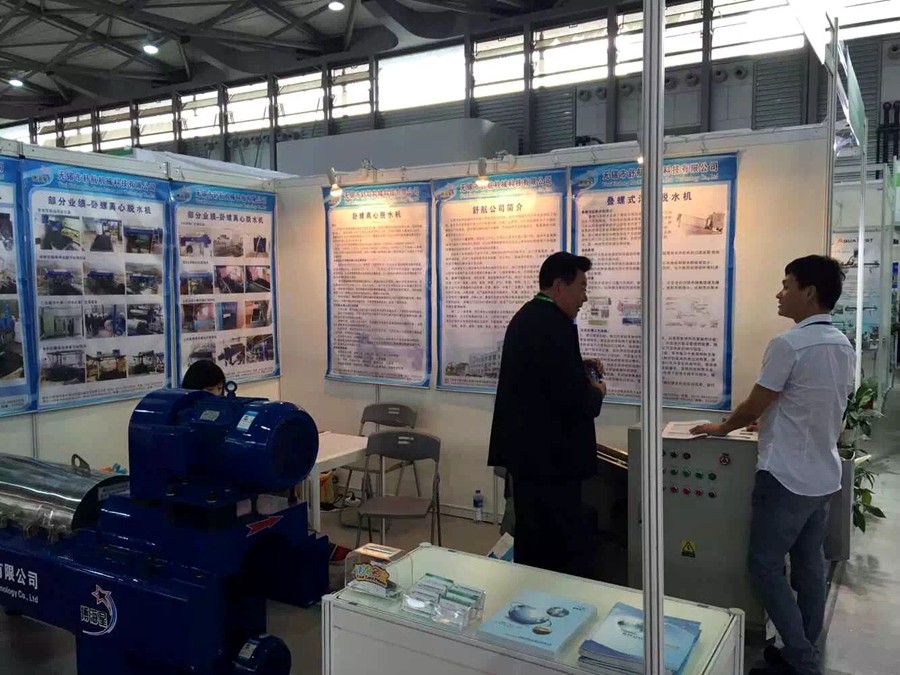

IE Expo 2016
Customer visiting
We are near Shanghai, 30 minutes by train.
Attn: Diana Zhu
Mobile/Whatsapp/Wechat: 0086-15861422661
China
