We supply high quality Double layers roller veneer dryer BG1815/1820/1829
Model | BG1815(Double layer) |
Width of feed inlet | 1500mm |
Thickness of panel/veneer | 0.3-5mm |
Working layers | 2 |
Power of heating motor | 12X5.5kw |
Power of cooling motor | 5.5kw |
Power of driving motor | 2X4.0kw |
Roller material | Chrome plating |
Drying temperature | 90 -130℃ |
Initial moisture | 50% |
Final moisture | 12% |
Heating medium | Steam or Thermal oil |
Daily out put | 20-30m3/24hours |
Size of body(LxWxH) | 26mX2.2mX2.4m |
Weight | 34T |
Voltage | 380V 50Hz |
Characteristic:
The machine is used for drying sliced or peeled veneer in the veneer production line with slicer or rotary peeler.

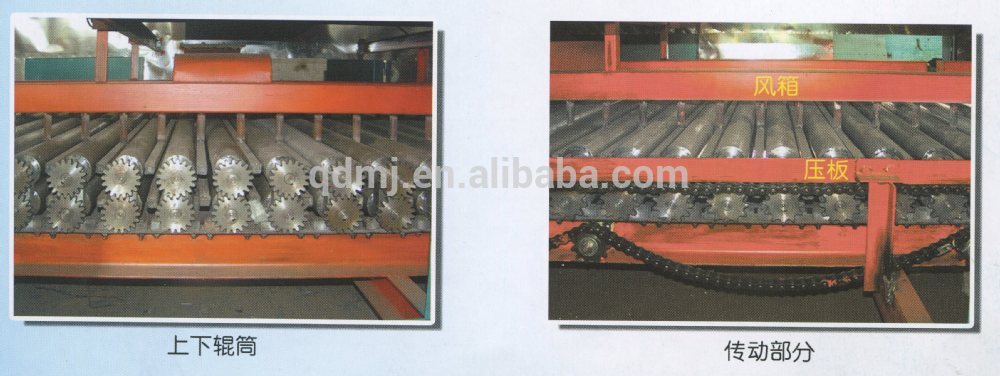

The equipment adopts advantages of all kinds of dryers. .Veneer is conveyed in the middle of two layers of steel rollers and flat after drying. The veneer is fed transversely or longitudinally. It is convenient for collection and store.
The machine consists of inlet, drying area, cooling area, outlet. Heating rooms can be added or lessen according to the production capacity, process and space, in order to improve productivity with lowest investment
