We supply high quality Single layers Veneer roller veneer dryer machine for wood BG1315
Model | BG1315 |
Width of feed inlet | 1500mm |
Thickness of panel/veneer | 0.4-3mm |
Working layers | 1 |
Power of heating motor | 5.5kwX6sets |
Power of cooling motor | 4kw |
Power of driving motor | 4kw |
Feeding speed | 0-12m/min |
Roller material | Chrome plated |
Daily out put | 8-12m3/24hours |
Heating medium | Thermal oil or Steam |
Drying temperature | 90 -130℃ |
Initial moisture | 50% |
Final moisture | 8% |
Size of body(LxWxH) | 20mX2.1mX1.8m (18m heat room,2m cooling room) |
Weight | 14T |
Voltage | 380V 50Hz |
Characteristic:

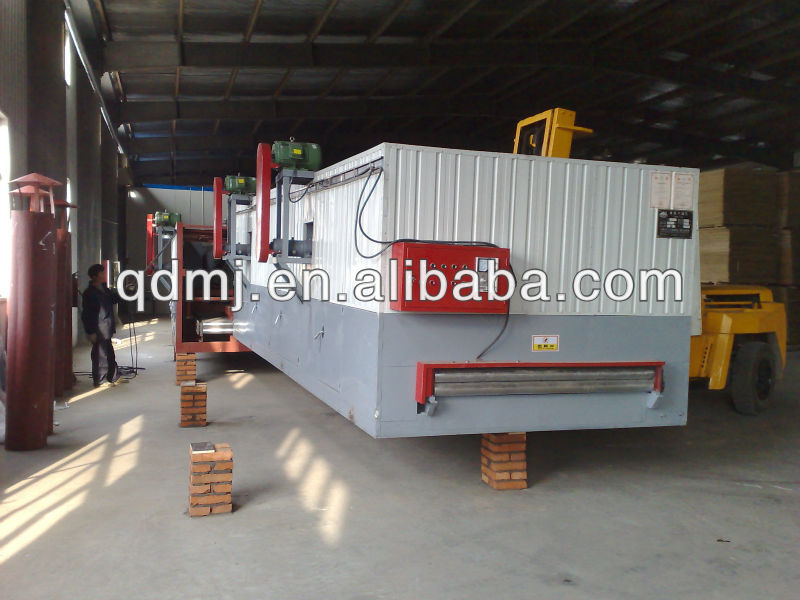

The machine is used for drying sliced or peeled veneer in the veneer production line with slicer or rotary peeler.

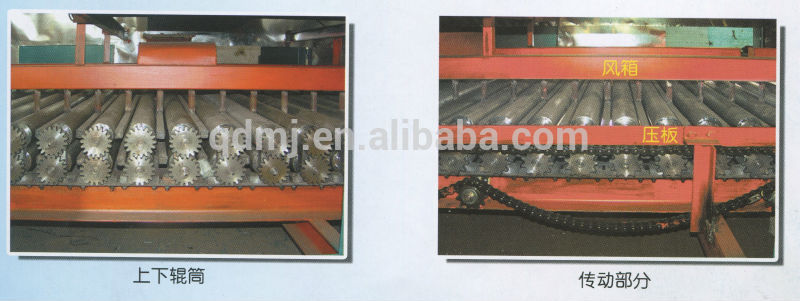

The equipment adopts advantages of all kinds of dryers. Veneer is conveyed in the middle of two layers of steel rollers and flat after drying. The veneer is fed transversely or longitudinally. It is convenient for collection and store.
The machine consists of inlet, drying area, cooling area, outlet. Heating rooms can be added or lessen according to the production capacity, process and space, in order to improve productivity with lowest investment
