Specifications
2 max veneer width: 1.5-2.9m
3 ISO9001

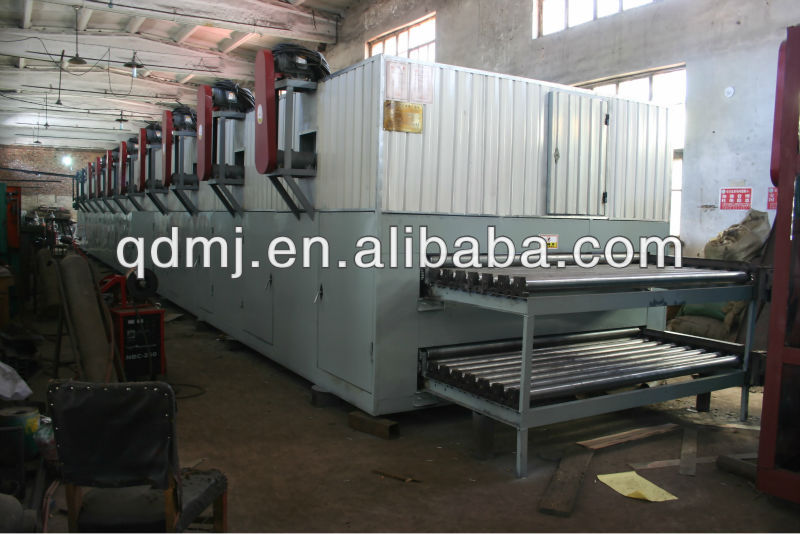

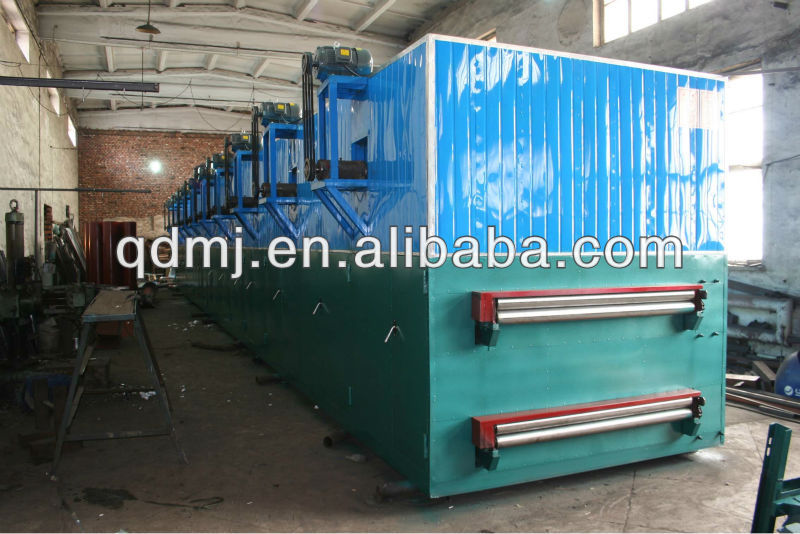

We supply high quality Double layers roller veneer dryer BBG1615/1620/1629
| Model | BBG1615-2 | BBG1620-2 | BBG1629-2 |
| Width of drum | 1.5m | 2.0m | 2.9m |
| Working layers | 2 | 2 | 2 |
| Hot-blast room | 10-28m | 10-28m | 10-28m |
| Cool-blast room | 2-4m | 2-4m | 2-4m |
| Power of heating motor | (5-14)X5.5kw | (4-10)X5.5kw | (5-14)X5.5kw |
| Power of cooling motor | 1*(2.2-5.5)kw | 1*(2.2-4.0)kw | 1*(3.0-5.5)kw |
| Power of driving motor | 2X(2.2-5.5)kw | 2X(3.0-5.5)kw | 2X(4.0-7.5)kw |
| Vapour consumption | 1000-2000kg/h | 1000-3000kg/h | 1500-4000kg/h |
| Daily out put | 9-28m3/24hours | 12-35m3/24hours | 20-50m3/24hours |
| Size of body(LxWxH) | 10-30X2.3X2.4m | 10-30X2.8X2.4m | 10-30X3.7X2.4m |
Drying system
Hot-air curtain style:

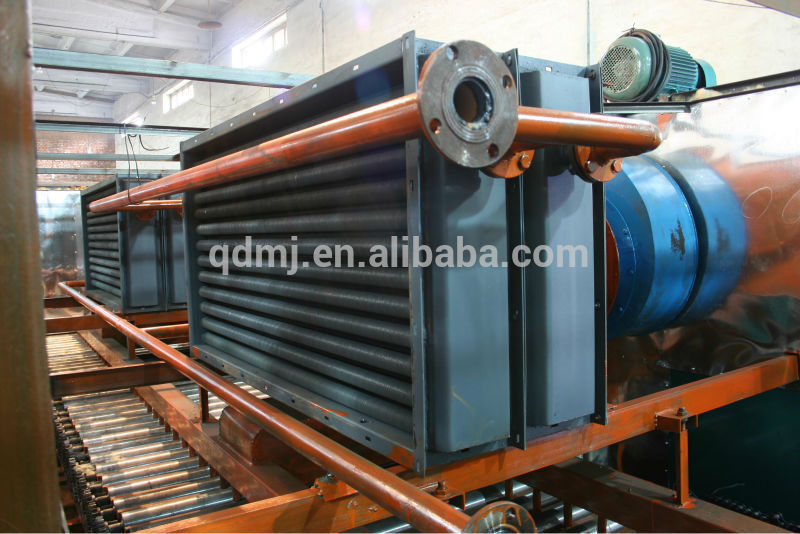

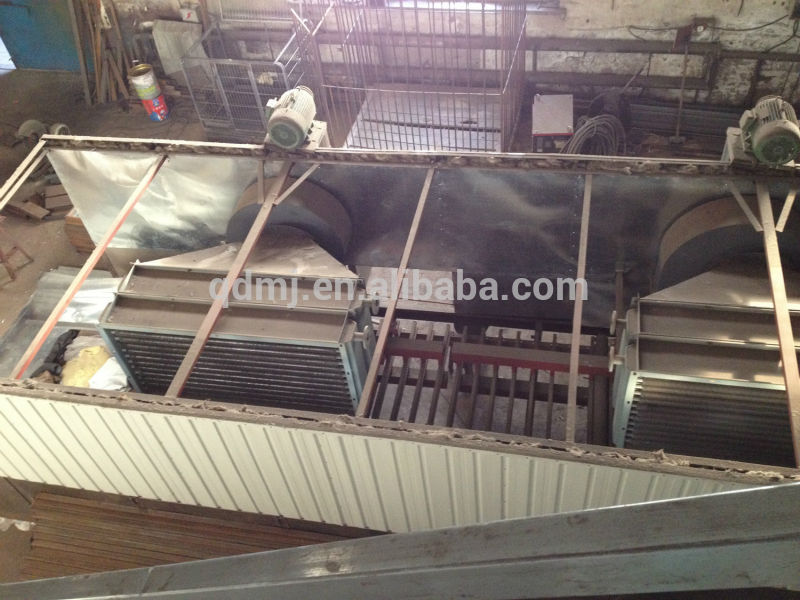

In this type, the air is circulated in (direct)direction, radiator adopt steel aluminum alloy sheets, is heated with steam and oil the hot-air immit into the top and bottom bellows by acentrical fan, and injected with high speed into both sides of the veneers. The veneers are dried uniformly.
Driving system:
The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, the veneer advance pressed by the top roller weight. The veneer is dried when come through the rollers and air nozzle with flat smooth surface.
Control system
According to the users’ requirement, we have manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thickness and different moisture of the veneer is dried.
Structure selection
The contour structure is metal material (iron plate, aluminum plate, stainless steel ect.) asbestos keep temperature with brick body, we can produce according to your requirement and also remake the old machines.
Heating source system:
You can choose the heating systems according to your conditions and environments such as hot air stove, steam stove, oil stove.
The inlet width can be customised from 1.35meter to 3meter
Veneer dried thickness is available in range 0.3mm-5.0mm.
Other hot products:

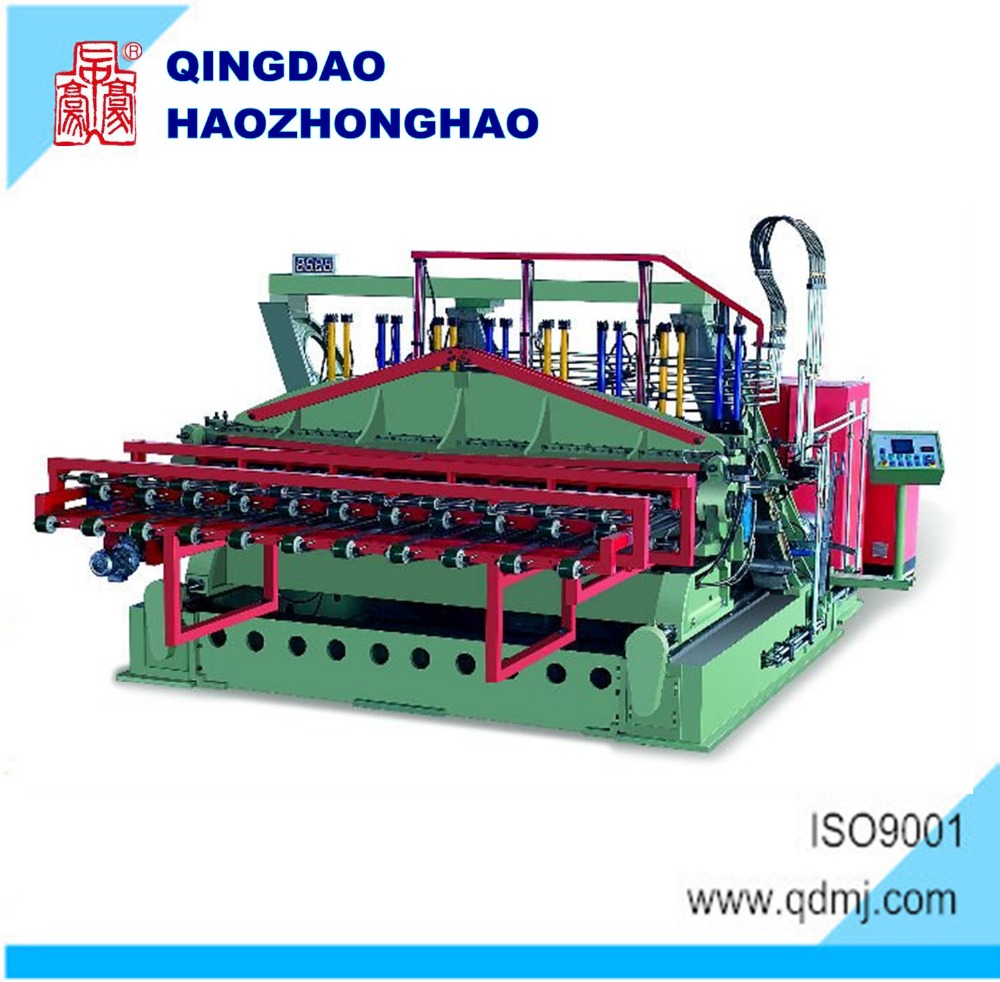

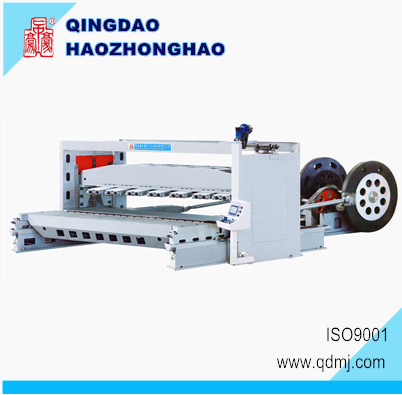

Horinzontal veneer slicer Vertical veneer slicer Veneer clipper
Company information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is www.qdmj.com; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max working width of Sanding machine?
Usually 600- 1300mm. Also It can produce as clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
