Product Description
Dryer machine, which is also known as rotary dryer, limestone dryer or cement rotating dryer,is the key equipment to dry different materials with humidity or granularity in various fields.According to its shape, it is also called drum dryer. China is one of the major countries tomanufacture such dryer machines, and therefore, China dryer is the best-selling product in the world.Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
Main Features
1. High mechanization, big capability and continuous operation
2. Excellent and simple structure, steady operating process under resistance of the drum, easy operation
3. Little malfunction, low maintenance cost and power consumption
4. Wide application range and good drying effect.Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
Working Principle

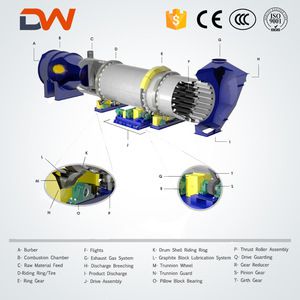

The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete
columns or steel beams. The dryer slopes slightly so that the discharge end is lower
than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by
a series of internal fins lining the inner wall of the dryer. When the material gets high
enough to roll back off the fins, it falls back down to the bottom of the dryer, passing
through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow).Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
Product Paraments
The orange part of the current product parameters, click on the parameters and view the product description

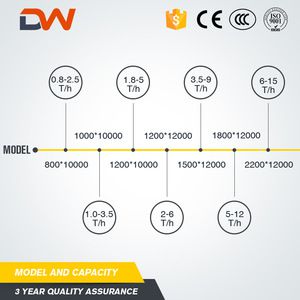

Model (mm) | Obliquity(%) | Revolution Speed (r/min) | Inlet Air Temperature (℃) | Power (kw) | Capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
For more information, please contact us

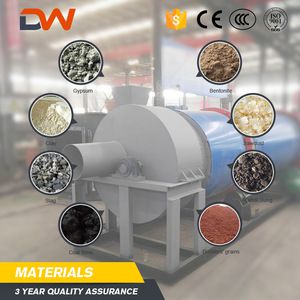

Contact Supplier Widely used in building materials, metallurgy, chemicals, industrial drying slag cement limestone, coal, slag, clay and other materials
For more information, please contact us
Contact Supplier
Henan Dewo Machinery Co., Ltd.
We are a comprehensive enterprise which integrates researching, manufacturing,market developing and service for mining crushing equipment.Dewo employees are
passionate spirit, we will provide first-class products to customers and strive for
best services. View details
Q: For providing you the suitable quotation we need to know the following information?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
Q: What about Warranty of the products?
A: Dewo Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will replace or repair the defective parts freely at our discretion.Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
Q: The reason you choose Dewo Machinery?
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
5.Contact us for more details about price, packing, shipping and discount.Uk Small Roller Coal Dung Animal Feed Biomass Alfalfa Sludge Wood Pellet Rotary Tube Drum Dryer Drying Kiln Machine For Sale
