Filter Cake Direct Heat Rotary Dryer Machine used in Copper, Iron, Zinc Mining Project

Filter Cake Direct Heat Rotary Dryer Machine used in Copper, Iron, Zinc Mining Project  has strong anti-overload capability, large quantity management, low fuel consumption and low drying costs.

Technical Feature

  • Henan, China (Mainland)
  • Dewo
  • 1500x12000
  • New
  • Engineers available to service machinery overseas
  • Filter Cake Rotary Dryer Machine used in Copper, Mining Project
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$22~30

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Dewo
Model Number
1500x12000
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Filter Cake Rotary Dryer Machine used in Copper, Mining Project
Usage
Fertilizers, Minerals Ores,Aggregates,Industrial Wastes and Sludge,
Drum Thickness
15mm Q235A
Lifter thickness
5mm Q235A
Motor power
15kw
Capacity per hour
3.5-9 depending on different material
Weight
17800kg
Certificate
ISO9001
Application
mining, ore beneficiation, construction materials chemical engineering
Warranty
12 Months

DETAIL DESCRIPTION

Product Description

Filter Cake Direct Heat Rotary Dryer Machine used in Copper, Iron, Zinc Mining Project  has strong anti-overload capability, large quantity management, low fuel consumption and low drying costs. Discharging devices can prevent phenomenon of clogging of the feed drum dryer, to reduce the load of the exhaust system.









Application

Coal slime dryer or sludge dryer has strong anti-overload capability, large quantity management, low fuel consumption and low drying costs. Discharging devices can prevent phenomenon of clogging of the feed drum dryer, to reduce the load of the exhaust system.

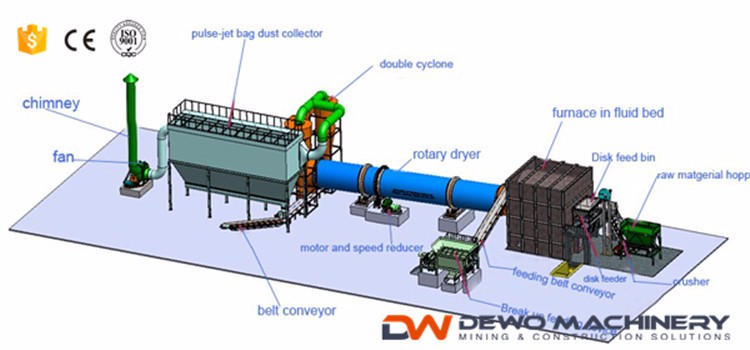

Working Principle

wet slime are sent into scattered equipment via ribbon conveyor, the massive coal slime after scattering are sent into drying chamber dryer of negative pressure, through feeding, cleaning, low temperature drying and discharging. The exhaust gas is drained after removing the dust, and the finished products are transported into warehouse.





Technical Parameter



Model(m)
(Diameter×Length)
Cylinder volume
(m³)
Production capacity
(t/h)
Installation inclination
(%)
Highest intake air temperature
(℃)
Main motor
(kw)
Total weight
(t)
Φ1.2×8.09.01.9~2.43~5700~8007.59
Φ1.2×1011.32.4~3.03~5700~8007.511
Φ1.5×1221.24.5~5.73~5700~8001518.5
Φ1.5×1424.75.3~6.63~5700~8001519.7
Φ1.5×1526.55.7~7.13~5700~8001520.5
Φ1.8×1230.56.5~8.13~5700~80018.521.5
Φ1.8×1435.67.6~9.53~5700~80018.523
Φ2.2×1245.69.7~12.23~5700~8002233.5
Φ2.2×1453.211.4~14.23~5700~8002236
Φ2.2×1660.813.0~16.23~5700~8002238
Φ2.4×1463.313.5~16.93~5700~8003745
Φ2.4×1881.417.4~21.73~5700~8003749
Φ2.4×2090.419.3~24.13~5700~8004554
Φ2.4×2299.521.2~26.53~5700~8004558
Φ2.6×24127.427.4~34.03~5700~8005573
Φ3.0×20141.330.1~37.73~5700~8007585
Φ3.0×25176.637.7~47.13~5700~8007595
Φ3.2×2520142.9~53.63~5700~80090110
Φ3.6×2828560.8~76.03~5700~800160135

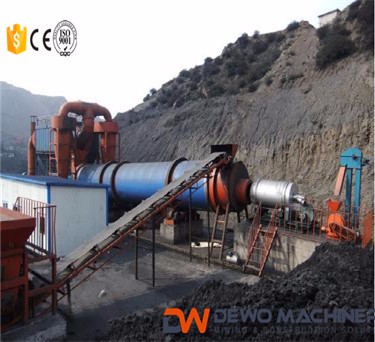

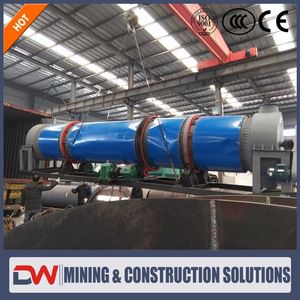

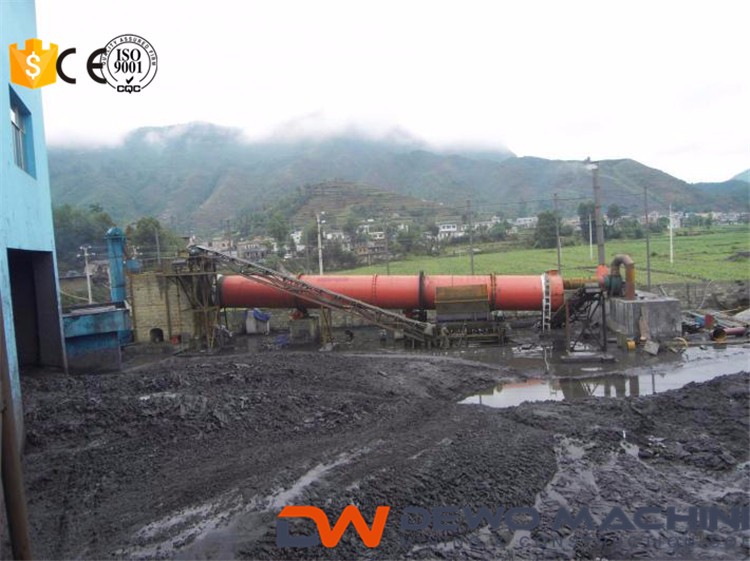

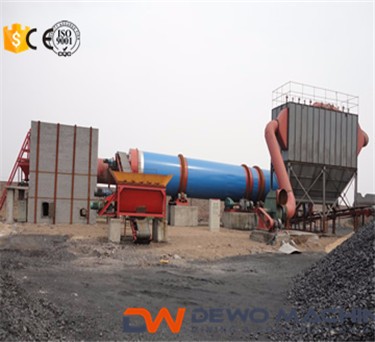

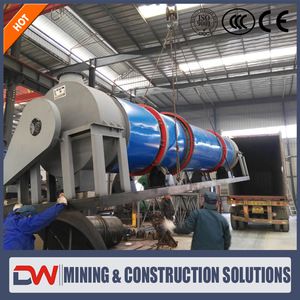

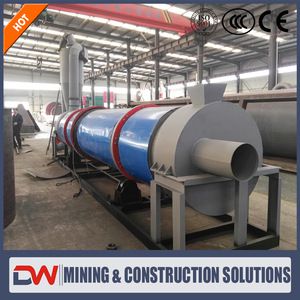

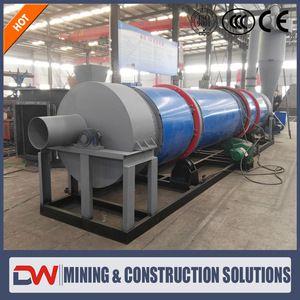

Detailed Images













About Us

Approved by the National Commerce Ministry, established in 2006, located in Zhengzhou city, Henan province, covering area about 300,000 square meters, with more than 260 employees which including R&D staffs more than 50 people, Henan Dewo is a comprehensive enterprise which integrates researching, manufacturing, market developing and service for mining crushing equipment, infrastructure equipment, ore beneficiation equipment and mining drying equipment.

Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Q: What about Warranty of the products?
A: Dewo Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose Dewo Machinery:
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
