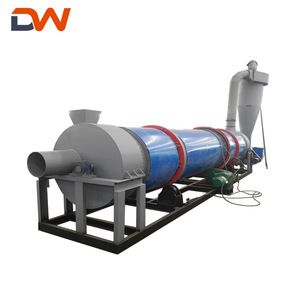

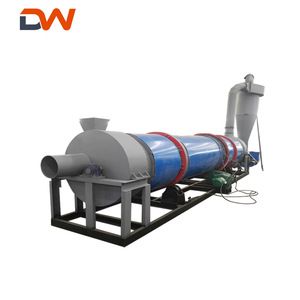

Product Description
Rotary dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also can be indicated by the thermometer, which is convenient for temperature control inside the dryer ( it’s usually 250-350℃).Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
Contact Supplier
Main Features
1. High mechanization, big capability and continuous operation
2. Excellent and simple structure, steady operating process under resistance of the drum, easy operation
3. Little malfunction, low maintenance cost and power consumption
4. Wide application range and good drying effect.Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
Working Principle

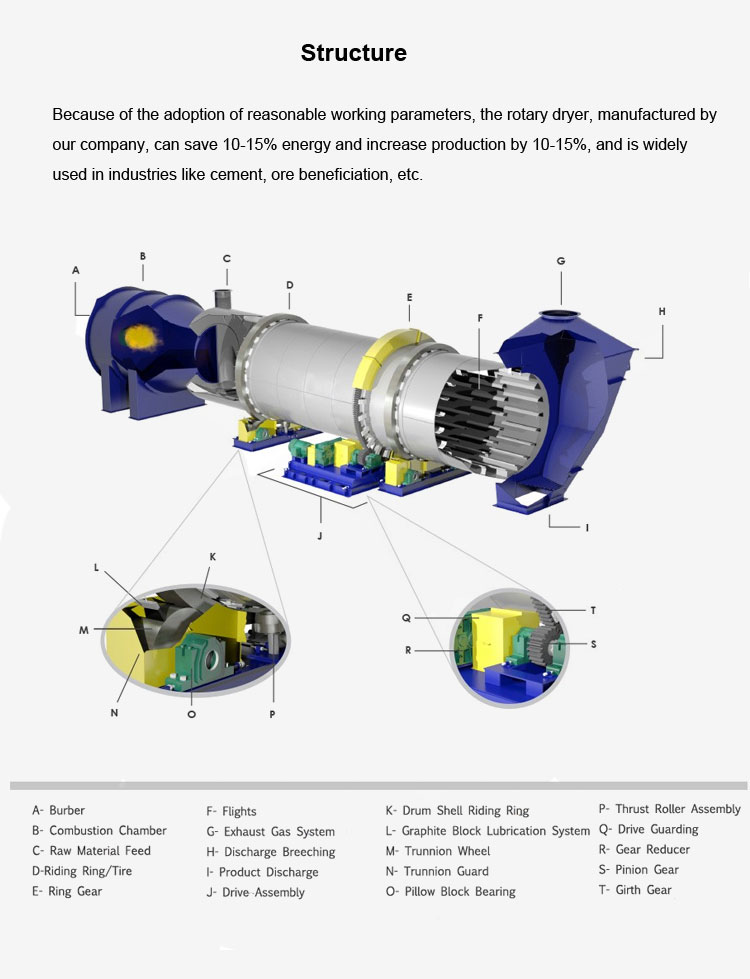

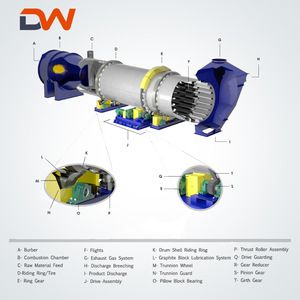

Rotary dryer’s heat source is a combustion apparatus. It adopts direct flow heating with heat source from firing unit. The material to be dried is pushed back immediately by spiral board after going in the shell from feeding tank or feeding chute. Because the drier is installed in an inclined position, material flows to the back end under gravity and rotation force. At the same time, it is lifted by board repeatedly and thrown down accordingly, which makes the material form an even curtain, so that it can exchange heat sufficiently with the heat flow. At last, water in the material is dried by repeatedly scattering.Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
Product Paraments
The orange part of the current product parameters, click on the parameters and view the product description

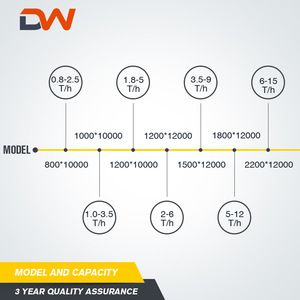

Model (mm) | Obliquity(%) | Revolution Speed (r/min) | Inlet Air Temperature (℃) | Power (kw) | Capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
For more information, please contact us
Contact SupplierPowder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate,
filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, Bentonite, Kaolin etc.
Corrosive material: Distillers' grains, Fertilizer, Animal Dung, slag etc.
Biomass material: Sawdust, wood chips etc.
For more information, please contact us
Contact Supplier
Henan Dewo Machinery Co., Ltd.
We are a comprehensive enterprise which integrates researching, manufacturing,market developing and service for mining crushing equipment.Dewo employees are
passionate spirit, we will provide first-class products to customers and strive for
best services. View details
Q: For providing you the suitable quotation we need to know the following information?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
Q: What about Warranty of the products?
A: Dewo Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will replace or repair the defective parts freely at our discretion. Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
Q: The reason you choose Dewo Machinery?
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
5.Contact us for more details about price, packing, shipping and discount.Industrial Dates Animal Feed Sludge Chicken Manure Sawdust Roller Kiln Rotary Drum Dryer Drying Machine Equipment Price For Sale
China
