Electric drive plastic fruit/vegetables basket washing machine
Introduction of Electric drive plastic fruit/vegetables basket washing machine
1: The equipment consists of the company combined with Japan's clean technology andependently developed and manufactured new washing machine, product performance and greater efficiency good praise new and old customers at home and abroad. Products greatly improve the work efficiency, reduce labor and labor intensity.
2:How it works: After the unit is turned on, feeding by hand fed to spray cleaning machine chain track, the first hot lye shower and hot water spray, then spray water cycle, each group has a separate circulating water tank, filters using intensive memory material can be easily extracted drained, and easy to store a large number of the filtrate.
This section is divided into two-stage cleaning equipment cleaning:
(1) hot alkali dip - diluted oil.
(2) hot water - wash off oil and diluted washing solution.
(3) to the basket with a disinfectant cleaning disinfection.
Feature of Electric drive plastic fruit/vegetables basket washing machine
1: All stainless steel, to meet state regulations for food hygiene.
2: Electric watertight, avoid the humid environment caused by electrical burn.
3: Consumer Electronics with overload protection, leakage protection, ensure the safety of operating personnel.
4: Frequency control drive, high accuracy.
5: the whole interior of the spray design, even the cleaning process, production rate.
6: with automatic access function, automatic overflow device.
7: the upper basket washing machine basket with compression device, equipped withclip on both sides of the basket device to prevent lighter water pressure Ambassador basket because the basket out of the normal orbit.
8: Interior equipment adjustment lever, washable similar specifications turnover baskets.
Main Technical Parameter of Electric drive plastic fruit/vegetables basket washing machine
Number | Name | Material or brand | Specification model | Note |
1 | Equipment size | 2000*1730*1400mm |
| 150-200/ hour |
2 | Frame body | 304 Stainless steel |
| δ=2.0 |
3 | Cover body, water board tank | 304 Stainless steel |
| δ=1.5 |
4 | Frame | 304 Stainless steel Square tube | 50*50*1.5 |
|
5 | Stainless steel pump | "Guangdong yuehua" | Pump pressure 0.2-0.55Mpa | One set (3kw 5.5kw 0.75kw Disinfection Pump) |
6 | Transfer motor | Turbine worm reducer | 0.75kw | 1Set |
7 | Transmission chain | 304 Stainless steel |
|
|
8 | Converter | "Shenzhen YiNeng " | JX-300 | 1Set |
9 | Electrical components | Delixi brand |
|
|
10 | Dehydration fan | Made in China |
| 3 Sets 3KW*2 |
11 | Heating mode | Steam heating | Heating pipe cleaning section: 9Kw | |
12 | Total power | 24Kw (Electric heating power 9Kw) |
Drawings of Electric drive plastic fruit/vegetables basket washing machine

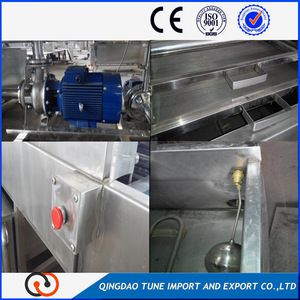

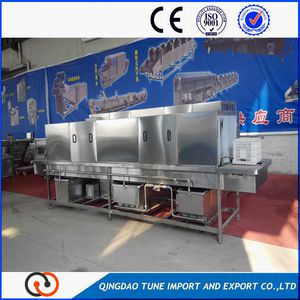

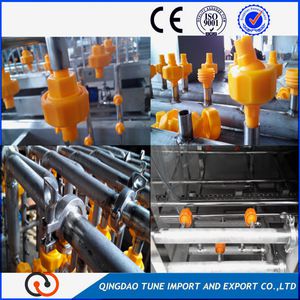

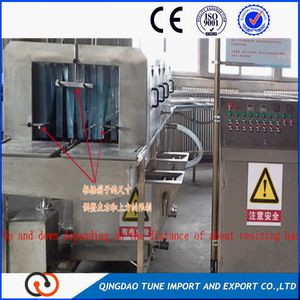

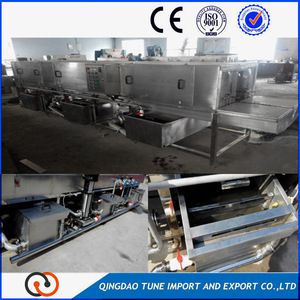

Photos of Electric drive plastic fruit/vegetables basket washing machine
