China commercial plastic turnover basket/box/cage/tray/pallet washing machine
Introduction of China commercial plastic turnover basket/box/cage/tray/pallet washing machine
1: The equipment consists of the company combined with Japan's clean technology andependently developed and manufactured new washing machine, product performance and greater efficiency good praise new and old customers at home and abroad. Products greatly improve the work efficiency, reduce labor and labor intensity.
2:How it works: After the unit is turned on, feeding by hand fed to spray cleaning machine chain track, the first hot lye shower and hot water spray, then spray water cycle, each group has a separate circulating water tank, filters using intensive memory material can be easily extracted drained, and easy to store a large number of the filtrate.
This section is divided into two-stage cleaning equipment cleaning:
(1) hot alkali dip - diluted oil.
(2) hot water - wash off oil and diluted washing solution.
(3) to the basket with a disinfectant cleaning disinfection.
Feature of China commercial plastic turnover basket/box/cage/tray/pallet washing machine
1: All stainless steel, to meet state regulations for food hygiene.
2: Electric watertight, avoid the humid environment caused by electrical burn.
3: Consumer Electronics with overload protection, leakage protection, ensure the safety of operating personnel.
4: Frequency control drive, high accuracy.
5: the whole interior of the spray design, even the cleaning process, production rate.
6: with automatic access function, automatic overflow device.
7: the upper basket washing machine basket with compression device, equipped withclip on both sides of the basket device to prevent lighter water pressure Ambassador basket because the basket out of the normal orbit.
8: Interior equipment adjustment lever, washable similar specifications turnover baskets.
Main Technical Parameter of China commercial plastic turnover basket/box/cage/tray/pallet washing machine
Number | Name | Material or brand | Specification model | Note |
1 | Equipment size | 2000*1730*1400mm |
| 150-200/ hour |
2 | Frame body | 304 Stainless steel |
| δ=2.0 |
3 | Cover body, water board tank | 304 Stainless steel |
| δ=1.5 |
4 | Frame | 304 Stainless steel Square tube | 50*50*1.5 |
|
5 | Stainless steel pump | "Guangdong yuehua" | Pump pressure 0.2-0.55Mpa | One set (3kw 5.5kw 0.75kw Disinfection Pump) |
6 | Transfer motor | Turbine worm reducer | 0.75kw | 1Set |
7 | Transmission chain | 304 Stainless steel |
|
|
8 | Converter | "Shenzhen YiNeng " | JX-300 | 1Set |
9 | Electrical components | Delixi brand |
|
|
10 | Dehydration fan | Made in China |
| 3 Sets 3KW*2 |
11 | Heating mode | Steam heating | Heating pipe cleaning section: 9Kw | |
12 | Total power | 24Kw (Electric heating power 9Kw) |

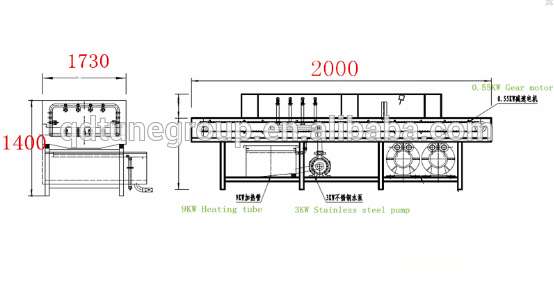

Drawings of China commercial plastic turnover basket/box/cage/tray/pallet washing machine

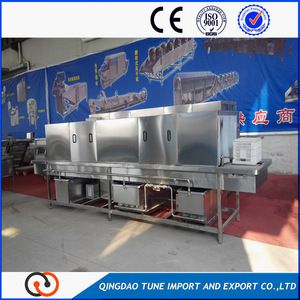

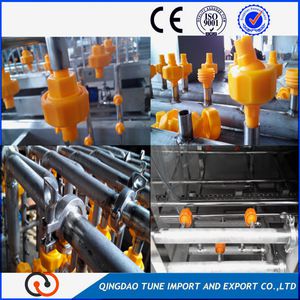

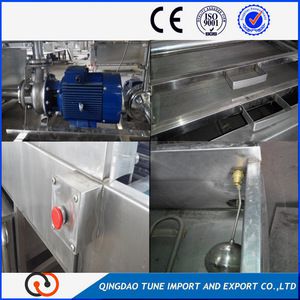

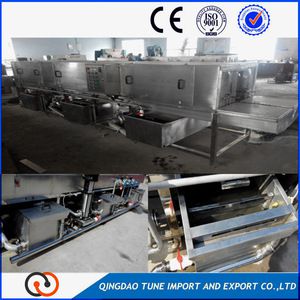

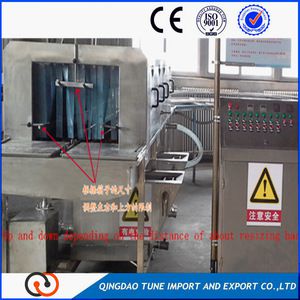

Photos of China commercial plastic turnover basket/box/cage/tray/pallet washing machine
Every clients care about the after-sell service, so we are:
1/ The Machine gets one year warranty period.
2/ During the time ,if the machine get in trouble we will guide you to deal with the problem .if it still don't work we will send our engineer to serve you until the problem be done. And we will pay the fly ticket .Notice that if you just need the spare part to instead the broken one after we found the cause , we will send you that free.
That is our words .
And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.
Wholesaler & Distributor
If you are dealing on washing machine business and have interesting on us.
if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you.
You will get
1/ VIP W/D price available
2/ New products update at first time
3/ 2 years free spare parts available
4/ quickly delivery
5/ free technical engineer door to door service
1. Are you the manufacture factory or trading company?
We are the manufacturer with professional produce experience on washing machines more than 8 years. We own both of Domestic and international sales department.
2. Where is your factory located? How can I visit there?
Our factory is located in Qingdao City, Shandong Province, China,
You can take a plane to Qingdao Liuting International Airport. We will pick you up to airport!
3. What’s your lead time, how to shipment?
Normally we will keep stock on washing machine.(15-20workdays)
4. How does your factory do regarding quality control?
We have professional designer team, modern military industrial production base.
We employmented engineers and designers from shandong aircraft industry group and Henan Industrial Universty of Food machinery research institute, to make sure produced out good quality machinery. My factory owned ISO9001 and products approved CE certification.
5. How to agent yours products?
If you are dealing on washing machine business and have interesting on us.
if you want became ours wholesaler or distributor in your place ,we are very willing to share profits together with you and we promise here will get
1/ VIP W/D price available
2/ New products update at first time
3/ 2 years free spare parts available
4/ quickly delivery and certification by require.
5/ free technical engineer door to door service
