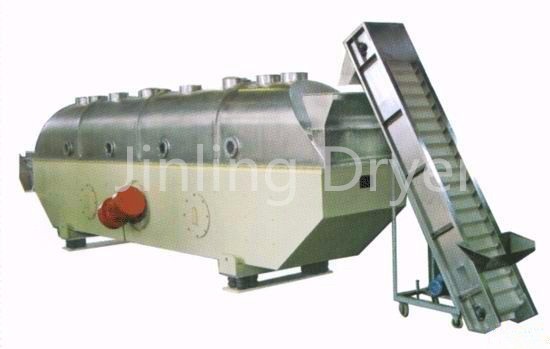

Principle of ZLG,SLG vibrating fluidized bed dryer

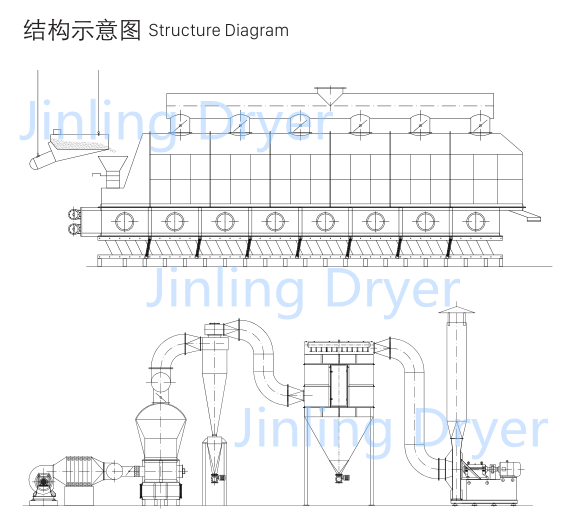

◆ _ SLG is the modified dryer based on ZLG, it is consisted of top chamber, intermediate chamber, bottom chamber, vibration plate, vibration motor, production collection system, ventilation system etc. Vibration motor generate the force in two direction, vertical force vibrate the raw material up, cooperate with hot air, raw material is fluidized and dried inside of dryer, horizontal force transfer the product moving forward.
Features of ZLG,SLG vibrating fluidized bed dryer
◆ _Thickness of raw material distribution is adjustable, usually it is less than 300mm.
◆ _Thickness of vibration plate will be designed according to the size of dryer
◆ _Different vibration plate open hole style available for choice
◆ _Elastic support structure is available for choice
APPlications of ZLG,SLG Vibrating fluidized bed dryer
◆ _It is suitable for large scale, continuous production, it is suitable for high viscosity raw material which needs a long drying retention time.
◆ _Drying and cooling of citric acid, sodium sulfate, polyacrylamide
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
We need to know the follow information,so that we can help you better.
1.What is your drying material?
2.What is your production? (batch production or continuous production)
3.what is your heating medium?
