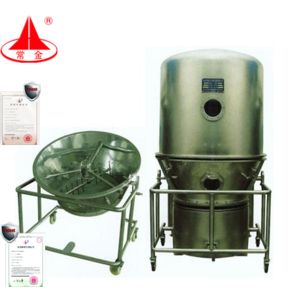

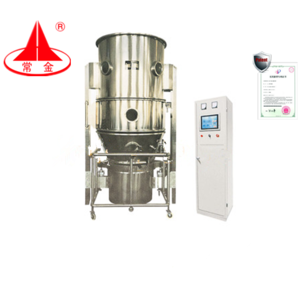

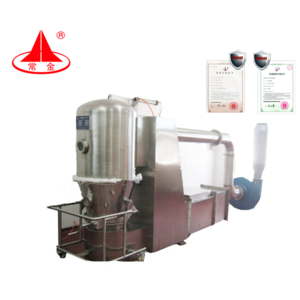

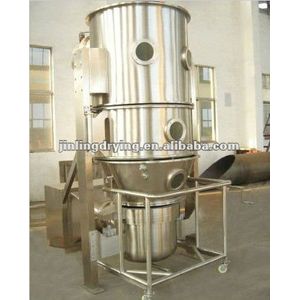

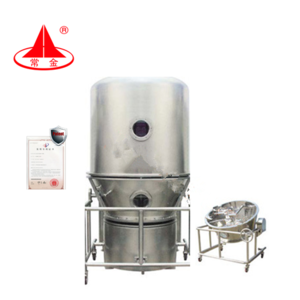

Fluid bed infusion granulator
Principle
The powder material is in a boiling state in fluid bed, heated and mixed by filtered hot air. Then spray binder into fluid bed, make the dry powder material agglomerate and become granules. The moisture in granule is evaporated by hot air and binder is solidified. Finally, the ideal, uniform and porous finished granule will be got.
Applications
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine
Food stuff: cocoa, coffee, milk powder, granule of juice, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Features
Because of powder granulating, the flow property is improved and the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security when explosion.
FL fluid bed tea infusion granulator has no dead corner, easy for feeding, discharging and clean. It could meet the requirement of GMP.

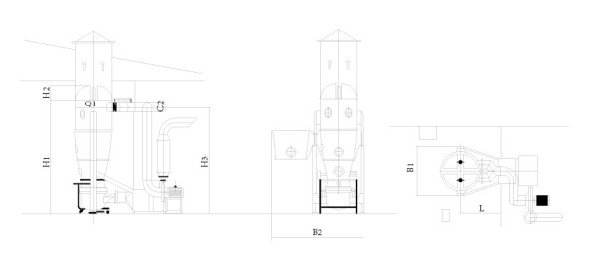

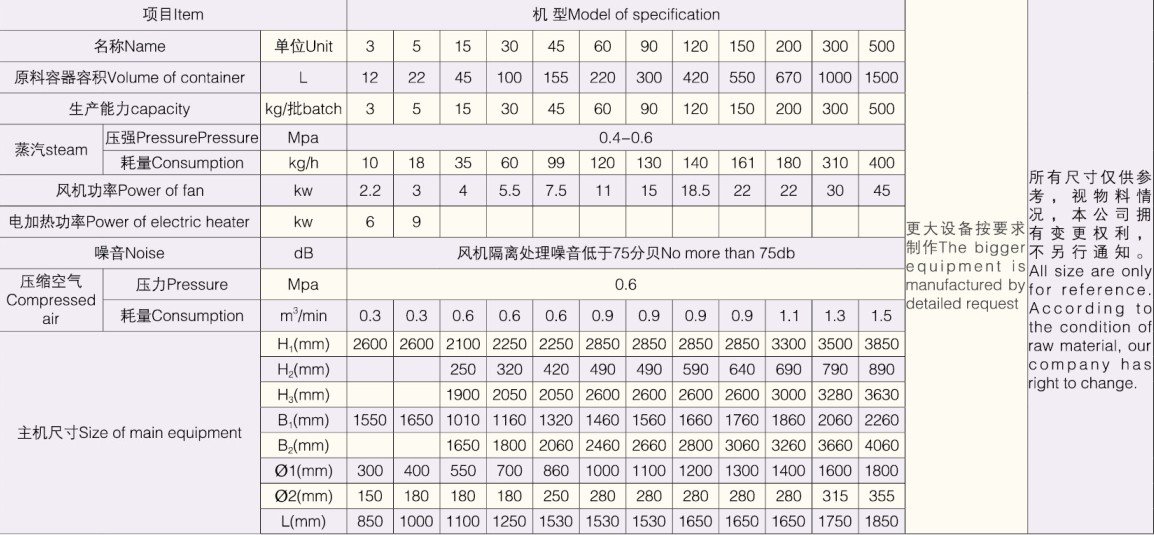

Technical Parameter
