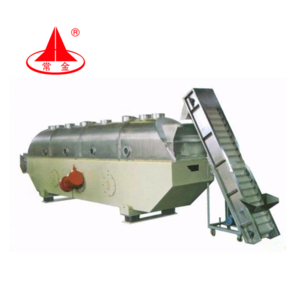

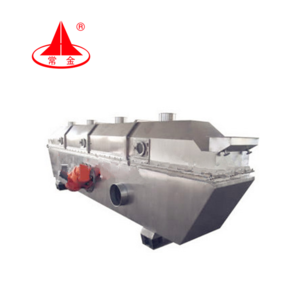

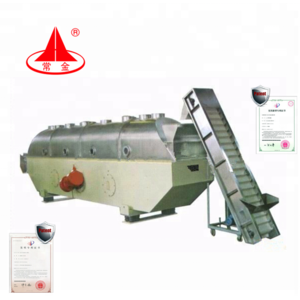

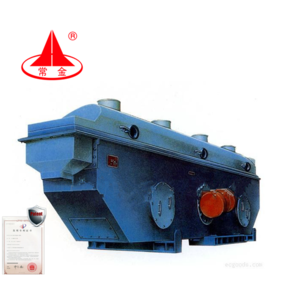

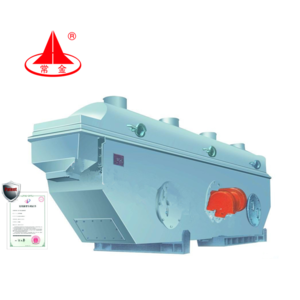

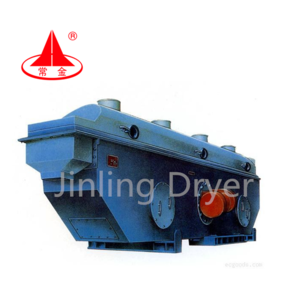

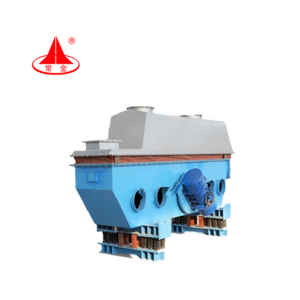

Horizontal Vibrating Fluid Bed Dryer for Sugar and Salt
Detailed Product Description
Operation environment of ZLG Vibrating Fluid Bed Drying Processor is clean and it could produce continuously.
Description
The drier is suitable for chemical industry, light industry, pharmaceutical, food, plastic, oil, slag, salt, sugar and so on, for drying, cooling and wetting.
Principle

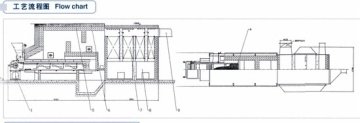

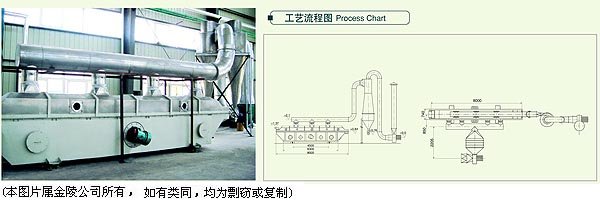

Raw material is fed into the ZLG Vibrating Fluid Bed Drying Processor from the inlet and moves forward continuously along with the level of fluid bed under the action of vibration. The hot air passes through fluid bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and dry raw material is discharged through discharge outlet..
Features
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
High efficiency, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted.
It makes minimum damage to the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have irregular shape.
Technical Parameters
model | area of fluidized-bed(m2) | temperature of air in() | temperature of air out() | capacity to vappor moisture(kg/h) | vibration motor | |
model | power | |||||
ZLG0.30×3 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS10-6 | 0.75×2 |
ZLG0.30×4.5 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS10-6 | 0.75×2 |
ZLG0.45×4.5 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS10-6 | 1.1×2 |
2ZLG0.60×4.5 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS10-6 | 1.1×2 |
ZLG0.45×6 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS10-6 | 1.1×2 |
ZLG0.6.×6 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS25-6 | 1.5×2 |
ZLG0.75×6 | 4.5 | 70-140 | 40-70 | 120-170 | ZDS25-6 | 1.5×2 |
ZLG0.9×6 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS30-6 | 2.2×2 |
ZLG0.6×7.5 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS30-6 | 2.2×2 |
ZLG0.75×7.5 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS40-6 | 3.0×2 |
ZLG0.9×7.5 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS40-6 | 3.0×2 |
ZLG1.2×7.5 | 9 | 70-140 | 40-70 | 180-270 | ZDS50-6 | 3.7×2 |
ZLG1.5×7.5 | 11.25 | 70-140 | 40-70 | 200-350 | ZDS50-6 | 3.7×2 |
