High quality pressure nozzle spray dryer active gluten dryer

Drying speed is fast and it is suitable for drying heat sensitivity material.

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • JINLING
  • XF
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~150

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
JINLING
Model Number
XF
Voltage
220v/380v
Power(W)
3-75kw
Dimension(L*W*H)
Varied
Weight
Varied
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available
Application
Chemical Industry
Name
pressure nozzle spray dryer
Product name
pressure nozzle spray dryer
Heating source
Hot air
Material
Stainless Steel
Capacity
Hour
Usage
Reduce Material's Moisture
Color
Color
Raw material
Multiple Material
Installation
Engineer Guide

DETAIL DESCRIPTION

Product Description

First . Feature of Pressure Nozzle Spray Dryer

1. Drying speed is fast and it is suitable for drying heat sensitivity material.
2. Products from spray dryer are ball shape granules with good uniformity, solubility, fluidity and purity.
3. The dryer is available for liquid drying or melted solid cooling.
4. Product size, solubility, bulk density and color is adjustable in certain ranges.

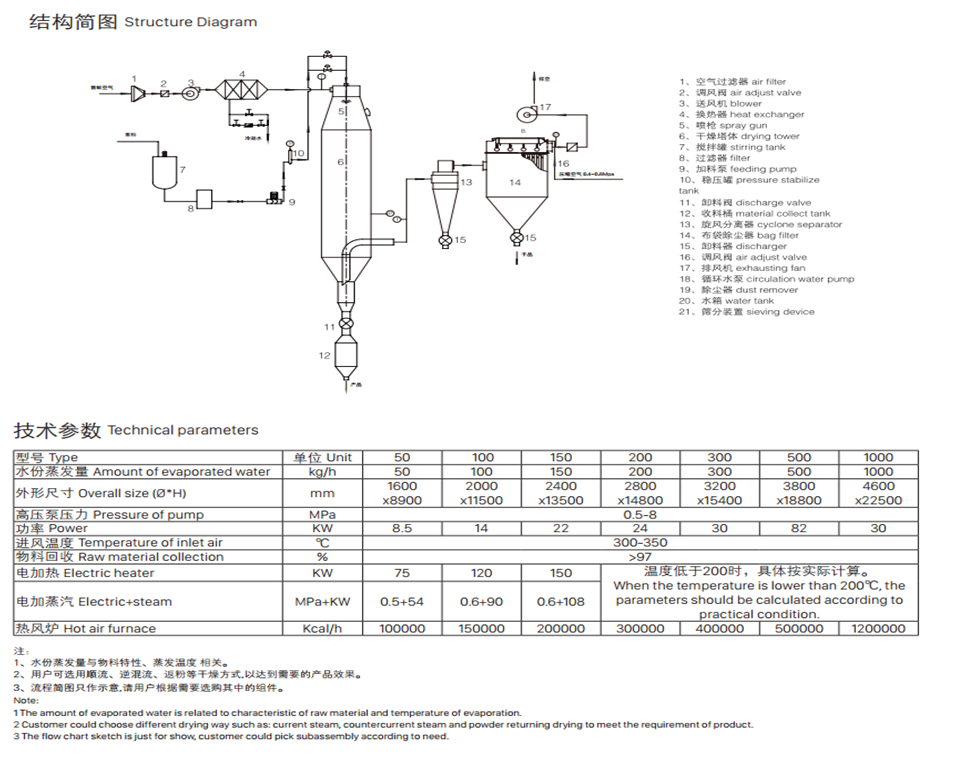

Second . Description of Pressure Nozzle Spray Dryer

The liquid or paste form raw material is sprayed into fine mist under the function of high pressure pump. Mist form material then contact with hot air to become small granules. Final product is collected from the bottom of tower and cyclone separator.

Third . Application of Pressure Nozzle Spray Dryer

It is applicable in foodstuff, pharmaceutical, chemical industries, dyestuff, ceramics, biochemical, plastic industries and so on.
