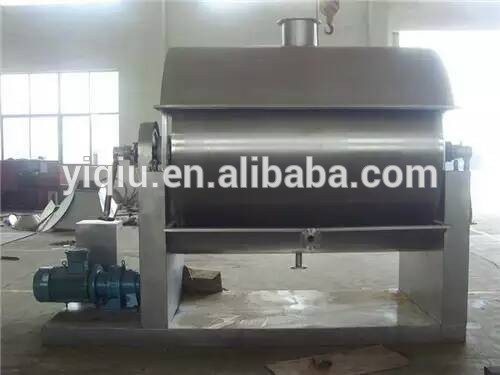

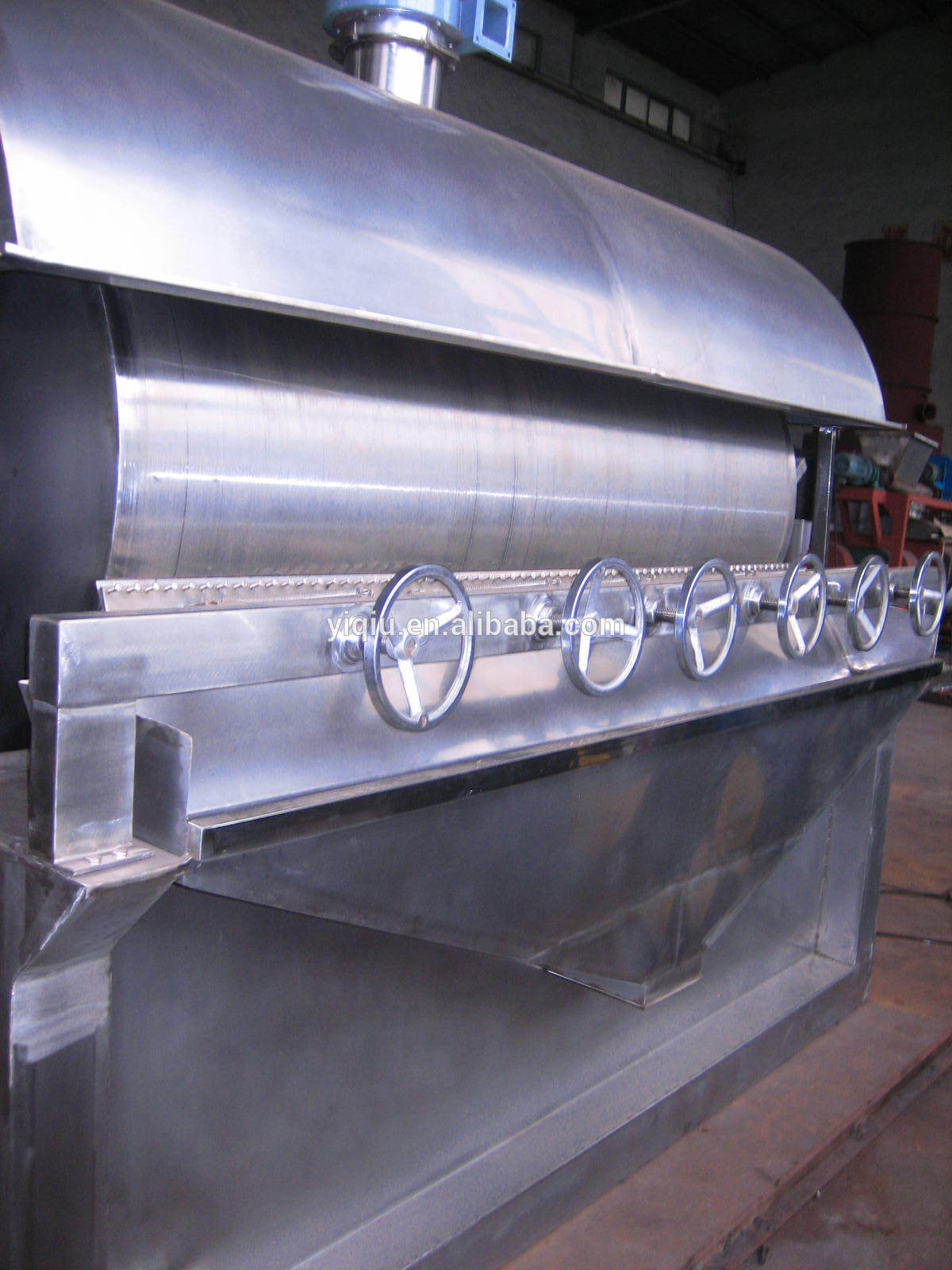

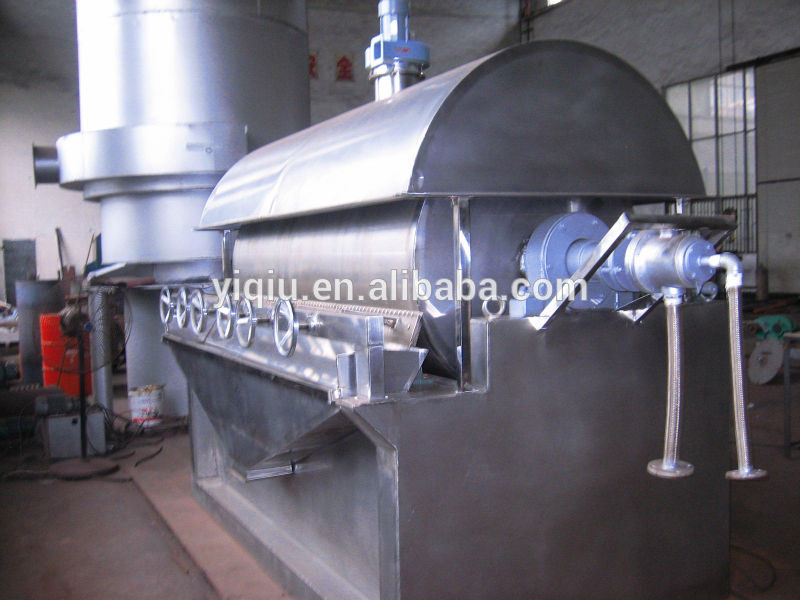

HG Series scraper drum dryer
Description

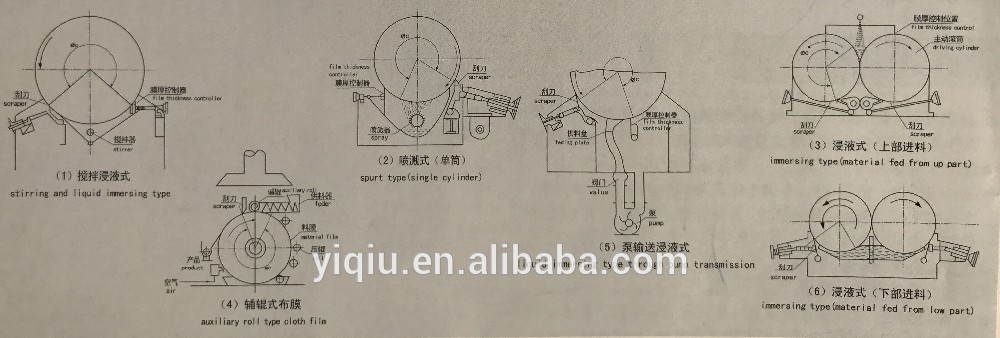

HG Drum Pharmaceutical Conductive style drying machine (Drum dryer) (drum drying Equipment) is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.
Features
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material. It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.
Applications
It is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry and so on.
Technical parameters

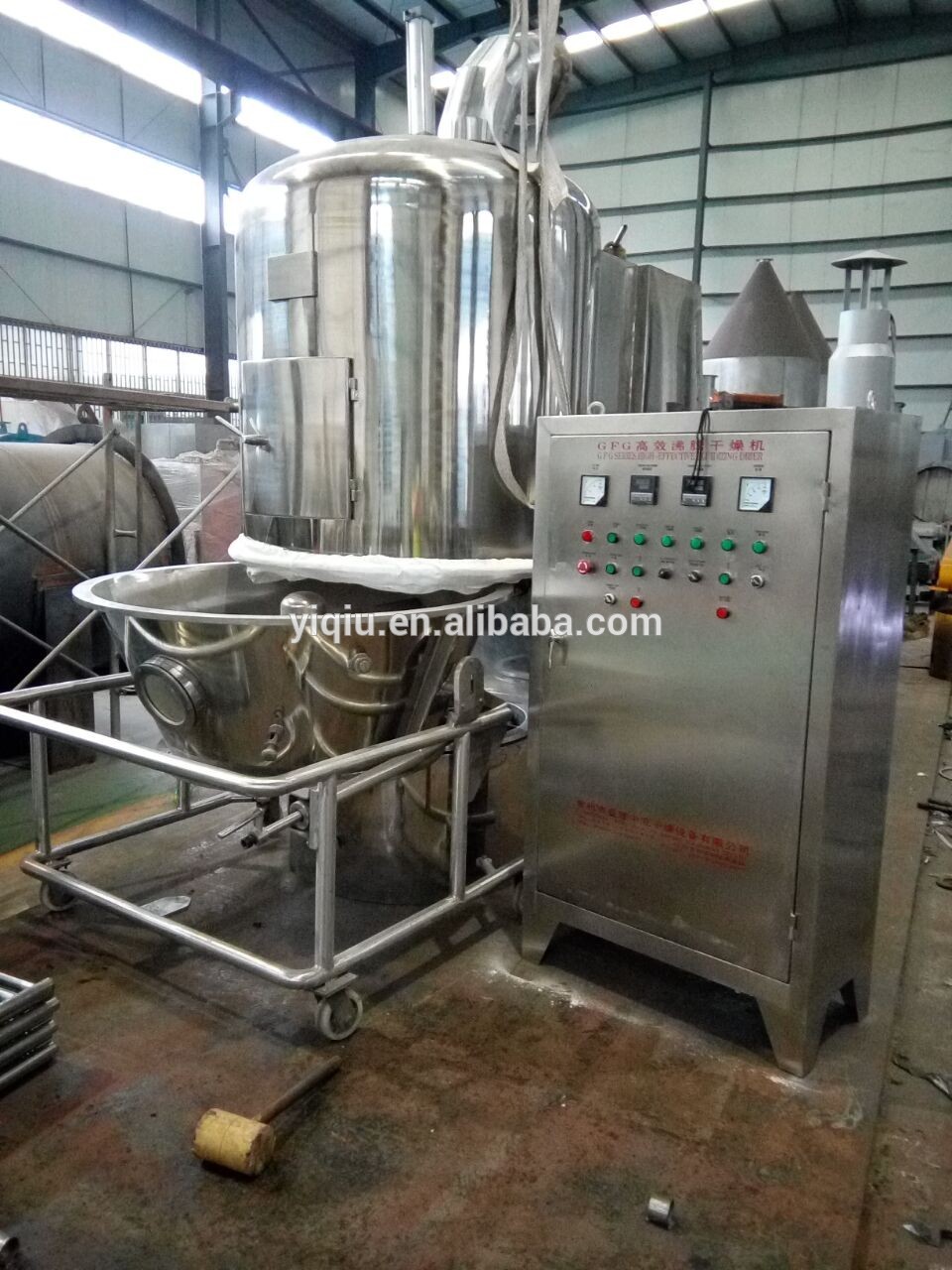

GFG Series High Efficient Boiling Dryer

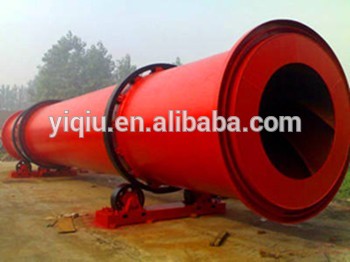

HZG Series rotary drum dryer
