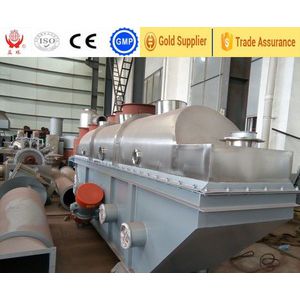

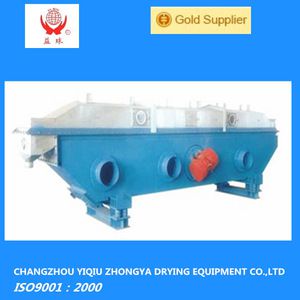

glass fibre Vibra continuous fluid bed dryer

The drier is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.

Technical Feature

  • New
  • Fluid Bed Drying Equipment
  • Jiangsu, China (Mainland)
  • YIQIU
  • ZLG
  • 220-440v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~50

PRIMARY PARAMETERS

Condition
New
Type
Fluid Bed Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
YIQIU
Model Number
ZLG
Voltage
220-440v
Power(W)
1-11kw
Dimension(L*W*H)
based on actual design
Weight
1240-8600kg
Certification
ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Material
SUS304/316/Carbon steel
Control system
Touch screen
Heating source
Hot air furnace or steam

DETAIL DESCRIPTION

glass fibre  Vibra continuous fluid bed dryer



Product Description

     The drier is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.



Advantages

 The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
1.High effection,raw material is heates evenly and heated evenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2.It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
3. It is small for danaging the are surface of raw material. Theequipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
4. A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
5. You can string multi-srt to raseed capacity of raw materials, such as polyacrylamide.



Technical parameters
ModelFluidized bed area m2Temperature of air in °CTemperature of air out °CCapacity of vaporize moisture Kg/hVibration motor
ModelPower(Kw)
ZLG3×0.300.970~14040~7020~35YZS8-60.75×2
ZLG4.5×0.301.3535~50YZS10-60.75×2
ZLG4.5×0.452.02550~70YZS15-61.1×2
ZLG4.5×0.602.770~90YZS15-61.1×2
ZLG6×0.452.780~100YZS15-61.1×2
ZLG6×0.603.6100~130YZS20-61.5×2
ZLG6×0.754.5120~170YZS20-62.5×2
ZLG6×0.95.4140~170YZS30-62.2×2
ZLG7.5×6.04.5130~150YZS30-62.2×2
ZLG7.5×0.755.625150~180YZS40-63.0×2
ZLG7.5×0.96.75160~210YZS40-63.0×2
ZLG7.5×1.29200~280YZS50-63.7×2
ZLG7.5×1.511.25230~330YZS50-63.7×2
ZLG8×1.814.4290~420YZS75-65.5×2

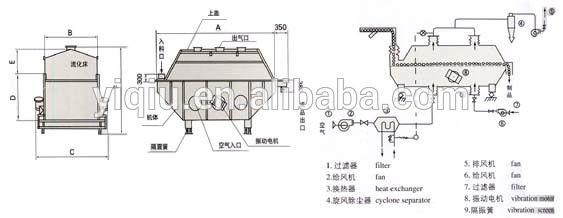

Skech of oven

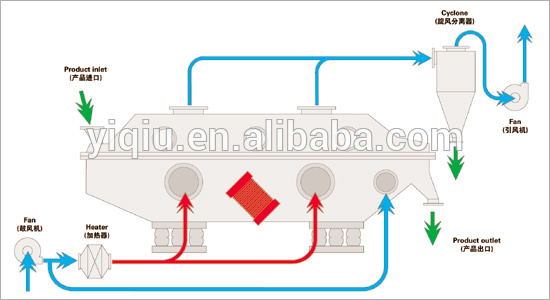

Operation principle

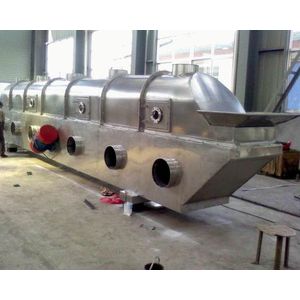

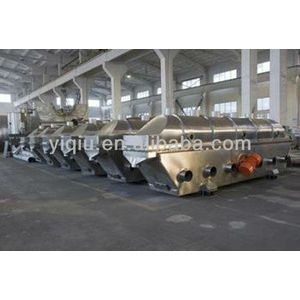

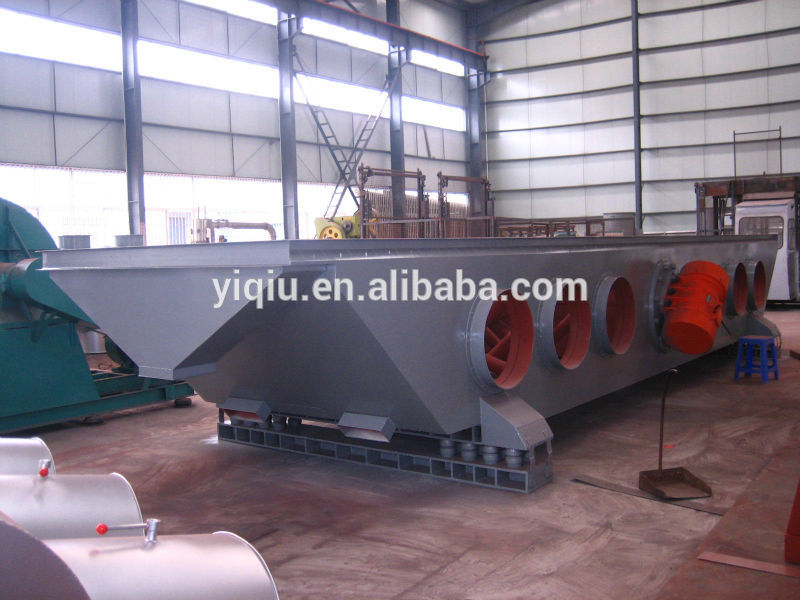

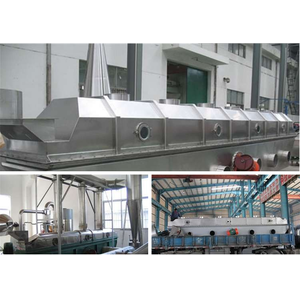

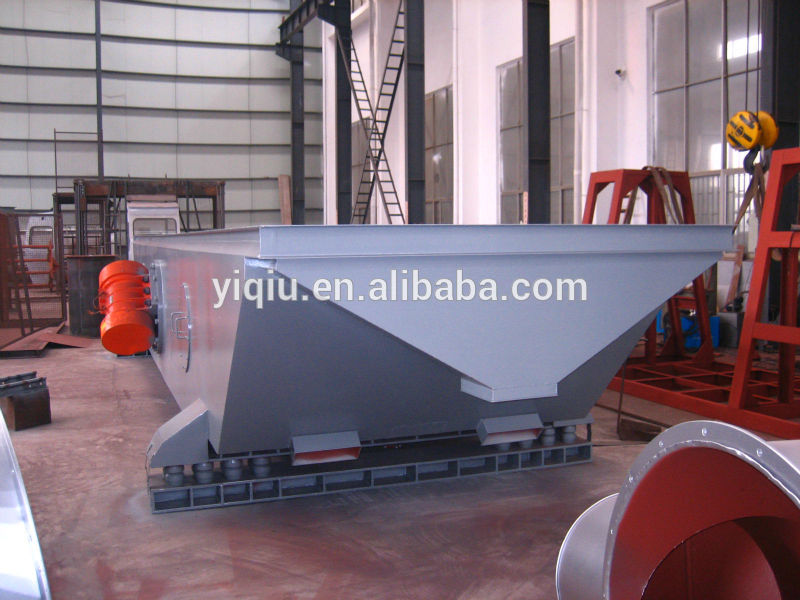

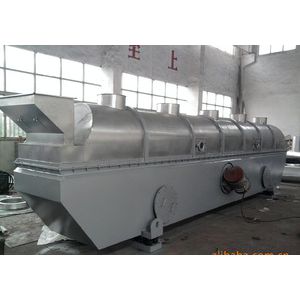

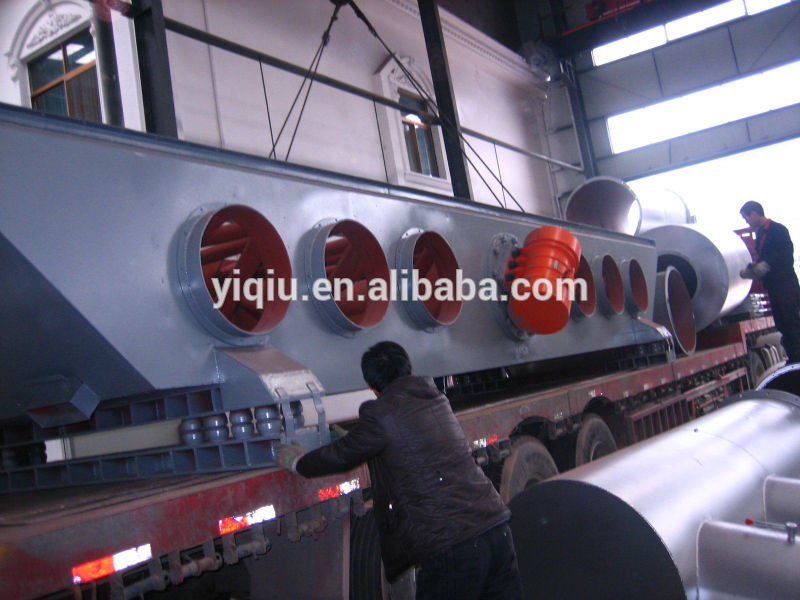

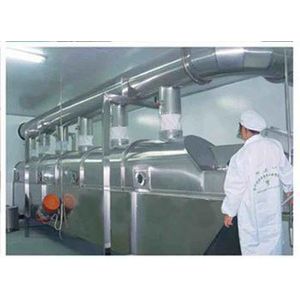

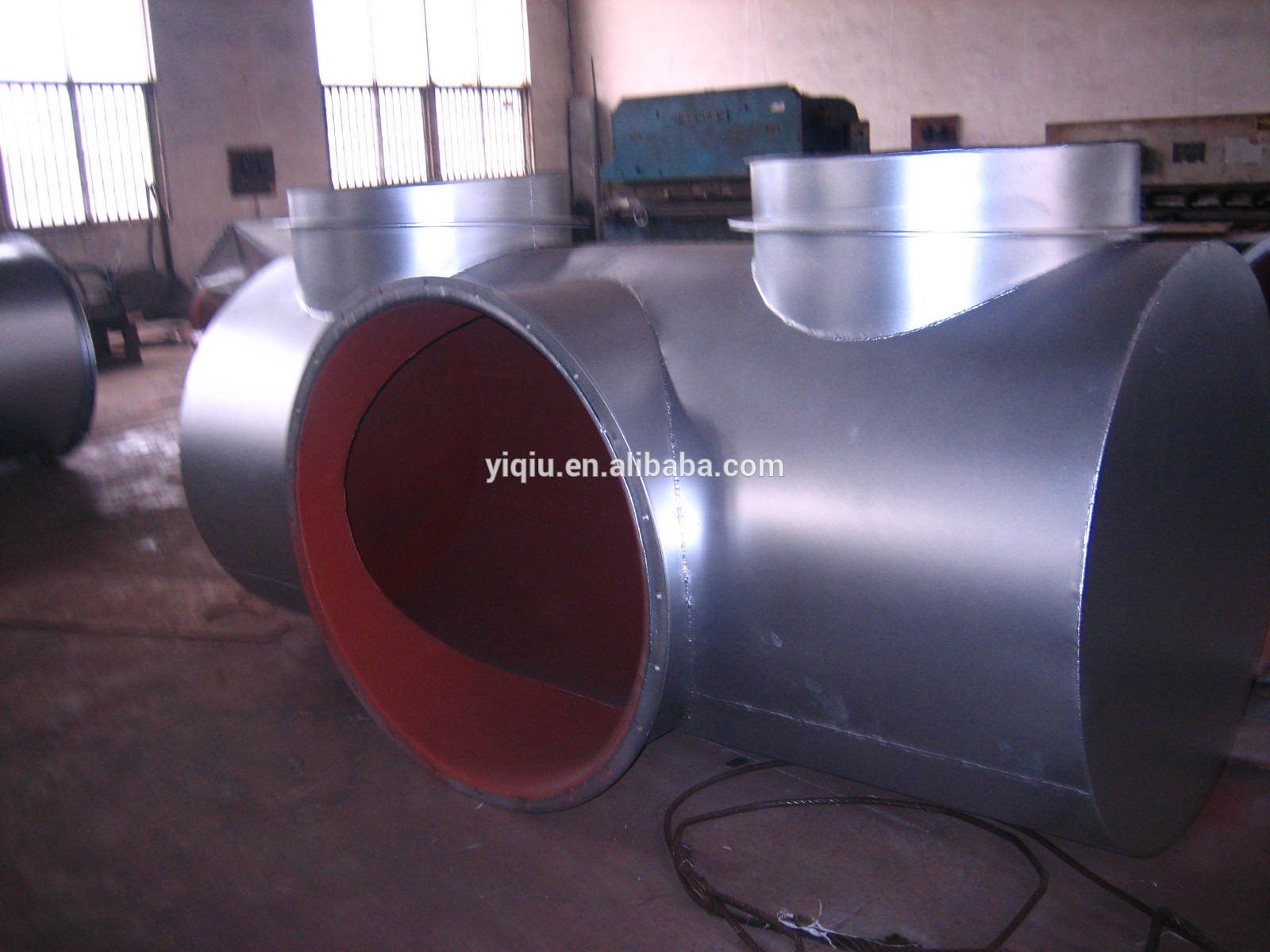

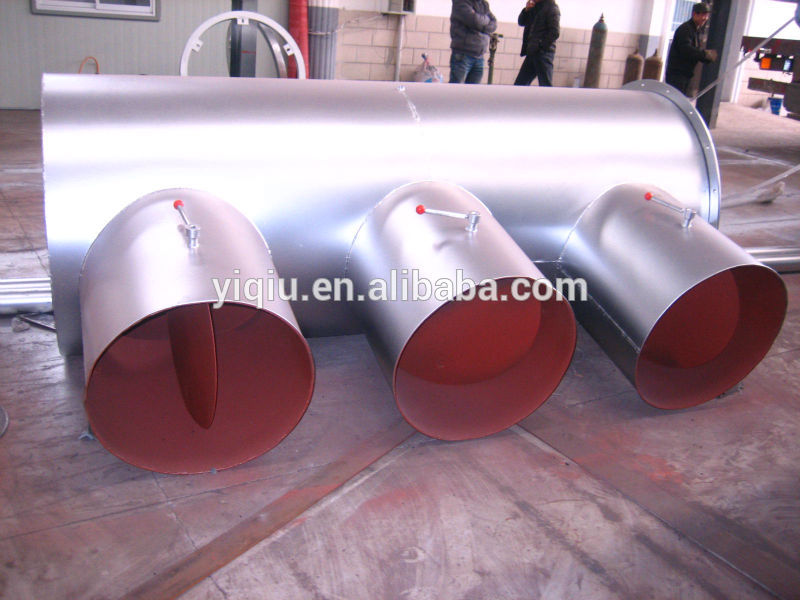

Detailed Images
