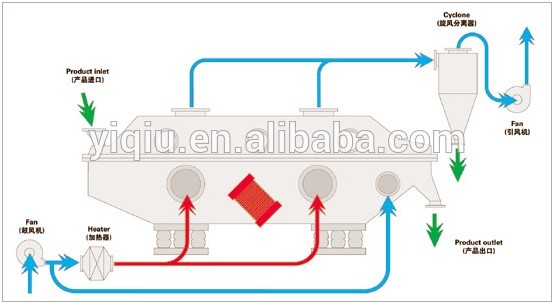

Working principle:
Raw material is fed into the machine from inlet, and moves forward continuously along with the level of fluidized-bed under action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.

Scope of application:

1) Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid
2) Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds
3) Can also be used for raw materials to add up damp or cooling

Features:

1) Raw material is heated evenly and heat exchange is fully used. Dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%
2) Vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life
3) The fluidized state is stable and no dead angle and phenomenon of breaking out
4) Good in regulation and wide in suitability
5) Small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials giving anomalous shape
6) It is effective to prevent from cross pollution between raw materials and air,because the equipment adopts fully closed structure. The environment of operation is clean.

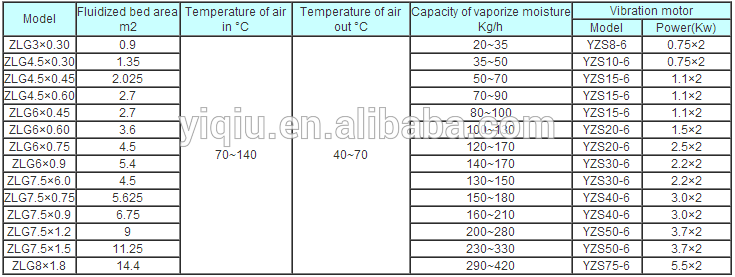

Technical parameters:

Machine Parts

Name: Air Outlet

Brand: YIQIU

Original: China

The whole machine is made of SUS304 stainless steel

Main Features

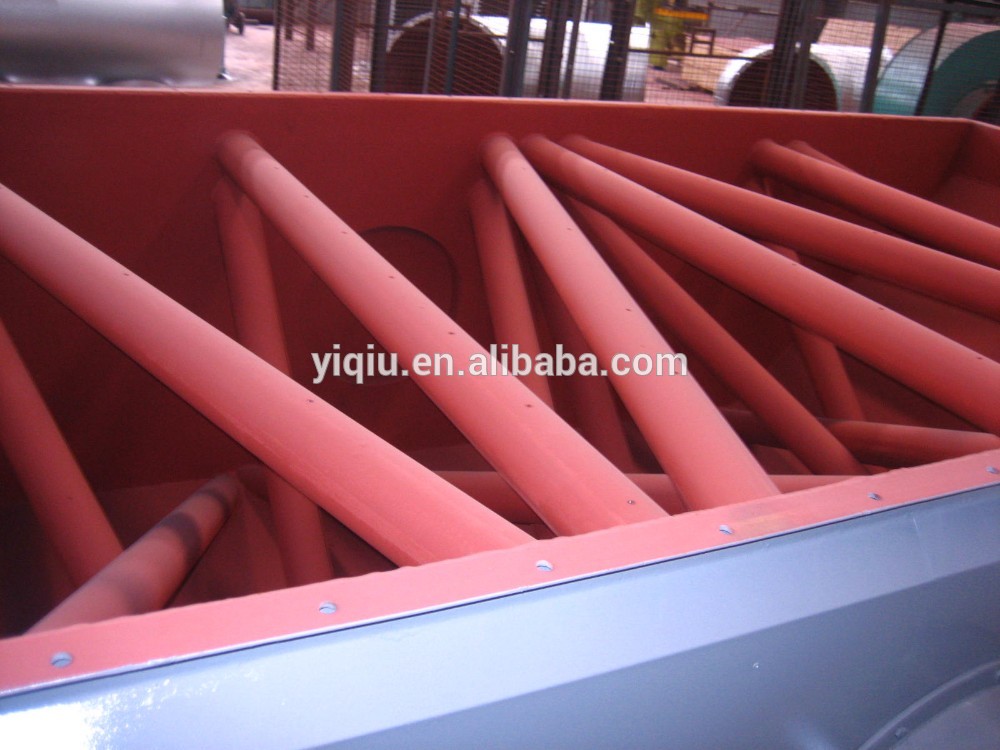

Name: Internal figure of vibrating fluidized bed
Brand: YIQIU
Original: China
Spray anticorrosive paint to increase durability

Machine Parts

Name: Induced draft fan
Brand: YIQIU
Original: China
High efficiency, high performance, low noise, good fan performance, is extremely ideal efficient energy-saving fan.

Main Features

Name: Cyclone separator
Brand: YIQIU
Original: China
Collect material,have dust removal function.

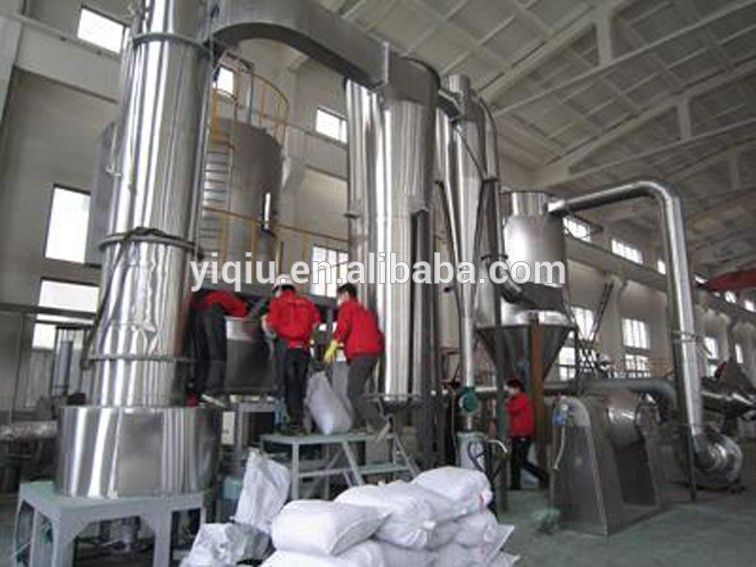

installation & debugging
