groundnut/gluten/steam vacuum rotary dryer

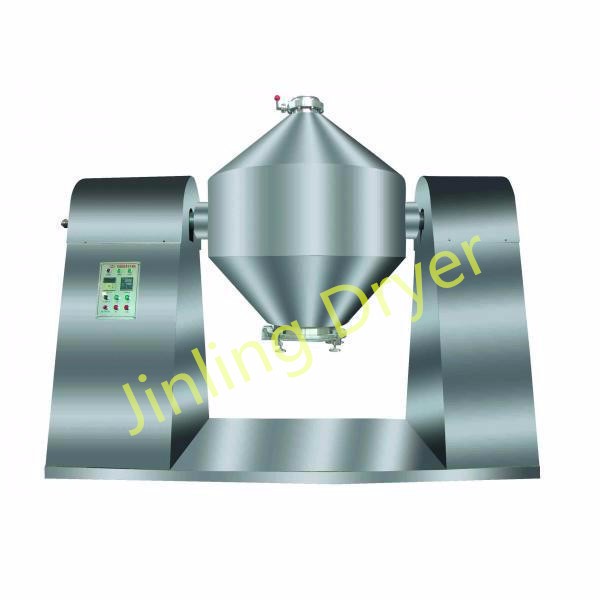

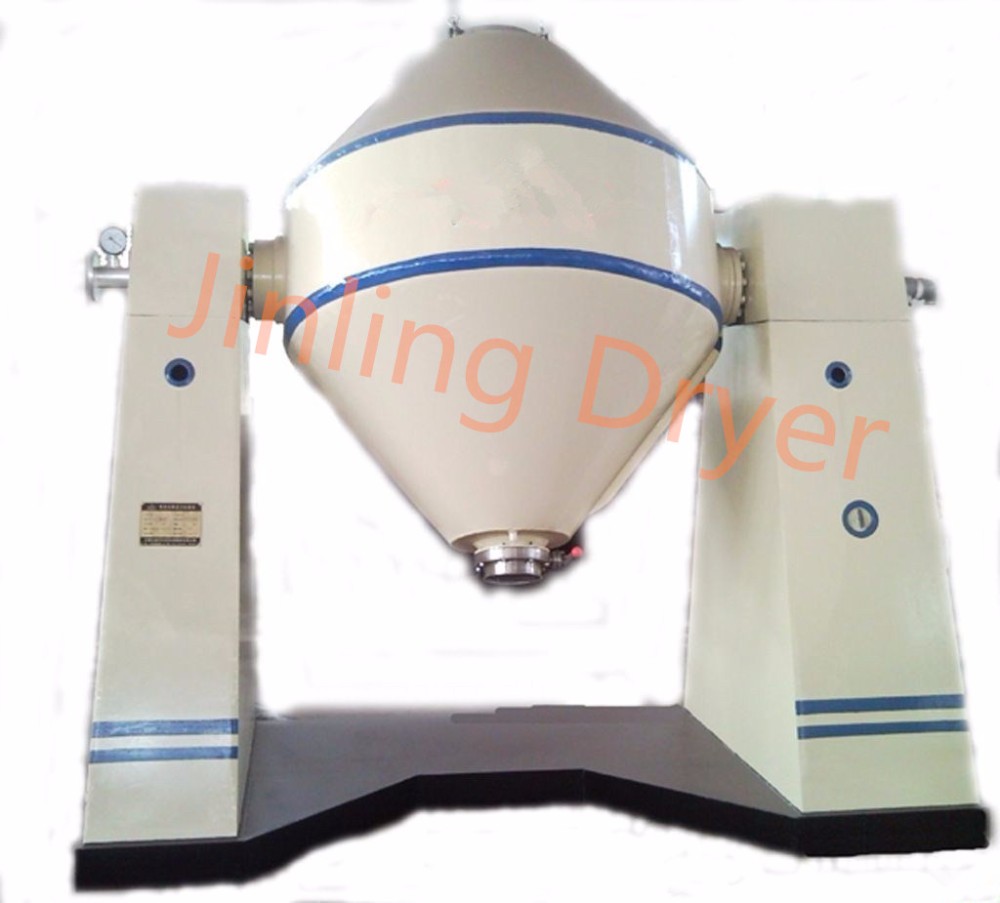

SZG Vacuum Rotary Dryer is a kind of double conical vacuum dryer.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Jiangsu, China (Mainland)
  • changjin
  • SZG
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~100

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
changjin
Model Number
SZG
Voltage
220v/380v
Power(W)
15kw
Dimension(L*W*H)
20m*2.4m*2.4m
Weight
1500kg
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
vacuum rotary dryer
Name
vacuum rotary dryer
Application
Chemical
Heating source
Electricity
Material
Stainless Steel
Capacity
400-500kg/h
Usage
Reduce Material's Moisture
Color
Silver
Raw material
Liquid Form Material
Installation
Engineer Guide

DETAIL DESCRIPTION

Product Description

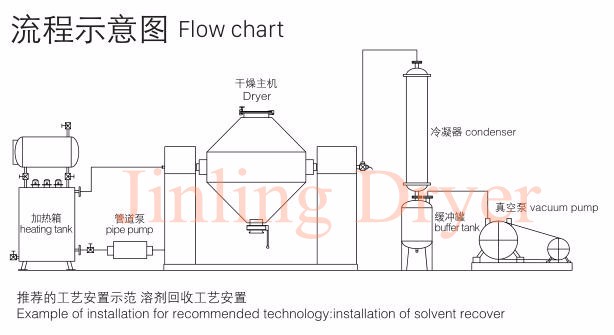

Principle of SZG  vacuum rotary dryer

◆SZG Vacuum Rotary Dryer is a kind of double conical vacuum dryer. Under the vacuum condition, filling the heat medium into dryer jacket, raw material being dried with the contact of dryer chamber. Evaporated moisture is sucked out by vacuum pump. Due to the rotating of dryer body, raw material is moving inside the chamber, which increase the drying speed and uniformity.

The dryer is suitable for powder and granule form raw material with good fluidity.

Explanation of SZG vacuum rotary dryer

◆ _The dryer is suitable for drying and mixing powder or granule shape raw material of pharmaceutical industry, foodstuff industry, chemical industry and so on.

◆ _Flammable and explosive material drying should be clamed.

◆ _When use hot water or heat conducting oil as heating resource, should be claimed before the order. Please claimed when order if need certificate of pressure vessel.

◆ _Please claim it when need GMP standard. (It should use direct gear drive, closed construction, vacuum cover is sintered metal mesh).

◆ _Material:SS304/SS316L/SS321/ hastelloy etc, inner wall is enamel for your choice.

◆ _We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger than 2000L

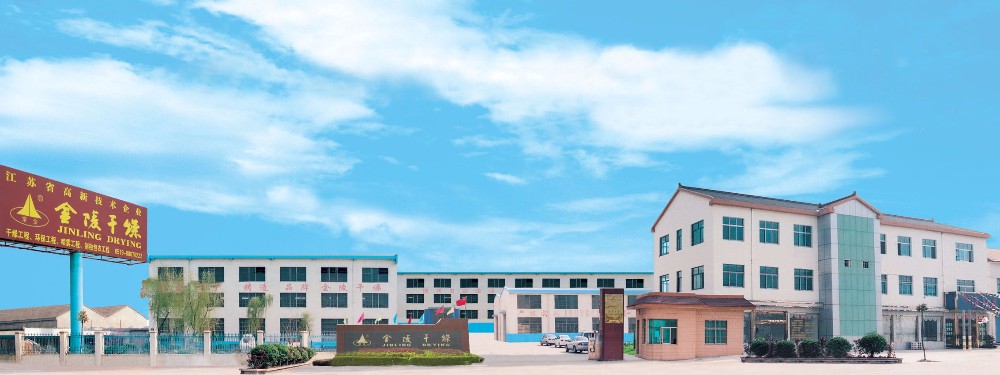

Our Company
Equipment and staff
Certifications
Clients

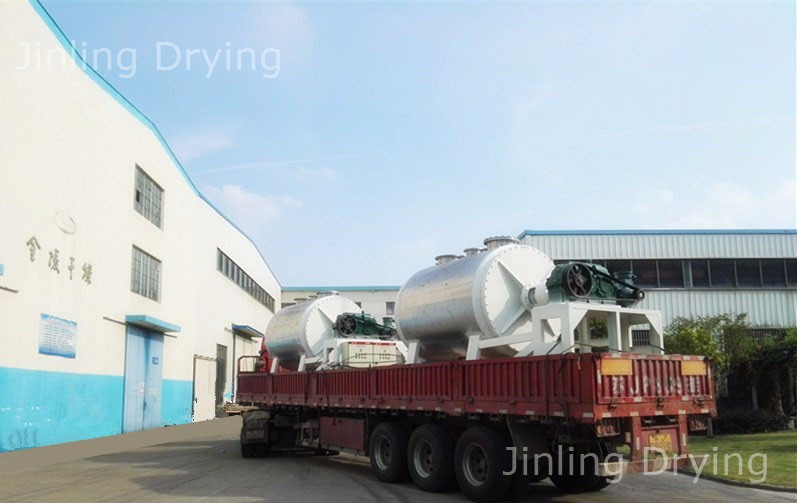

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

We need to know the follow information,so that we can help you better.

1.What is your drying material?

2.What is your production? (batch production or continuous production)

3.what is your heating medium?
