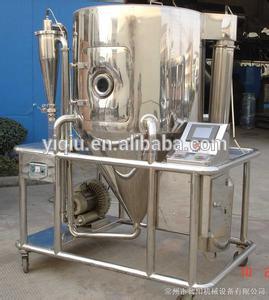

LPG series wheat gluten spray dryer

The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, r

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • YIQIU ZHONGYA
  • LPG
  • 220-440v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~300

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
YIQIU ZHONGYA
Model Number
LPG
Voltage
220-440v
Power(W)
30-95kw
Dimension(L*W*H)
1.6*1.1*1.75-14.5*14*15
Weight
1-20t
Certification
ISO9001
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Water evaporation capacity
5-6500kg/h
Revolution of atomizer
12000-25000rpm
Max electric heating power
8-99kw
Diameter of atomizing tray
60-210mm
Hoisting height of nozzle
2.5-3.2m

DETAIL DESCRIPTION

  LPG series pectin spray dryer

Product Description

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Features

 1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
2. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.

3.The producition procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Technical parameters
ParamtersType:LPG
52550100150200-2000
Inlet temperature °C 140~350 Automatically controlled

Outlet temperature °C

~80-90
Water evaporation capacity kg/h52550100150200-2000
Drying form of centrifugal nozzle Compressed airMechanism drive
Revolution of atomizer (r.p.m) 25000180001800018000150008000-15000
Diameter of atomizing disc(mm) 50100120140150180-340
Heating source ElectricityElectricity+SteamElectricity+Steam,Oil fuel,gasDepends on the user
Max. power of electric heater KW936638199
Overall dimension (m) 1.8×0.93×2.2 3×2.7×4.26 3.7×3.2×5.1 4.6×4.2×6 5.5×4.5×7 Depends on practical conditions
Dried powder recovery rate %≥95≥95≥95≥95≥95≥95

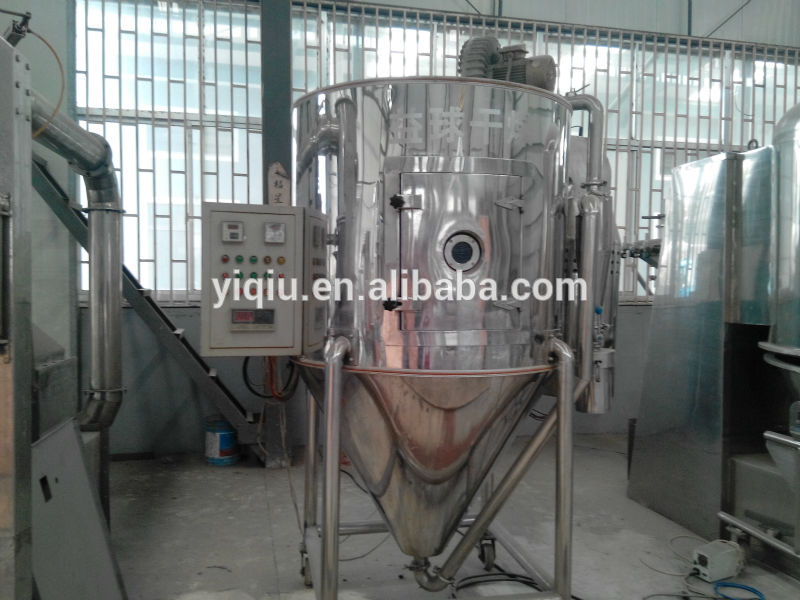

Detailed Images
