Introduction:
BL Series Airflow Sieve adopts cylinder screen, installed inside the machine body. The material is transferred by screw conveyor, and then mixed with the airflow, atomized and enter into the cylinder screen. The small particles are sprayed through the screen and then discharged from the outlet port by centrifugal force and whirlwind propulsion force of the rotor vane inside the screen. The large particles are discharged from the other outlet port.
BL Series Airflow Sieve is specially suitable for fine, ultra fine materials such as spices, seasonings, flour, starch etc.
Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.
Features:
- Stable performance, no vibration, low nosie.
- Well sealed, no dust spillover.
- Hygienic design sifting screen.
- No tools required for screen, paddle and screw removal.
- Fully rotatable screen for in-situ inspection.
- Different screens are available: nylon, woven wire and wedge wire.
Detailed Applications:
- Food Industries: starch, spices, seasonings, milk powder,egg powder, rice flour, wheat flour, beans powder, food additives etc.
- Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.
Specifications:
Model | Material | Screen cage sizemm (diameter*length) | Screen material |
BL 30-100 | Q235A Carbon steel | 300mm*1000mm |
Stainless steel or Nylon screen |
SUS Stainless steel | 300mm*1000mm | ||
BL 50-130 | Q235A Carbon steel | 500mm*1300mm | |
SUS Stainless steel | 500mm*1300mm | ||
BL 65-180 | Q235A Carbon steel | 650mm*1800mm | |
SUS Stainless steel | 650mm*1800mm |

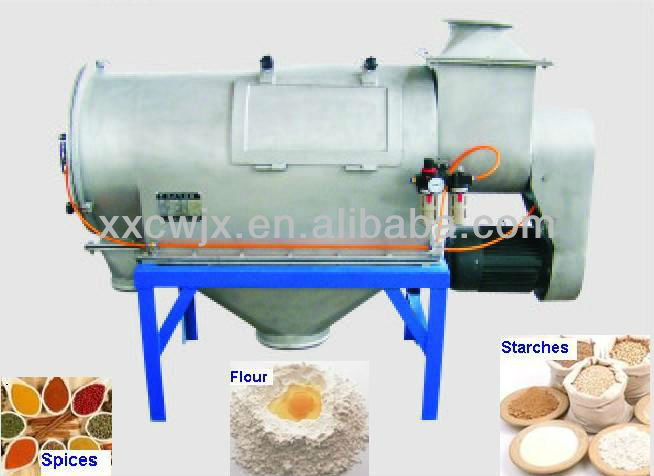

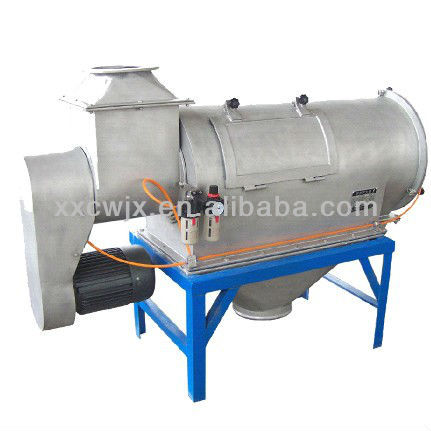

Pictures Show:
