Automatic separator citric acid tumbler vibrating sieve from Xinxiang

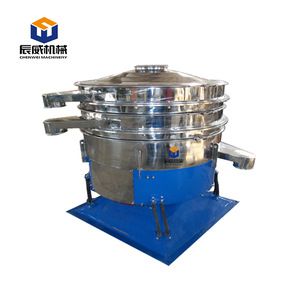

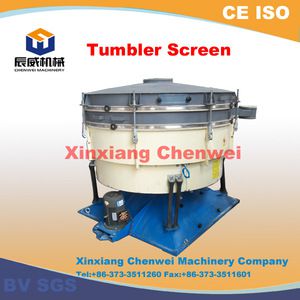

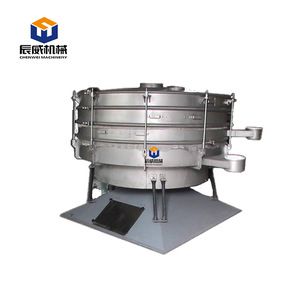

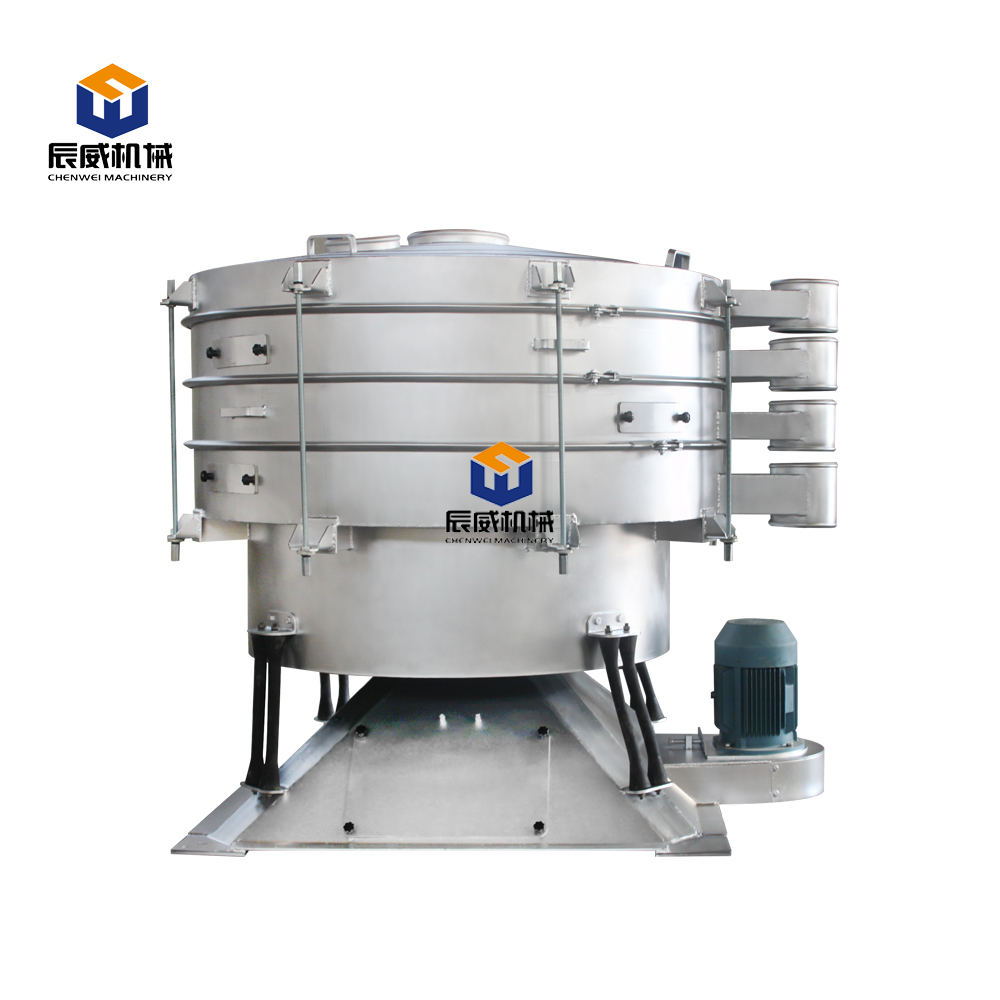

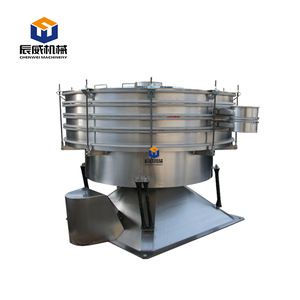

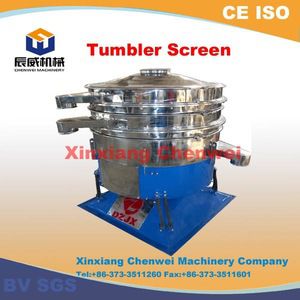

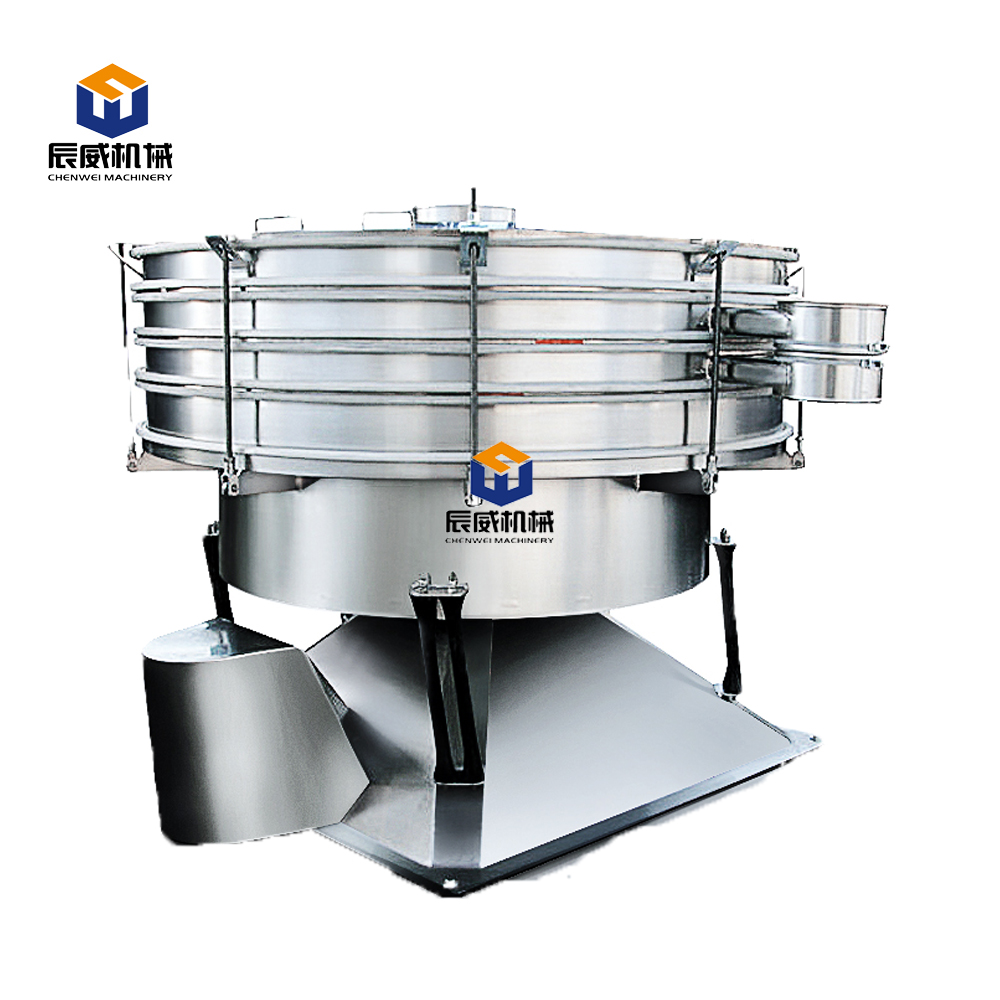

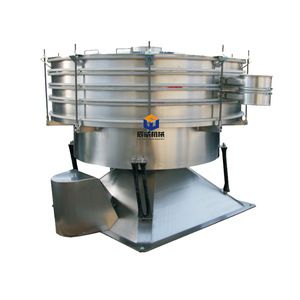

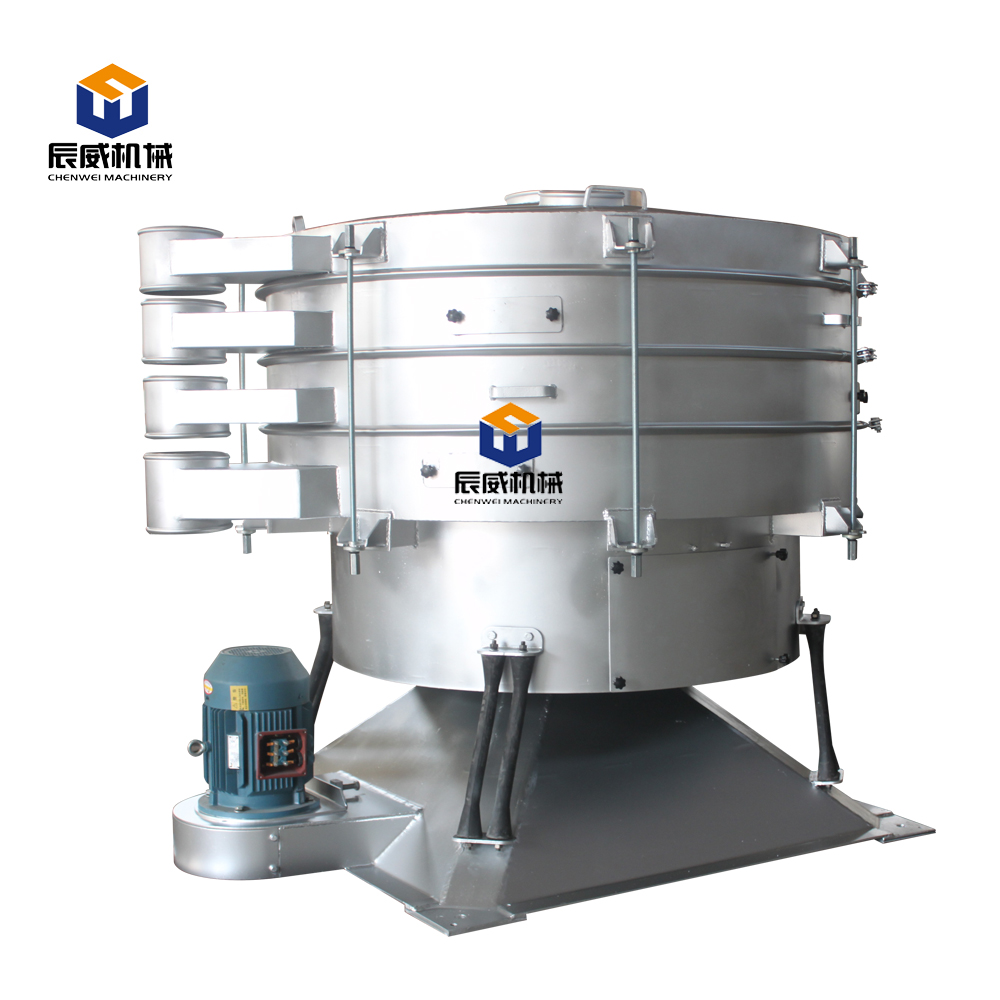

Brief introduction of tumbler sieve
The tumbler sieve machine is an efficient screening machine which is designed to meet the large output , high screening accurate of manufacture. The movement is similar with hand screening. Because of the motion trajectory of the griddle box, the tumbler sieve machine is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly. It is suitable for fine powder,needle shape material etc.
Features of tumbler sieve
| 1. High efficient accurate screening---Screening efficiency up to 99%. |
| 2.Fully enclosed structure, no powder flying, no liquid leak. |
| 3.Low-noise, easy to maintain and simple operation |
| 4.The materials can quickly access to the screen inserts. |
| 5.Modular design permits various machine modifications. |
| 6.Discharge the impurity and coarse materials automatically, |
Application of tumbler sieve
1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
5.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

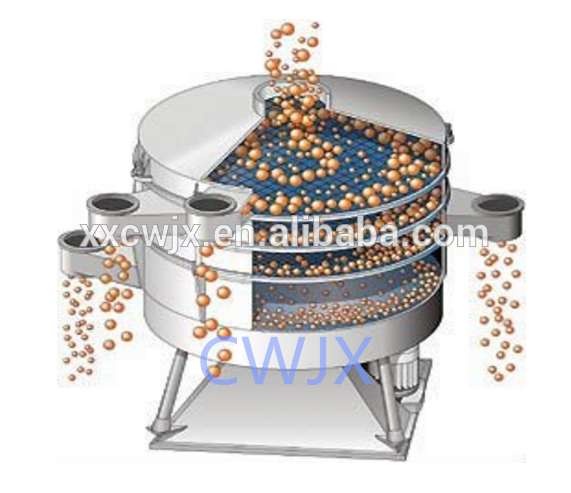

when the machine begins to work,the vibrating part---the screen box takes circling motion under the influence of the vibrating force.The screen box drive the sieve to take circling motion periodicity,The materials is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. so the material on screen surface take bounce motion,meanwhile,the material less than the aperture drop to the next deck,and the oversize are discharged by the outlet. Finally, the screening work is completed. From the aspect of its structure and working principle, the exciter can circumgyrate in two ways according to the motion of the material, uniformly or contrarily. As a result, we'd better make a choice between throughput and efficiency according to our practical demand.
Technical parameter.
| Model | Screen mesh area(m2) | Screen slope | Frequency(rpm) | Granularity size(mm) | Amplitude(mm) | Powder(Kw) |
| CWYS-600 | 0.28 | 0-100 | 220-280 | <100 | 20-70 | 0.75 |
| CWYS-1000 | 0.66 | 1.5 | ||||
| CWYS-1200 | 0.98 | 2.2 | ||||
| CWYS-1500 | 1.67 | 3.0 | ||||
| CWYS-1800 | 2.37 | 4.0 | ||||
| CWYS-2000 | 2.89 | 4.0 | ||||
| CWYS-2600 | 5.3 | 5.5 |
Automatic separator citric acid tumbler vibrating sieve from Xinxiang

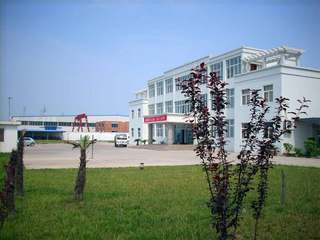

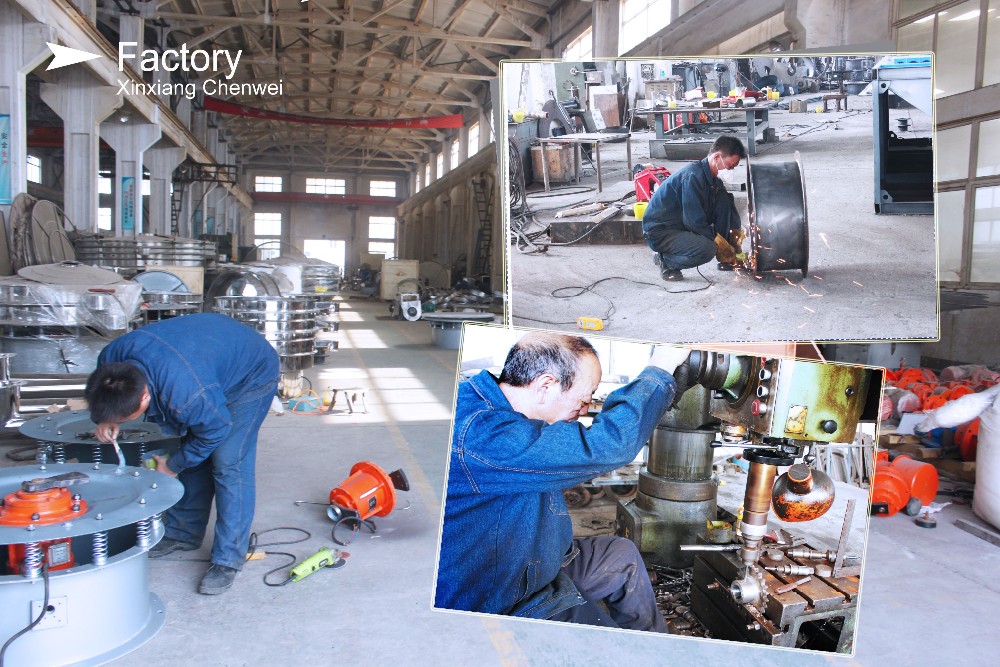

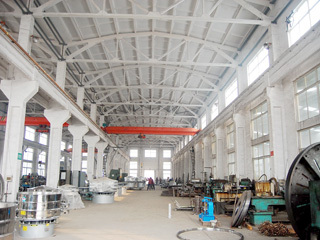

Xinxiang Chenwei Machinery Co., Ltd found in 1987 which has a professional team, is a manufacturer of tumbler sieve machines, round vibrating sieving machines,tiny electromagnetic feeders, centrifugal sifters, vacuum feeder machines,gyratory screens and aluminum foil tape with well quipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining,pharmacy, food, chemical,metal powder and other industries.
Our service of tumbler sieve
1.Free maintenance. We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
2.Free period follow-up . We can offer free online service for 24 hours. If you have any questions, we can help you solve the problem. We can provide our clients with twelve months warranty for any machine purchased from us. During the warranty period, the defective parts will be replaced or repair free of charge.
3. Free installation video. We are a professional manufacturer and have the ability to provide clients with overall installation by video. We can provide the clients User manual and Printed copy.
FAQ.
Q： What information do we need to help you choose a perfect machine?
1. Name and feature of the raw material
2.Aim of using: get rid of impurity, filtration, grading
3.granularity distribution
4.Handling capacity: kg /h, L/h
5.The raw material size: (mesh or mm)
6.The moisture of the material

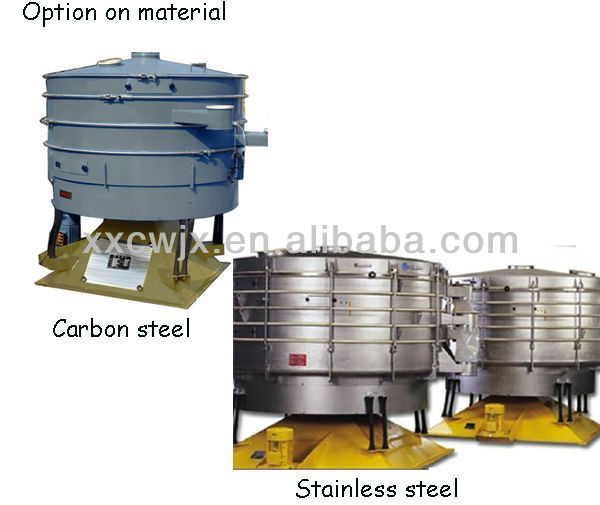

7.The material of construction （stainless steel SUS 304 or 316, carbon steel Q 235 A）

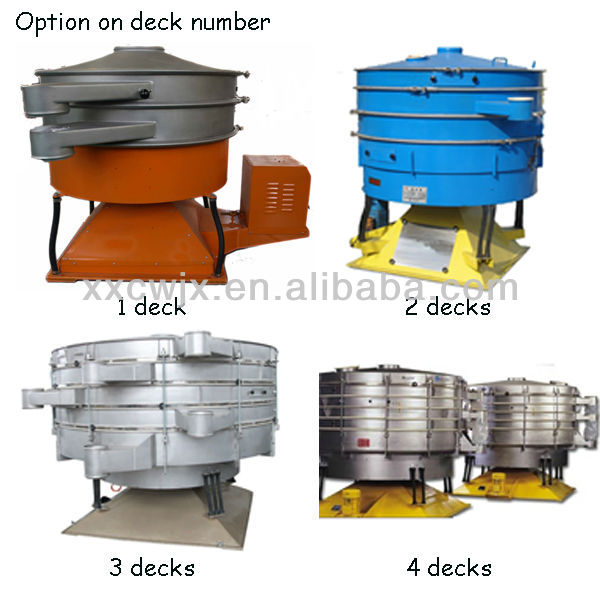

8.How many layers you need?
9.The voltage , frenquency, phase (single or three)
Note: You'd better send us the relevent pictures or some materials you want to sift , it can assure us to recommend the suitable machine for you.
Q:Can I ask some special and customize design?
A: Yes, we can make a suitable machine for you according to your request.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
Best service for clients is our goal. As a professional company in manufacturing the tumbler sieve machines ,separator sieving , rotary ultrasonic vibrator sifters, tiny electromagnetic feeders, centrifugal sifters, gyratory screens and so on , we are pleased to offer you the best product in a reasonable price.
If you have any questions or sugestions for our products , please feel free to contact with us . We are pleased to accept your valuable advice.
