Company Description
Xinxiang Chenwei Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens and aluminum foil tape with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries

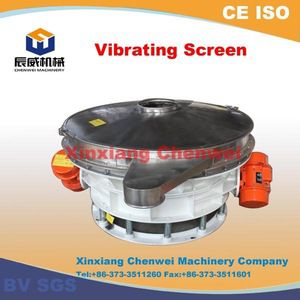

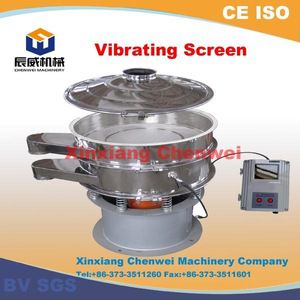

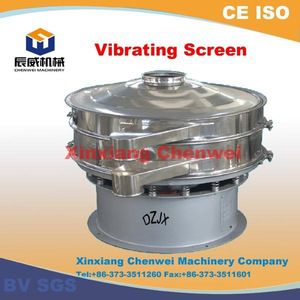

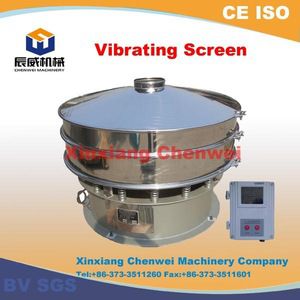

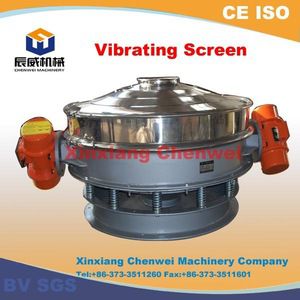

Vibro-energy round vibrating screen separator for food processing for grading wet or dry materials up to five fractions in one operation
CWJX machinery Separators effectively grade and separate materials on up to four mesh decks. These revolutionary vibratory separators are designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in separation technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.
Enjoy the many benefits these Vibro-energy round vibrating screen separator for food processing can offer you
High capacity- Real improvements are achieved over conventional round separators in terms of increased capacity
Greater accuracy- Full material flow on all 4 mesh screens providing accurate grading and separation
Lower noise- less than 75dB
Ease of operation and lower maintenance- The design of the vibrator housing on these separators allow for standard motors to be used rather than vibratory type, keeping maintenance costs to a minimum
Ease of maneuverability- The separators stand on 4 rubber feet, and can be moved about a plant quite readily by means of pallet or forklift truck
To best fit these vibratory separators into your production line and to make sure we can handle whatever throughput you require, the CWJX Separator is available in six sizes: 400mm, 600mm, 80mm and 1000mm, 1200mm, 1500mm, 1800mm and 2000mm diameter. Please check the parameter table as blow,
Model | Diameter (mm) | Layers | Dia.of sieve area(mm) | Mesh range | Max.feeding size (mm) | power(kW) |
S496-B | Φ654 | 1-5 | Φ410 |
2-325 mesh | <20 | 0.5 |
S498-B | Φ800 | 1-5 | Φ710 | <30 | 0.75 | |
S4910-B | Φ950 | 1-5 | Φ860 | <30 | 0.8 | |
S4912-B | Φ1160 | 1-5 | Φ1110 | <30 | 1.5 | |
S4915-B | Φ1500 | 1-5 | Φ1410 | <50 | 2.2 | |
S4918-B | Φ1768 | 1-5 | Φ1710 | <50 | 2.5 | |
S4920-B | Φ1950 | 1-5 | Φ1910 | <60 | 2.5 |
Ultrasonic and rubber ball
1.Ultrasonic system can avoid the trouble of mesh-blinding caused by the static or fine ash .Especially, for the powder below mesh size of 80(0.18mm)
2.Rubber ball: It is the alternative cleaning device depending on the material properties. We will make the decision according to the procedure in practice.
Industries served by CWJX Vibro-energy round vibrating screen separator for food processing include:
Food- Food ingredients, confectionery, chocolate, etc.
Chemicals- Chemical powders or liquids
Metals- Metal powders, alloys, etc.
Pharmaceuticals- Pharma powders, active powders, etc.
Ceramics- Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc.
And many more...
FAQ:
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size,deck number & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of CWJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
As the professional manufacturer of screening & conveying equipments since 1987, we are pleased to offer you the best product in a competitive price.
Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
