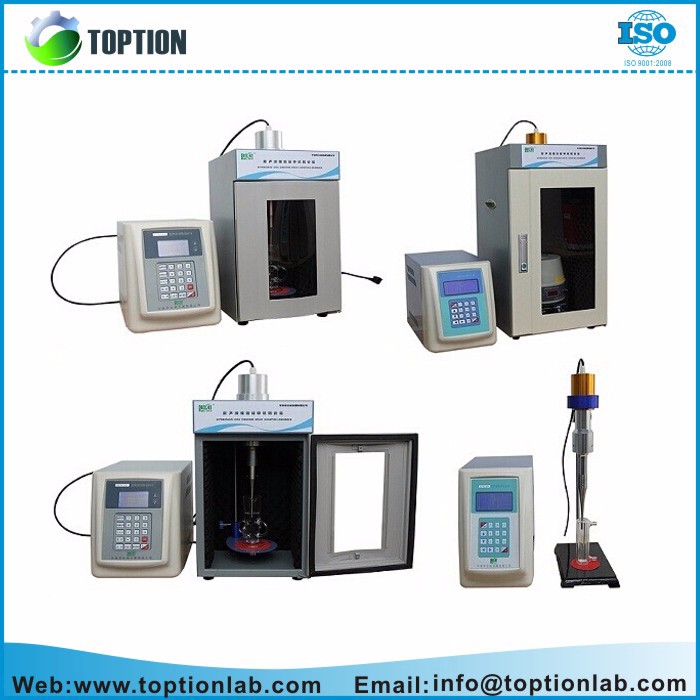

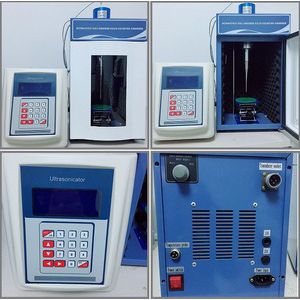

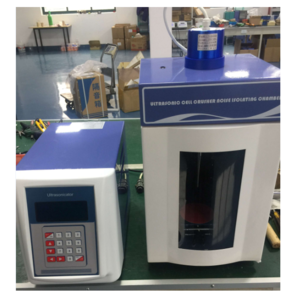

TUE-500 TOPTION LCD display chemical machine Ultrasonic Materials Disperser Ultrasonic Homogenizer
Function description of TUE-500 TOPTION LCD display chemical machine Ultrasonic Materials Disperser Ultrasonic Homogenizer:
Ultrasonic Homogenizer through its “cavitation effect” achieve oil blended with water emulsification, water blended with oil emulsification, dispersion phase and continuous phase mixing homogenization, it’s an advanced phonochemistry method to replace the traditional emulsify process such as propeller and colloid mill,etc. An important feature of ultrasonic emulsify is that you don’t need use or use little emulgator to get most stable emulsion.
The core content of ultrasonic nanotechnology is to solve agglomeration of nano particles problem, as nano particles themselves is easy to reunite, want to get single dispersive nano particle is very difficult, so how to make nano particles uniform disperse into basal body, this is the key technology of nanotechnology.
TOPTION brand ultrasonic series products all use ultrasonic “cavitation effect” to disperse the glomerate particles. Add particle suspension liquid (liquid phase) in super strong sound field, use suitable ultrasonic amplitude to process.
As the inherent feature of powder particle aggregation, for some powder which is dispersed not well in medium, you could add suitable dispersing agent to make dispersion keep stable, generally could reach dozens of nano, even smaller. This type ultrasonic material emulsifying dispenser is most suitable to disperse nanometer materials (such as carbon nano tube, graphene, silicon dioxide).
Technical parameter of TUE-500 TOPTION LCD display chemical machine Ultrasonic Materials Disperser Ultrasonic Homogenizer:
Food industry, paper making, oil paint, chemical industry, pharmaceutical, spinning, fuel oil thermoelectricity, fuel oil central air-conditioning, oil, metallurgy, etc. Fuel oil blended with water combustion is an important arisen program now.
| Model (laboratory / small capacity test) | TUE-500 | TUE-1000 | TUE-1500 | TUE-3000 |
| Frequency(KHz) | 20-30KHz Automatic tracking | 20-25KHz Automatic tracking | 19.5-20.5KHz Automatic tracking | 19.5-20.5KHz Automatic tracking |
| Power(W) | 5-500W adjustable | 10-1000W adjustable | 20-1500W adjustable | 300-3000W adjustable |
| Horn (mm) | Φ6 | Φ10 | Φ20 or 22 | Φ35 |
| Optional Horn (mm) | Φ2、Φ3、Φ8、Φ10 | Φ6、Φ8、Φ10、Φ12、Φ15 | Φ10、Φ15、Φ25 | Φ15、Φ25、Φ28 |
| Crush capacity (ml) | 0.2-400 | 10-600 | 50-1500 | 500-5000 |
| Instrument protection function | Over-temperature protection | Over-temperature protection | Over-temperature, protection | Over-temperature, protection |
| Display | LCD display | LCD display | LCD display | LCD display |

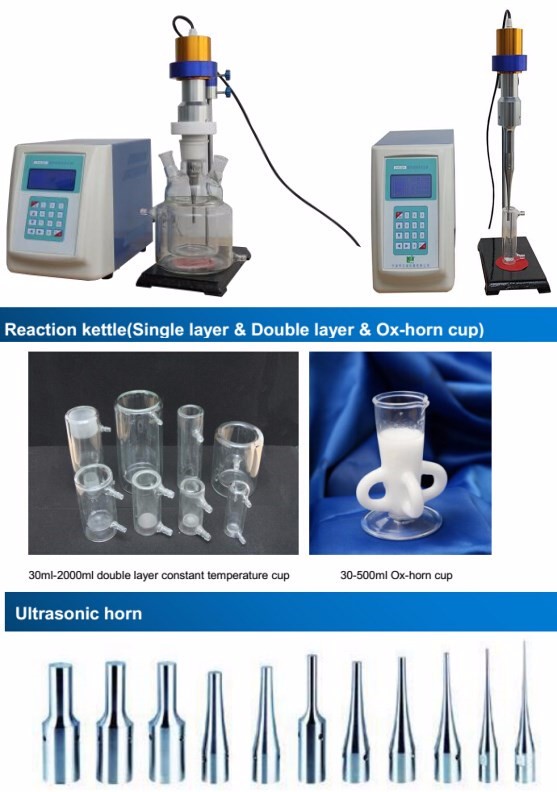

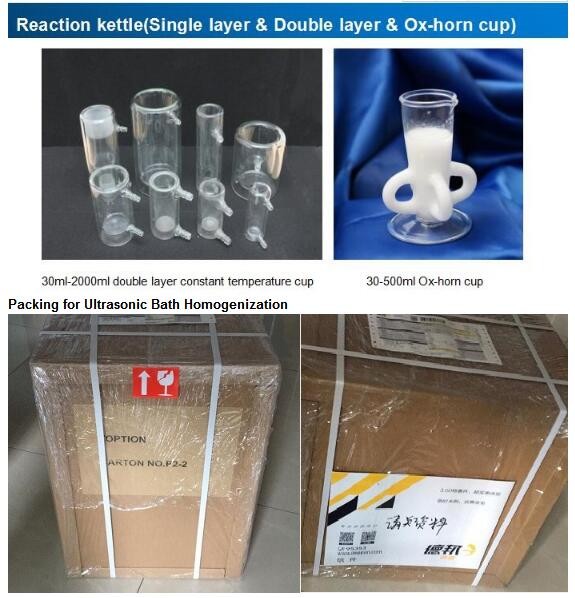

Reaction kettle(Single layer & Double layer) & Ox-horn cup
1.Double layer reaction cup is used for ultrasonic instruments, connect with high and low temperature / constant temperature bath could achieve system inner cooling, avoid sample changing caused by sample heating during ultrasonic process. This is more convenient than traditional ice-bath, the effect also is more ideal. General use high borosilicate glass GG17 material ( stainless steel material could be customized), high temperature or low temperature resistance, there’s two circulating joint / connector on the reaction cup, adopt double layer jacketed design, charging cool water or hot water to achieve system inner constant temperature. Common size: 30ml, 50ml, 100ml, 300ml, 500ml, 1000ml, 2000ml ( could customize based on your demand).
2. Ultrasonic dedicated crush cup is customized for the samples which is difficult to crush, for its structure the upper part is big and the under part is small, so the energy could be more concentrate during ultrasonic process, there’s multi reflux inlet to guarantee no dead angle of sample, this is good for sample homogeneity, cup mouth has stream guidance which is convenient for sample discharging.

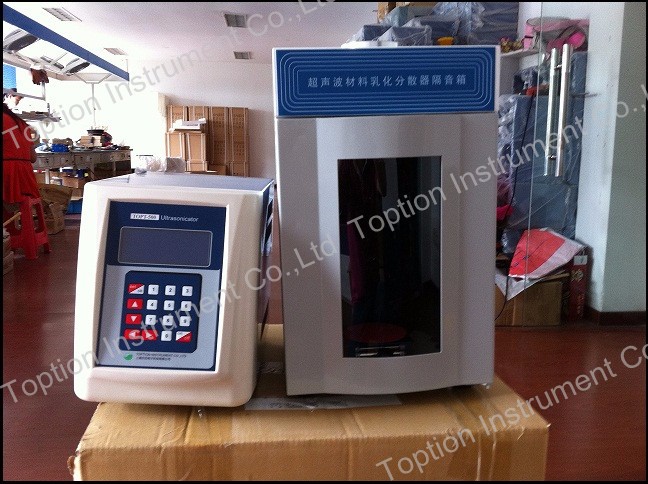

Packing of TUE-500 TOPTION LCD display chemical machine Ultrasonic Materials Disperser Ultrasonic Homogenizer
Certification of TUE-500 TOPTION LCD display chemical machine Ultrasonic Materials Disperser for sale
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

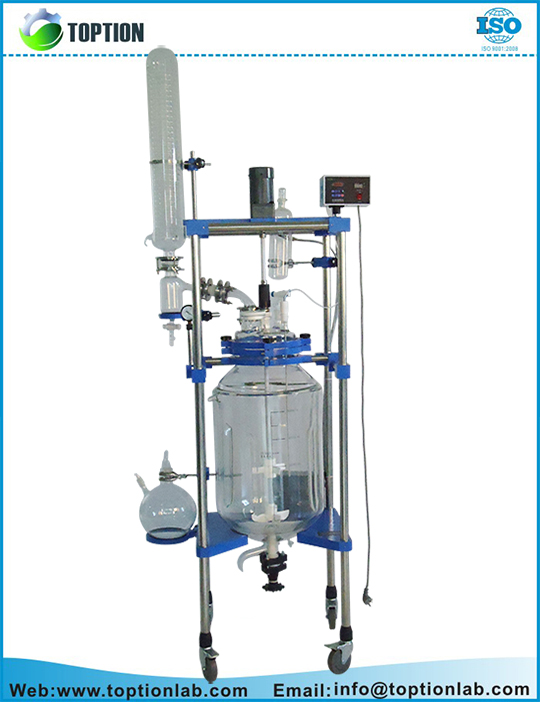

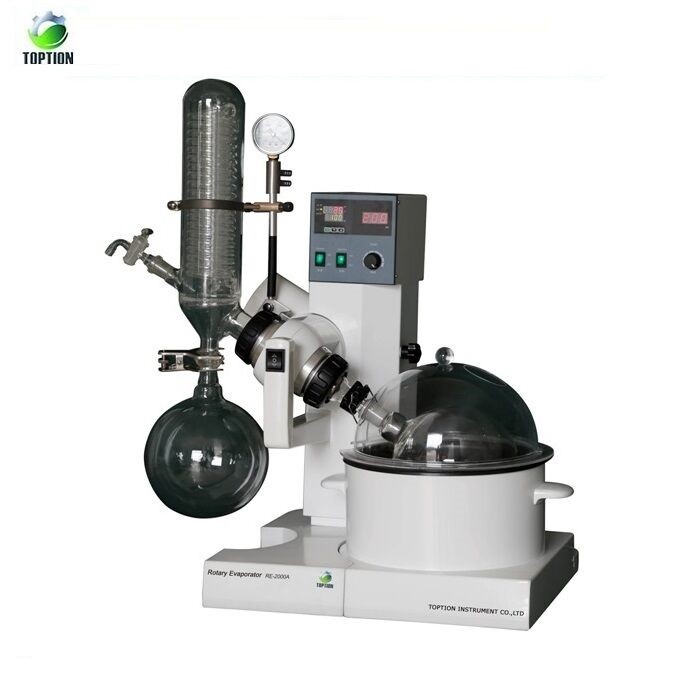

Rotary Evaporator Glass reactor Vacuum drying oven

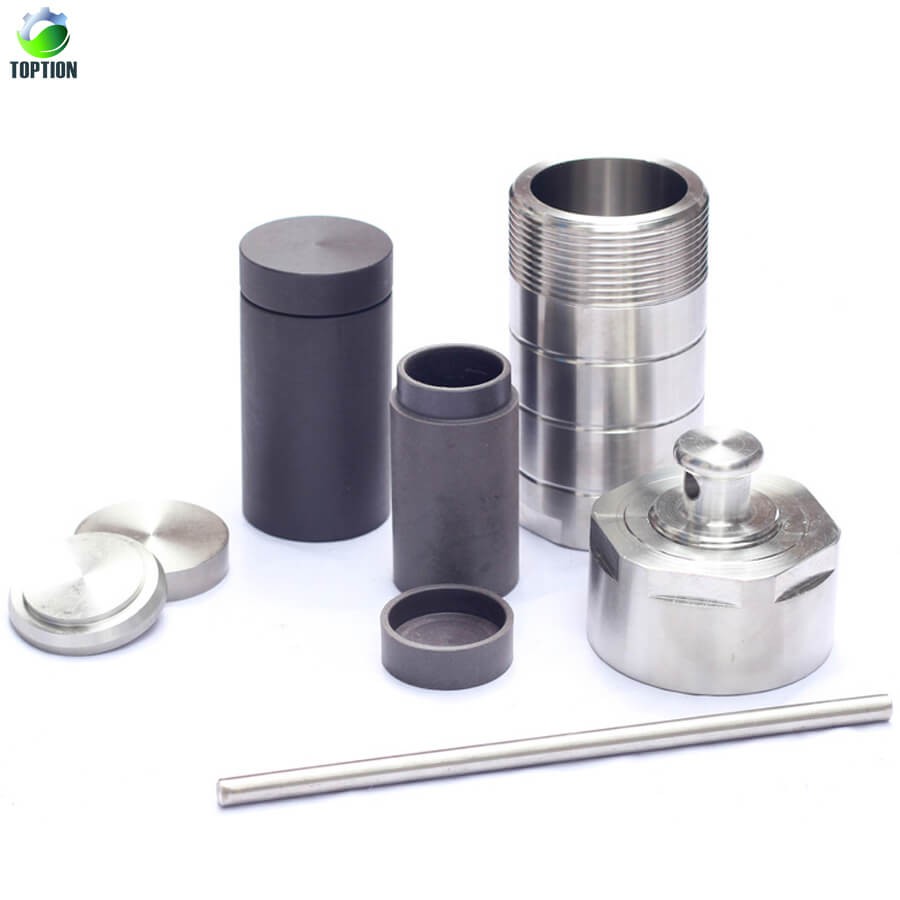

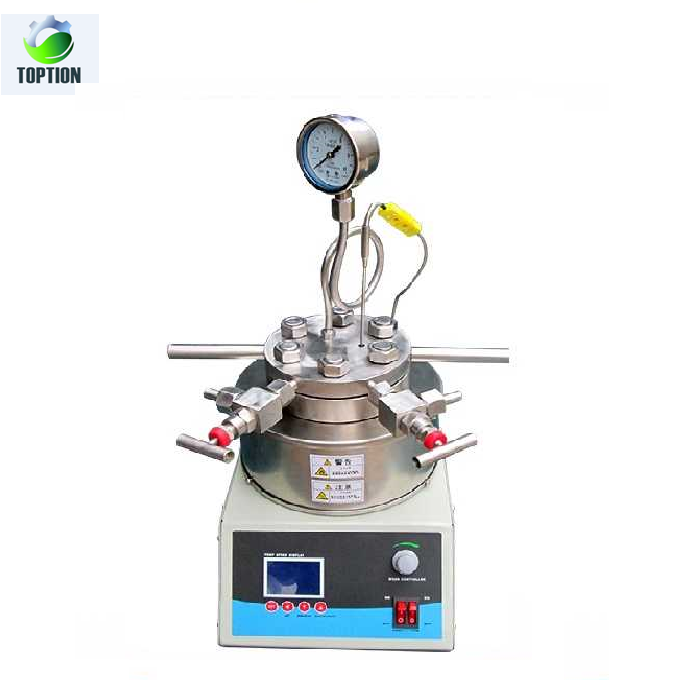

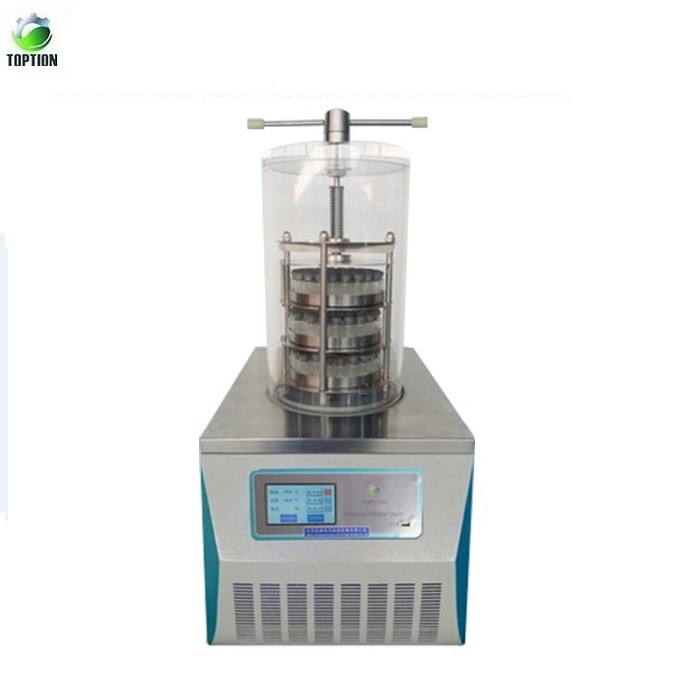

Freeze dryer High pressure reactor Hydrothermal reactor
