Thermostatic Closeness Ultrasonic Reactors design

Closeness reactor of ultrasonic Product Description

TOPT-1000D-type ultrasonic reactor temperature closed for sound chemical reaction, enzymatic reaction, nano-materials preparation, animal and plant cells, viruses, cell fragmentation, emulsification, smoothing, emulsion breaking, dehydration, separation, extraction, digestion and reduction, anti-foaming, oil desulfurization, refractory organic wastewater treatment, oil sludge cleaning off the oil, the remaining biological sludge dewatering, algae, algal, and sterilization, cleaning and so on. Also widely used in chemical engineering, materials engineering, environmental engineering, biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology and other fields.

Ultrasonic generator has two main categories:

• One is ultrasonic wave generated by mechanical methods, there are pneumatic (air whistle) and the hydraulic type (liquid whistle);
• another is the use of mechanical and electrical effect in the ultrasonic: ultrasonic cleaning machine with reactor, immersed in response to sound horn device and the cup reactor.

Acoustic horn shaped reactor is immersed in high-power ultrasonic transducer horn immersed in the liquid reaction, the large amount of energy directly to the reaction medium, an effective electrical energy into mechanical energy to make, and can be changed transported to the amplitude of ultrasonic probe size control of ultrasonic energy, laboratory extraction and chemical reactions commonly used in such equipment.
Sound horn immersion reactor has the advantage of sound intensity adjustable, get a higher intensity, disadvantage is difficult to control the temperature of reaction liquid, the probe surface by the cavitation corrosion reaction of the liquid may cause pollution.

We produced TOPT-1000D Ultrasonic reactor temperature completely closed its unique proprietary technology overcomes these drawbacks, but also solve the horn and the reactor sealed problem, which together with the attachment of various chemical reactor, sufficient to reaction system can achieve an atmosphere of isolation and vapor condensing back. Temperature control fully enclosed multi-band ultrasonic reactor structure is also suitable for further construction of a variety of new reactors, such as: Ultrasound in Airlift Reactor. Ultrasonic airlift loop reactor structure is simple, low cost, good effect, in the gas - liquid two-phase gas - liquid - solid three-phase reaction has great potential.

TOPT-1000D of the Emission intensity ultrasonic transducer can also be paired to reactor design focused ultrasonic energy to produce the shapes are powerful, the scalability of the product is very high, is a kind of multi-purpose material treated with ultrasound , multi-purpose instruments can be used as ultrasonic emulsification, ultrasonic homogenizer, ultrasonic cell crusher, ultrasonic crushing apparatus.

Technical parameters  of  Thermostatic Closeness Ultrasonic Reactors:
1. Operating frequency: 22 ± 1KHz
2. Ultrasonic power: 50 ~ 1000W
3. Horn: Φ10mm
4. Single capacity: 50 ~ 600ml
5. Temperature range: -5 ~ 100 ℃
6. Magnetic stirring: 0 ~ 2400 r / min
7. Reaction bottle neck: 50 #, 24 #, 24 #
8. Reaction bottle Type: Standard grinding mouth

Key Features of  Thermostatic Closeness Ultrasonic Reactors:
1. The whole closed structure, can access a variety of gases involved in reactions
2. Immersion ultrasonic horn, good effect
3. Ultrasonic power continuously adjustable, maximum power 50 ~ 1000W adjustable
4. Ultrasonic pulses individually switch, pulse excitation time is adjustable, pulse count of the number of automatic control
5. Ultrasonic transducer and liquid contact parts can be used titanium, corrosion-resistant
6. Double jacket glass reactor, 50 ~ 500mL reactor to choose from a variety of
7. Jacketed reactor volume, can pass into the cold water or oil bath, and achieve precise temperature control
8. Display and temperature control with temperature sensing devices can be directly immersed in the reaction system
9. Reactor can be connected to a reflux condenser, dropping funnel feeding, import gas bubble, vacuum exhaust and other chemical synthesis device accessories, chemical synthesis reactor suite of trace organic synthesis kit optional
10. Ultrasonic horn and reactors dedicated seal adapters, supporting various parts of the casing sealed into the reactor, the reaction is completely closed
11. Super magnetic stirring, to fully mix the sample

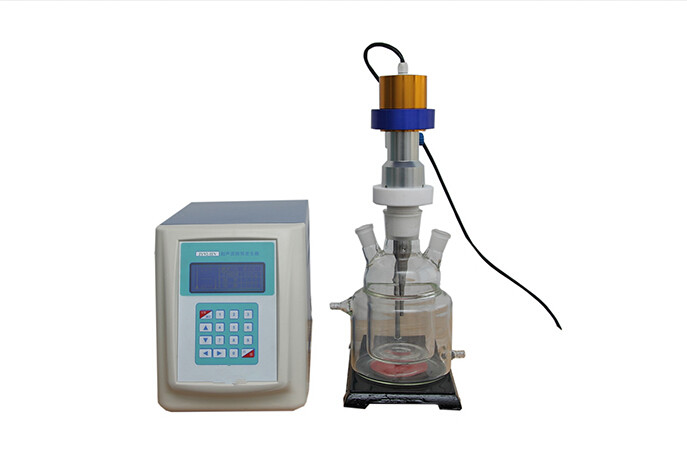

Photo of  Technical parameters  of  Thermostatic Closeness Ultrasonic Reactors:
