RD-30A Air Cooling Refrigerated Compressed Air Dryer

General consumption for RD-30A Air Cooling Refrigerated Compressed Air Dryer :

1. Capacity: 1.50-300.00 m³/min

2. Temperature of dew point: 2°C-8°C

3. Cooling way: air cooling or water cooling

4. Compressed air temp at inlet: for standard model: ≤45°C

                                                        For high temp model: ≤80°C

5. Air inlet pressure (mpa): 0.4-1.0 (can be customized if your requested pressure is high)

Working principle of RD-30A Air Cooling Refrigerated Compressed Air Dryer:

Refrigerated dryer with a cooling condensation working principle, mainly consists of the heat exchange system, cooling system and electrical control system. First, the compressed air into the pre-cooler for air - gas or air - water heat exchange, removing a portion of heat, then into the hot and cold air exchanger, makes heat changes with the cooled air which has come out from the evaporator and cooled to a pressure dew point. Then the compressed air temperature is further reduced. After the compressed air into the evaporator, the heat exchange with the refrigerant, the compressed air temperature to 0-8 °C, moisture in the air at this temperature for precipitation, separated by the gas-water separator, after automatic drainage discharge. The low-temperature and dry air enters cold air exchanger for heat exchange, the output temperature.

Main features of RD-30A Air Cooling Refrigerated Compressed Air Dryer:

1. The compressor is imported from US TECUMSEH, BRISTOL, France MANEURCP, etc, with stable performance, low noise, power saving, and long using life advantages.

2. Pre-cooler with inside and outside multi-finned exchanger tubes, Efficiency three times more than before, can help to save 60% power consumption.

3. Super evaporator design, suitable for all kinds of climate, ensures the stable dew point for you.

4. Air-water separator adopts double dissociation design, can separate and discharge the water totally.

5. Micro computer system is optional, this system with inlet and outlet temp display, dew point temp display, pressure display, mistake alarm functions. It can also help to realize the computer centralized controlling.

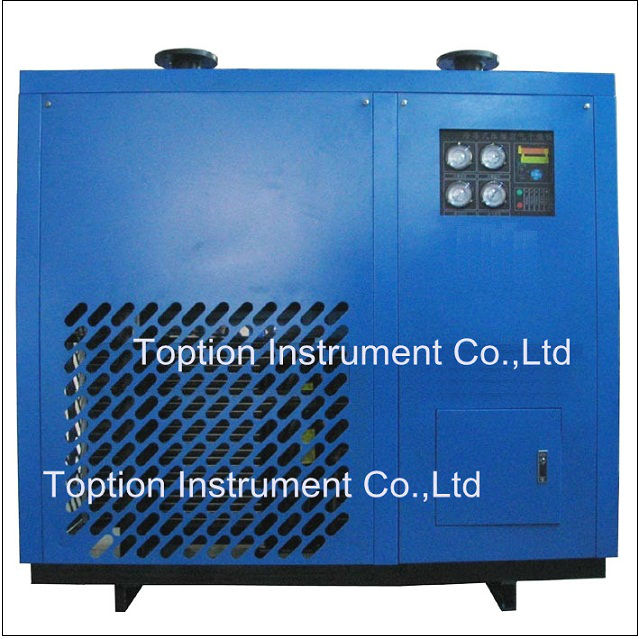

 RD-30A Air Cooling Refrigerated Compressed Air Dryer

Basic specifications of RD-30A Air Cooling Refrigerated Compressed Air Dryer:

1. Air Inlet temperature: ≤45°C

2. Temp dew point: 0°C--8°C

3.Environment temp: 2°C--38°C

4.Refrigerant:R22

5. Air inlet pressure: 0.2-1.0Mpa (high pressure can be customized)

6. Can be customized for special specifications or stainless steel condensation purifier
