combined air compressor with air dryer,air filter,air tank
Feature:
1.The combined screw air compressor integrates the parts including screw compressor,air dryer, high efficiency air filter and air tank, making it convenient for the user to install, use and move.
2.The air dryer and filters efficiently remove moisture, aerosols and dirt particles to protect your investment.
3.It's easy to install,operate and move.And also space-saving.
Technical Parameters:
Model |
| DNA-18LG |
Air Delivery /Working Pressure | m3/min/Bar | 3.2/7 |
3.0/8 | ||
2.7/10 | ||
2.3/13 | ||
Compression stage |
| Single |
Type of cooling |
| Air Cooling |
Exhaust temperature | °C | <Ambient Temperature+15°C |
Oil content of discharged air | ppm | < 3 |
Noise | dB(A) | 65±2 |
Starting method |
| Belt Driven |
Power supply | V/ph/Hz | 380/3/50 or other |
Motor power | KW | 18.5 |
Rotation speed | R/min | 2935 |
Starting method |
| Star Delta Starting |
Cooling air volume | m3/min | 145 |
Dimension | L(mm) | 2110 |
W(mm) | 1150 | |
H(mm) | 1728 | |
Outlet Pipe Diameter | inch | G1 1/2" |
Storage Volume(Dual-pot) | m3 | 0.48 |

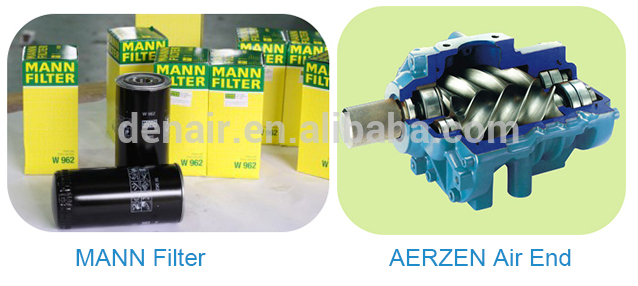

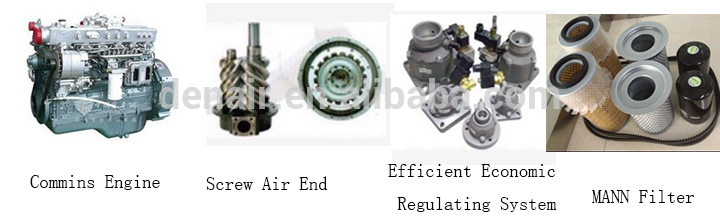

Air End
No vibration and low noise interpret perfectly the genuine made in Germany. Big rotor, low speed of rotation and direct connection.
Rotor
Rotors are asymmetric in profile, Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.
Oil filter
Rotary filters are applied to completely remove the impurities in the lubricating oil, easy to replace and free of oil impregnate.
Motor
First-class motors are adopted, with the level of protection being IP54 and insulation level being F.
Sino-Germany joint venture DENAIR air compressor
Concentrating on silent and energy-saving research and development
Committing to be a good example of manufacturing high quality compressors
1.Quality-The CE-standard quality and ISO9001 certified worldwide , just the reason why zero defects for parts produce,and generally, more than 10 years of working life .
2.Solid reliability- Especially in heavy duty applications, the durable design and proven technology make sure you are always up and running.
3.After-sell service-Professional enginneers available to service machine at home and abroad ,and 24 hours technical support by e-mail, 1 year warranty.
